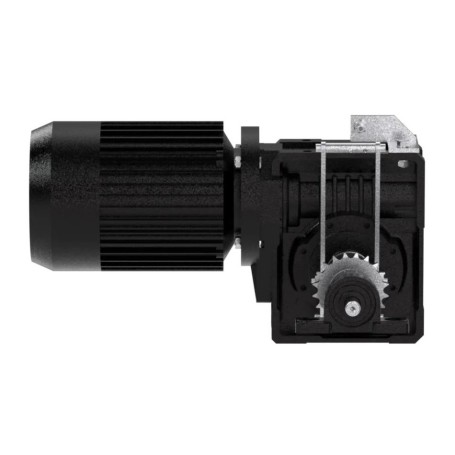

Gearmotor for industrial doors 230/400 Vac 3PH FADINI FIBO 400 LB 2223L

FADINI

Item Number: 2223L

MOD.: FIBO 400 LB



GENERAL DESCRIPTION FIBO 300 LB/FIBO 400 LB SERIES:

FOR INDUSTRIAL DOORS
Electromechanical gearmotor with chain movement
For industrial use

RELIABLE
Gearmotor for applications by transmission with metal chain, specific for industrial sliding doors on rail, with single frame or packing. Coupling in oil bath of the worm screw and the bronze crown, on ball bearings.

ROBUST
Safe thanks to the mechanical clutch. Manual release system for handling in the absence of power supply.



PRODUCT DESCRIPTION FADINI 2223L:

MODEL: FIBO 400 LB
VERSION: 230/400 Vac 50 Hz 3PH | 230/400 Vac 60 Hz 3PH
POWER (kW / HP): 2,2 / 3
REDUCING: 1:56
SPROCKET: Z18 - 3/4"
SPEED: 9 m/min - 50 Hz 1.400 rpm | 11 m/min - 60 Hz 1.700 rpm
DOOR AREA (m²): > 50


Each code includes a gearmotor complete with mechanical clutch, chain pinion and manual outlet system. For this type of gearmotors it is advisable to contact our technical department for further information and limits of use.



SPECIFICATIONS:

Mains power supply (Vac - Hz): 230/400 - 50/60
Power consumption (W): 2800
Current consumption (A): 9,4/5,4
Efficiency (kW - HP): 2,2 - 3
Number of engine revolutions (rpm - Hz): 1.400 - 50 1.700 - 60
Rated torque (Nm - Hz): 840 - 50
Rated gear torque (Nm - Hz): 700 - 60
Sliding speed (m/min - rpm - Hz): 9 - 1.400 - 60
Sliding speed (m/min - rpm - Hz): 11 - 1.700 - 60
Gear ratio: 1/40
Operating temperature (°C): -25 ÷ +80
Limit switch: external
IP rating: 55
Oil Type: 706L
Weight (kg): 52
Frequency of use: intensive use
