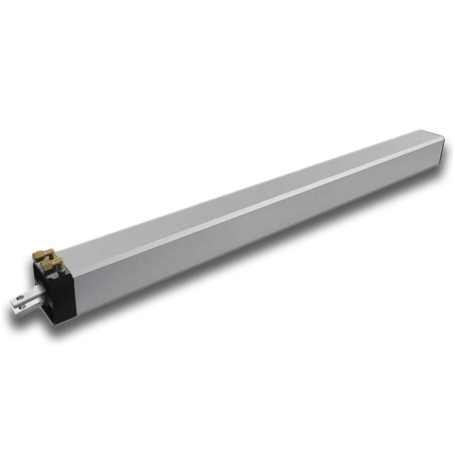

Actuator for swing gates 400mm FADINI MEC 800 SPECIAL 7037L

FADINI

Item Number: 7037L

MOD.: MEC 800 SPECIAL



GENERAL DESCRIPTION MEC 800 SPECIAL SERIES:

For swing gates
Externally mounted hydraulic actuator for separate hydraulic power unit
For industrial use

SOLID
Effective for moving large doors, doors, gates and hatches (even on full surfaces) without limitations in the number of maneuvers.

COMPLETE
Rod stroke up to 1,000 mm available. Hydraulic slowdown (self-braking) in opening / closing (optional). Possibility to install on a door also two pistons thanks to the hydraulic control unit with double tank.

RELIABLE
Each component is of the highest quality and made to withstand atmospheric agents. Unlock with special key on the hydraulic power unit.

TECHNICAL NOTES
- For doors larger than 2 m it is necessary to use the electric lock.
- The hydraulic control unit with P12 pump has a double working speed compared to the corresponding model with P6 pump (recommended version). The speed varies according to the type of MEC 800 SPECIAL hydraulic piston used and the inertia of the leaf.
- For installations on a single leaf with two hydraulic pistons (max rod stroke 400 mm) it is necessary to use the double tank hydraulic power unit.
- It is necessary to use the double tank control unit for the hydraulic pistons stroke 500 - 600 - 700 - 800 - 900 - 1,000 mm.
- With reversible hydraulic power unit (without hydraulic lock) it is necessary to use the electric lock on the gate.



PRODUCT DESCRIPTION FADINI 7037L:

STEM STROKE (mm): 400
BRAKE BRAKE SLOWDOWN: NOT AVAILABLE
MAX LENGTH SINGLE DOOR (m): 4
MAX SINGLE LEAF WEIGHT (kg): 700



SPECIFICATIONS:

Rod diameter (mm): 22
Piston stroke (mm): 400
Force (N): 0 ÷ 7.000 N
