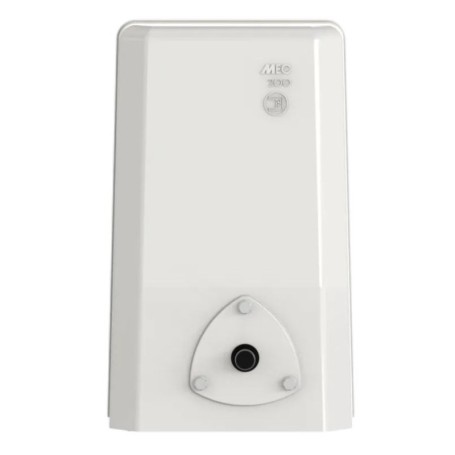

Gearmotor for sliding gates 230 Vac 1PH FADINI MEC 200 7154L

FADINI

Item Number: 7154L

MOD.: MEC 200



GENERAL DESCRIPTION MEC 200 SERIES:

For sliding gates
Electromechanical gear motor
For industrial use

STRONG
230 Vac and 400 Vac gearmotor, oil bath coupling of the worm screw and the bronze crown, on ball bearings.

RELIABLE
Aluminum structure and bonnet for a total guarantee over time.

SURE
Mechanical clutch for force regulation; Discs lubricated with fluid grease to improve efficiency.

ROBUST AND COMPACT
Base in die-cast aluminium.

VERSATILE
Complete range of models, with different types of electric motors, also available with ventilated motor and electric brake. Depending on the arrangement of the rack on the gate, you can have models with horizontal or vertical pinion. The control controller can be housed inside the MEC 200 or with its own outdoor polycarbonate container.

TESTED AND CERTIFIED
CE marking with type tests.



PRODUCT DESCRIPTION FADINI 7154L:

VERSION: 230 Vac 1PH v. reversible
POWER (kW / HP): 0,37 / 0,5
INCORPORATED: not available
VENTILATED MOTOR WITH ELECTRIC BRAKE: not available
MAX WEIGHT (kg): 1.200


Each code includes an electromechanical gearmotor with mechanical clutch, rack pinion, floor anchor plate with screws, mechanical limit switch, pair of limit switches, release key. Control programmer and ventilated motor with electric brake are included exclusively for the codes indicated in the table.



SPECIFICATIONS:

Mains power supply (Vac - Hz): 230 - 50
Power consumption (W): 510
Current consumption (A): 2,4
Efficiency (kW): 0,37
Number of engine revolutions (rpm): 1380
Capacitor (μF): 20
Rated reducing torque (Nm): 40
Sliding speed (m/min): 10
Gear ratio: 1/32
Operating temperature (°C): -25 ÷ +80
Limit switch: mechanical
IP rating: 55
Oil Type: 706L
Weight (kg): 19
Frequency of use: very intensive use
