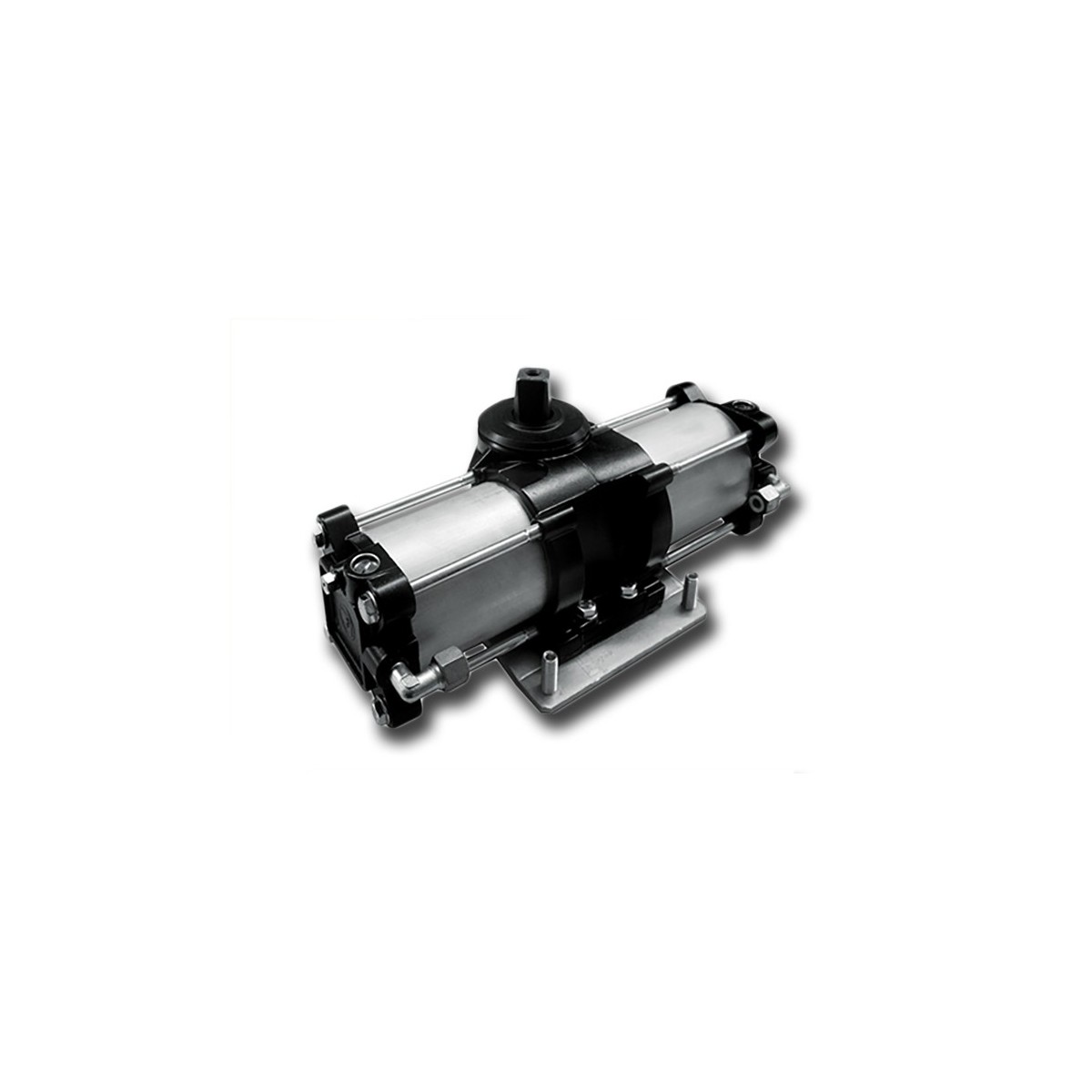

Underground jack for swing gates FADINI DRIVE 700 711L

FADINI

Item Number: 711L

MOD.: DRIVE 700



GENERAL DESCRIPTION DRIVE 700 SERIES:

For swing gates
Hydraulic actuator with underground mounting with separate hydraulic control unit
For residential and industrial use

STRONG AND EFFICIENT
Hydraulic power unit separated from the hydraulic jack housed inside the aluminum foundation case, with steel anchor plate treated with electrolytic galvanizing.

HYDRAULIC
Wide range of versions to meet any type of installation: reversible without hydraulic lock, with bidirectional hydraulic lock (irreversible), with self-braking hydraulic slowdown in opening and closing. Shaft rotation of 110° and 175°. Anti-crushing safety guaranteed by the by-pass valves on the control unit. Safe and silent movement.



PRODUCT DESCRIPTION FADINI 711L:

ROTATION: 110°
BRAKE BRAKE RETARDING: standard
MAX LENGTH SINGLE DOOR (m): 4
MAX SINGLE LEAF WEIGHT (kg): 700


Each code includes a hydraulic jack; The foundation fund is not included. For doors larger than 2 m it is necessary to use the electric lock.



SPECIFICATIONS:

Mains power supply (Vac - Hz): 230 - 50
Power consumption (W): 400
Current consumption (A): 2
Maximum rated torque (Nm): 235
Maximum pressure (atm): 30
Open/close time (s): ~ 23 [110°]
Operating temperature (°C): -20 ÷ +80
IP rating: 67
Oil Type: 708L
Weight jack with accessories (kg): 16
Frequency of use: semi-intensive use
