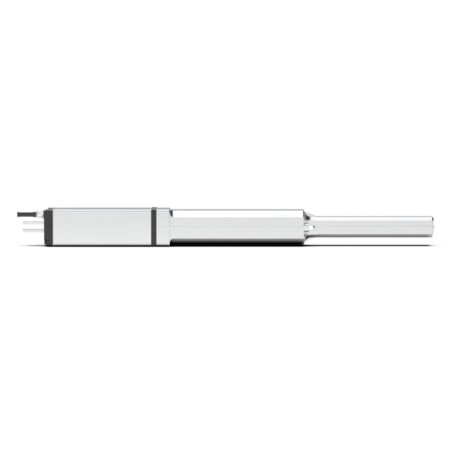

Actuator for swing gates FADINI HINDI 880 SPRINT 889L

FADINI

Item Number: 889L

MOD.: HINDI 880 SPRINT



GENERAL DESCRIPTION HINDI 880 SPRINT SERIES:

For swing gates
Externally mounted hydraulic actuator
For residential and collective use

HYDRAULIC
Anti-crushing safety guaranteed by the pair of by-pass valves on the actuator. Convenient unlock with special key.

ROBUST
Structure completely in aluminum. Easy to install and adjust. Available in kit complete with all accessories.

VERSATILE
Reversible models, without hydraulic lock, with hydraulic lock in closing or with bidirectional hydraulic lock.



PRODUCT DESCRIPTION FADINI 889L:

VERSION: 230 Vac 1PH
POWER (kW / HP): 0,18 / 0,25
HYDRAULIC BLOCK: bidirectional
MAX LENGTH SINGLE LEAF (m): 2,3
MAX WEIGHT SINGLE DOOR (kg): 400


Each code includes a hydraulic actuator complete with rear and front solder bracket, power cable and an unlock key. The hood of the HINDI 880 SPRINT is left or right. For doors larger than 2 m it is necessary to use the electric lock. In the version without lock (reversible) use the electric lock.



SPECIFICATIONS:

Mains power supply (Vac - Hz): 230 - 50
Power consumption (W): 250
Efficiency (W): 180
Max absorbed current (A): 1,2
Rod Stroke (mm): 235
Rod diameter (mm): 16
Linear speed opening/closing (mm/s): ~ 16
Opening force (N): 0 ÷ 5.100
Closing force (N): 0 ÷ 6.200
Operating temperature (°C): -25 ÷ +80
Oil Type: 708L
IP rating: 67
Frequency of use: intensive use
Weight (kg): 9.5
