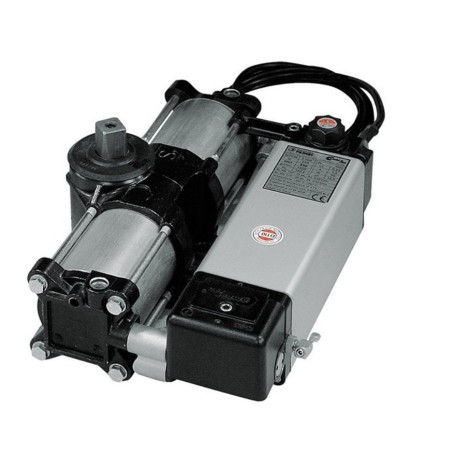

Underground actuator right for swing gates FADINI COMBI 740 175° 769N3DXL

FADINI

Item Number: 769N3DXL

MOD.: COMBI 740 175°



GENERAL DESCRIPTION COMBI 740 175° SERIES:

FOR SWING GATES
Hydraulic actuator with underground mounting
For residential and industrial use

DISCREET, STRONG AND INVISIBLE
Compact hydraulic actuator composed of hydraulic power unit and integrated jack, housed inside the foundation case in treated steel (3 mm thick with electrolytic galvanizing), to ensure high resistance to corrosion. Foundation case available in AISI 304 stainless steel. It does not require special maintenance.

HYDRAULIC
Wide range of versions (right and left) to meet any type of installation: reversible without hydraulic lock, with bidirectional hydraulic lock (irreversible), with self-braking hydraulic slowdown in opening and closing and with flow regulator. Anti-crushing safety guaranteed by the by-pass valves on the actuator. Shaft rotation up to 110° or up to 175°; Safe and silent movement.

SURE
Emergency release control in pressed steel, easy to operate both from the inside and from the outside by means of a special key with ergonomic handle.

TESTED AND CERTIFIED
CE marking with type tests.



PRODUCT DESCRIPTION FADINI 769N3DXL:

VERSION: right
BIDIRECTIONAL HYDRAULIC BLOCK (irreversible): not available
BRAKE BRAKE SLOWDOWN: NOT AVAILABLE
FLOW REGULATOR: not available
MAX LENGTH SINGLE DOOR (m): 3
MAX SINGLE LEAF WEIGHT (kg): 700


Each code includes a hydraulic actuator complete with power cable. For codes that contain the letter "N" (without hydraulic lock - reversible) the use of the electric lock is required. For doors larger than 2 m it is necessary to use the electric lock.



SPECIFICATIONS:

Mains power supply (Vac - Hz): 230 - 50
Power consumption (W): 250
Current consumption (A): 1,2
Power output (kW / HP): 0,18 / 0,25
Working torque (Nm): 250-400
Operating temperature (°C): -20 ÷ +80
IP rating: 67
Oil Type: 708L
