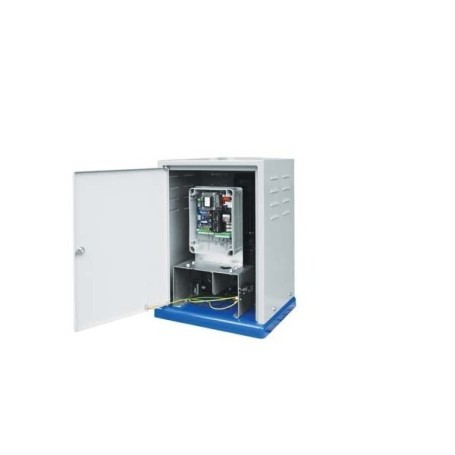

Control programmer FADINI ELPRO 37 HP 7185L
Lowest price within 30 days before promotion. €372.83
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...Read more -
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...Read more
-
Summer Break ugateshop.it: what to know about shipping, support, and discounts
We’re also taking a short break in August, but our shop remains online at all times. In this article, you’ll find all...Read more
FADINI
Item Number: 7185L
MOD.: ELPRO 37 HP
PRODUCT DESCRIPTION FADINI 7185L:
COMPATIBILITY
Electronic control programmer with power contactors and electronic brake for motors for sliding gates and motors with or without limit switches (max 3 HP single-phase or 5 HP three-phase).
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian and pre-flashing.
MAIN FUNCTIONS
Intuitive adjustments via trimmer and dip-switch: electric lock power supply, predisposition for external clock, electronic brake, automation status signaling. Self-test photocells (DSA), self-test safety coasts (DACS), traffic light preparation up to three lights. Single-phase and three-phase power supply. Container dimensions 210x295x110 mm. Protection radio IP 64. Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH board power supply (Vac - Hz): 230 - 50/60
Power supply 3PH card (Vac - Hz): 400 - 50/60
Max motor power (W): 2.200 1PH - 3.650 3PH
Courtesy light output (Vac): Relay 12
Photocell/selector/radio receiver output (Vac - mA): 24 - 500
Indicator light output (Vac - W): 24 - 3
Output for DSA control (Vac - mA): 24 - 150
Flashing output (Vac - W): 230 - 25
Working Time(s): 0 - 120
Pause Time(s): 1 - 220
Closing door delay time (s): -
Pedestrian opening time (s): 1 - 45
Item Number: 7185L
MOD.: ELPRO 37 HP
PRODUCT DESCRIPTION FADINI 7185L:
COMPATIBILITY
Electronic control programmer with power contactors and electronic brake for motors for sliding gates and motors with or without limit switches (max 3 HP single-phase or 5 HP three-phase).
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian and pre-flashing.
MAIN FUNCTIONS
Intuitive adjustments via trimmer and dip-switch: electric lock power supply, predisposition for external clock, electronic brake, automation status signaling. Self-test photocells (DSA), self-test safety coasts (DACS), traffic light preparation up to three lights. Single-phase and three-phase power supply. Container dimensions 210x295x110 mm. Protection radio IP 64. Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH board power supply (Vac - Hz): 230 - 50/60
Power supply 3PH card (Vac - Hz): 400 - 50/60
Max motor power (W): 2.200 1PH - 3.650 3PH
Courtesy light output (Vac): Relay 12
Photocell/selector/radio receiver output (Vac - mA): 24 - 500
Indicator light output (Vac - W): 24 - 3
Output for DSA control (Vac - mA): 24 - 150
Flashing output (Vac - W): 230 - 25
Working Time(s): 0 - 120
Pause Time(s): 1 - 220
Closing door delay time (s): -
Pedestrian opening time (s): 1 - 45
