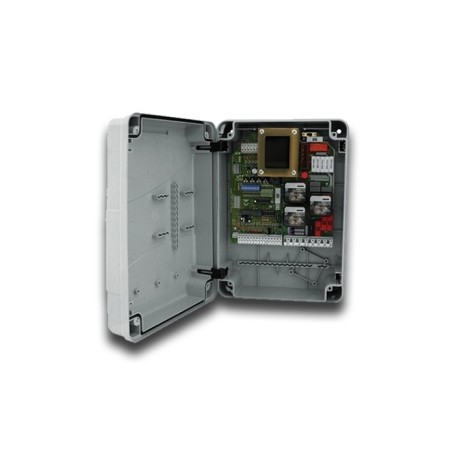

Control programmer for swing gates FADINI ELPRO 37 DB 7183L
Lowest price within 30 days before promotion. €302.00
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...
Read more
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...
Read more
Holiday shipping: what you need to know and why we have chosen to thank you
During the Christmas holidays, shipments may be delayed due to public holidays and logistical difficulties...
Read more
FADINI
Item Number: 7183L
MOD.: ELPRO 37 DB
PRODUCT DESCRIPTION FADINI 7183L:
COMPATIBILITY
Electronic control programmer for motors for swing gates with two leaves (max 1.5 HP three-phase or 1 HP single-phase).
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian, water hammer and pre-flashing.
MAIN FUNCTIONS
Intuitive adjustments via trimmer and dip-switch: electric lock power supply, predisposition for external clock, electronic brake, automation status signaling. Self-test photocells (DSA), self-test safety coasts (DACS), traffic light preparation up to three lights. Single-phase and three-phase power supply. Container dimensions 210x295x110 mm. Protection radio IP 64. Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH board power supply (Vac - Hz): 230 - 50/60
Power supply 3PH card (Vac - Hz): 400 - 50/60
Max motor power (W): 750 1PH - 1.200 3PH
Courtesy light output (Vac - W
Item Number: 7183L
MOD.: ELPRO 37 DB
PRODUCT DESCRIPTION FADINI 7183L:
COMPATIBILITY
Electronic control programmer for motors for swing gates with two leaves (max 1.5 HP three-phase or 1 HP single-phase).
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian, water hammer and pre-flashing.
MAIN FUNCTIONS
Intuitive adjustments via trimmer and dip-switch: electric lock power supply, predisposition for external clock, electronic brake, automation status signaling. Self-test photocells (DSA), self-test safety coasts (DACS), traffic light preparation up to three lights. Single-phase and three-phase power supply. Container dimensions 210x295x110 mm. Protection radio IP 64. Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH board power supply (Vac - Hz): 230 - 50/60
Power supply 3PH card (Vac - Hz): 400 - 50/60
Max motor power (W): 750 1PH - 1.200 3PH
Courtesy light output (Vac - W
