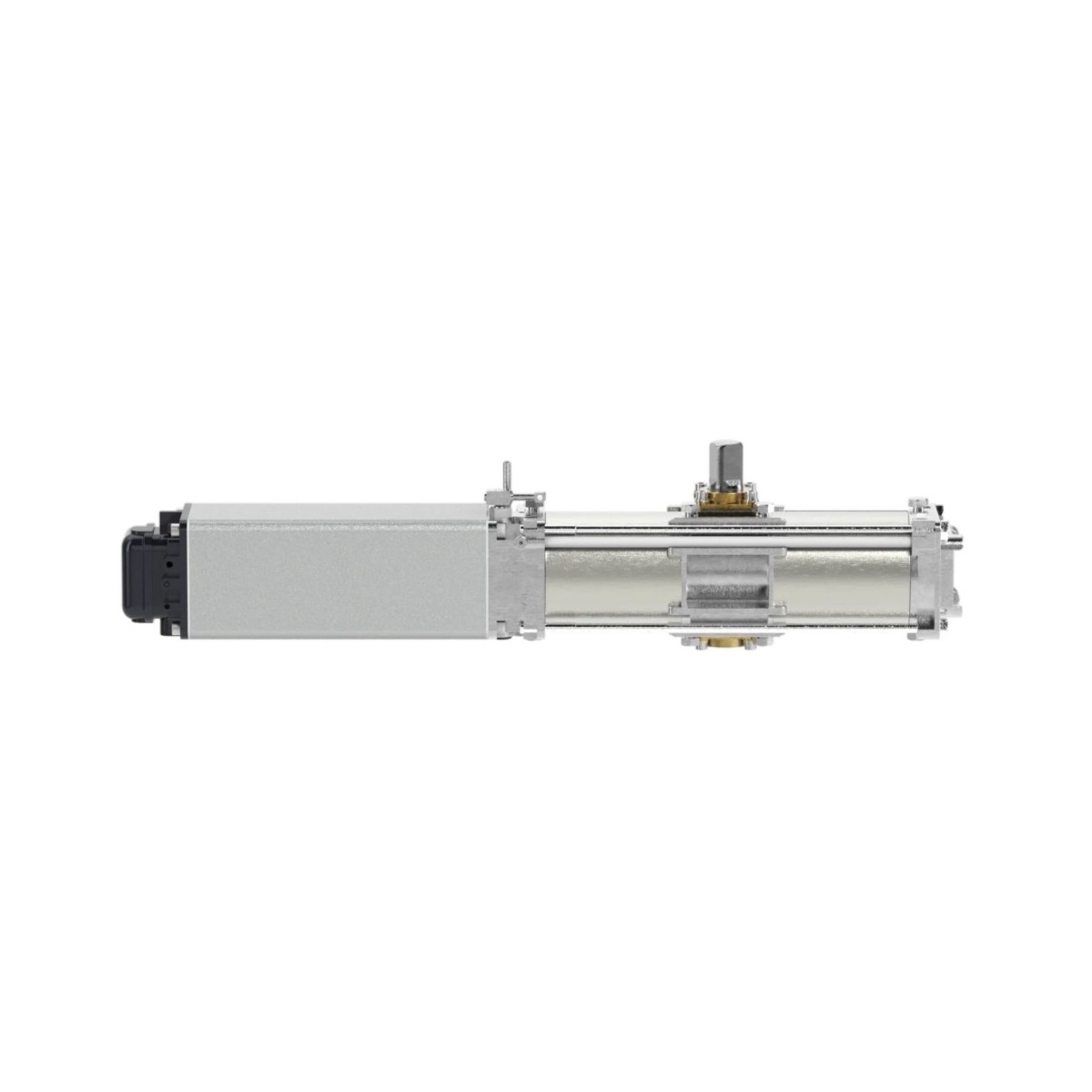

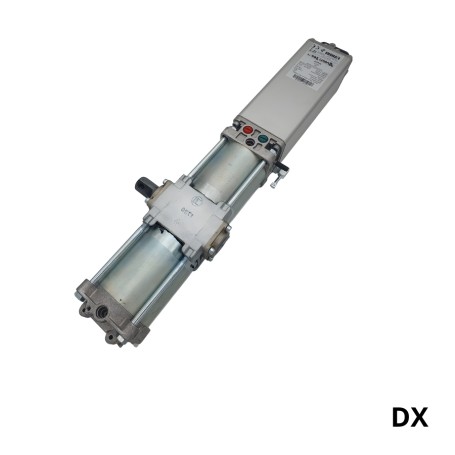

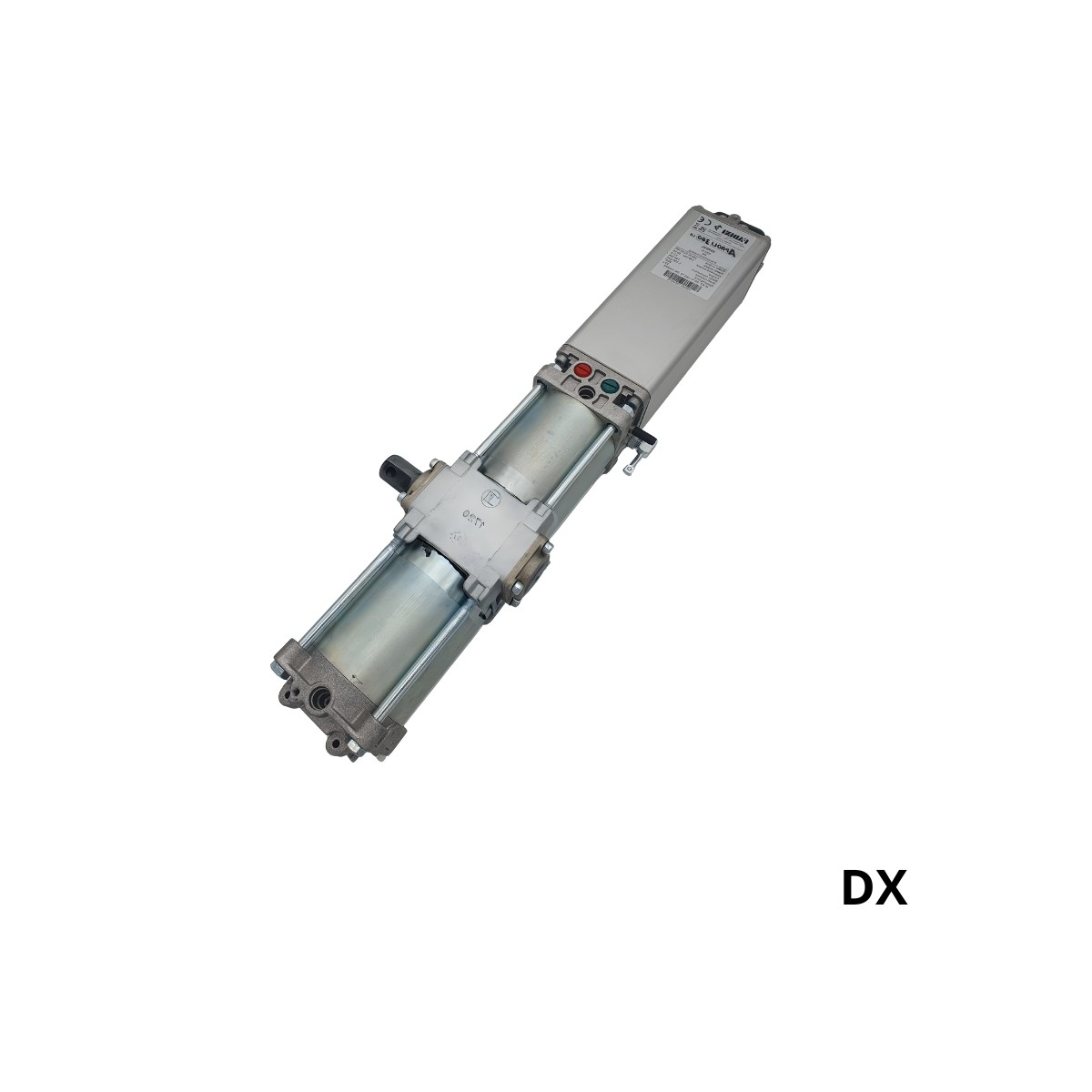

FADINI 394DXL – Right Hydraulic Actuator for Folding Doors APROLI 380 LB

The FADINI 394DXL is the right-hand hydraulic actuator of the APROLI 380 LB series, specifically designed for the automation of double-leaf industrial folding doors. This range was created to ensure maximum reliability and resistance in the industrial sector, where continuity of service and power are essential.

The hydraulic structure ensures a smooth and constant movement, managed by regulation valves and by-pass valves that perform an anti-crushing function, significantly increasing the safety of the system. The manual lever release, integrated in the actuator, allows movement even in the absence of power.

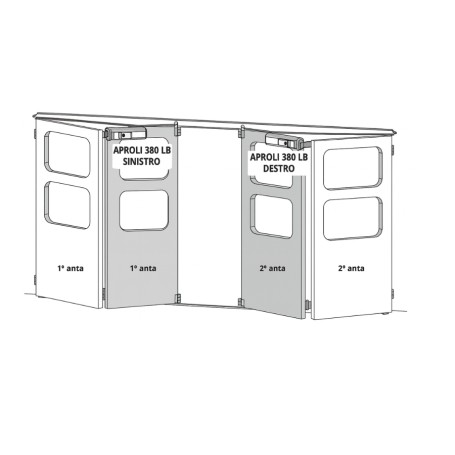

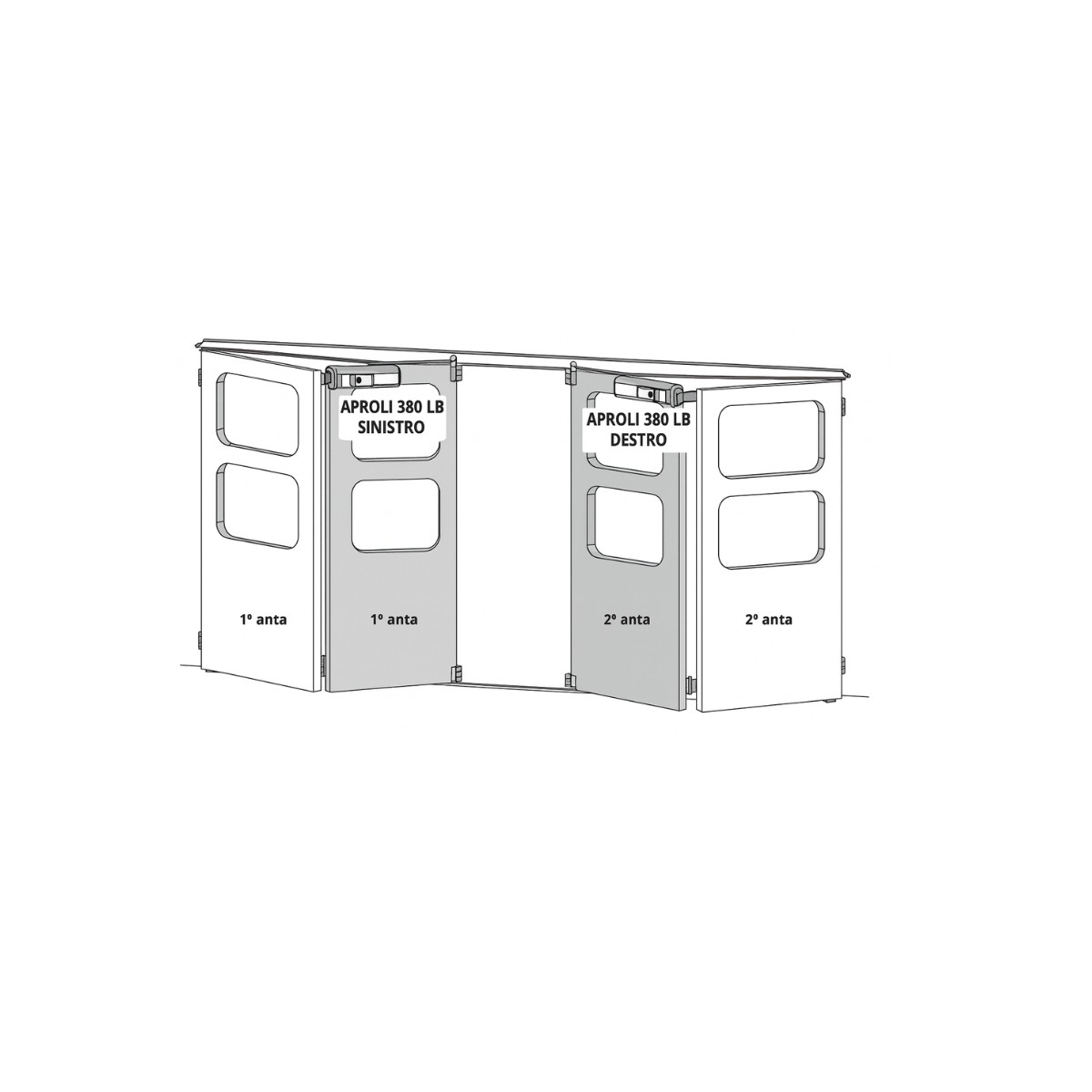

The 394DXL is designed to work in tandem with the left-hand version, forming a complete system for industrial folding doors. The entire automation system is optimally controlled via the series-specific ELPRO 27 FADINI control unit.

PRODUCT DATA – FADINI 394DXL (RIGHT VERSION):

• Version: right

• Hydraulic Lock: Bi-Directional

• Maximum weight of 2-leaf door: 250 kg

TECHNICAL FEATURES:

• Power supply: 230 Vac – 50 Hz

• Power consumption: 250 W

• Current consumption: 1.2 A

• Power output: 0.24 kW – 0.33 HP

• Opening/closing time: ~23 s

• Maximum torque rating: 196.2 Nm

• Operating temperature: -20°C ÷ +80°C

• Degree of protection: IP67

• Oil Type: 708L

• Actuator weight: 10.5 kg

• Shaft rotation: max 205°

• Frequency of use: intensive
