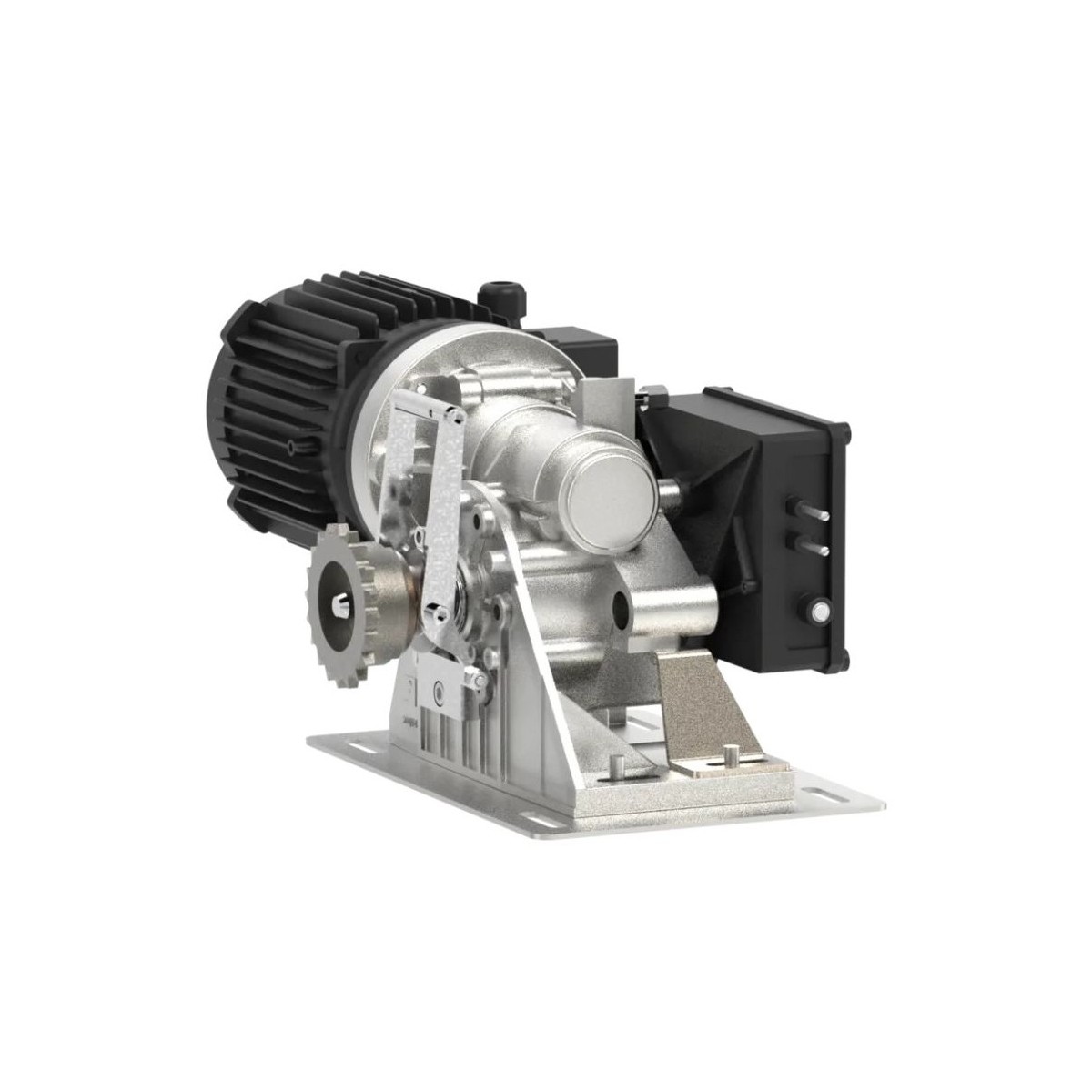

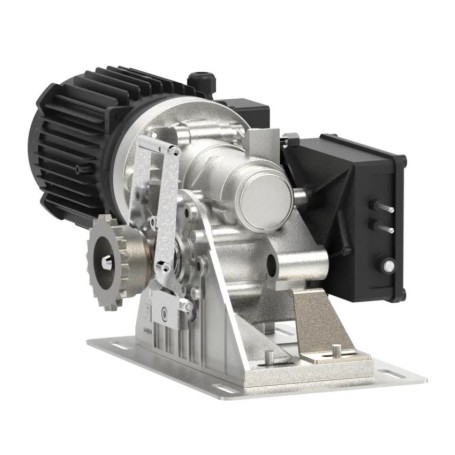

Gearmotor for doors and gates 230/400 Vac 3PH FADINI MEC 200 LB 2058L

For sectional doors, folding doors and industrial doors. Electromechanical gear motor with chain movement. For industrial use

IMPORTANT

The product code does not include the limit switch (code 2059L) which, if necessary, must be purchased together with the motor because it is assembled directly at the factory. It cannot be installed later.

ROBUST

230 Vac and 400 Vac gearmotor, oil-immersed coupling of the worm screw and bronze crown, on ball bearings.

SIMPLE
Adjustment of the force with mechanical clutch and of the limit switch positions both in opening and closing.

SURE
Release lever control, complete with wire rope and key for resetting the control. Wide range of accessories available for complete installation.



PRODUCT DESCRIPTION FADINI 2058L:

VERSION: 230/400 Vac 3PH
POWER (kW/HP): 1.1/1.5
VENTILATED MOTOR WITH ELECTRIC BRAKE: not available
DOOR AREA (m²): 50


Each part number includes an electromechanical gear motor with 1/2" Z20 pinion, built-in clutch and rope release. The limit switch is not standard, but available as an accessory (code 2059L).



SPECIFICATIONS:

Mains power supply (Vac - Hz): 230/400 - 50
Power consumption (W): 1500
Current consumption (A): 5.1/3
Output power (kW): 1.1
Rated Gearbox Torque (Nm): 110
Reducer ratio: 1/32
Operating Temperature(°C): -20 ÷ +80
Scroll speed (m/min): 9.6 | Z20 1/2"
Limit Switch: Mechanical
IP rating: 55
Lubrication Type: 706L
Weight (kg): 25
Door area (m²): 50
Frequency of use: Heavy use
