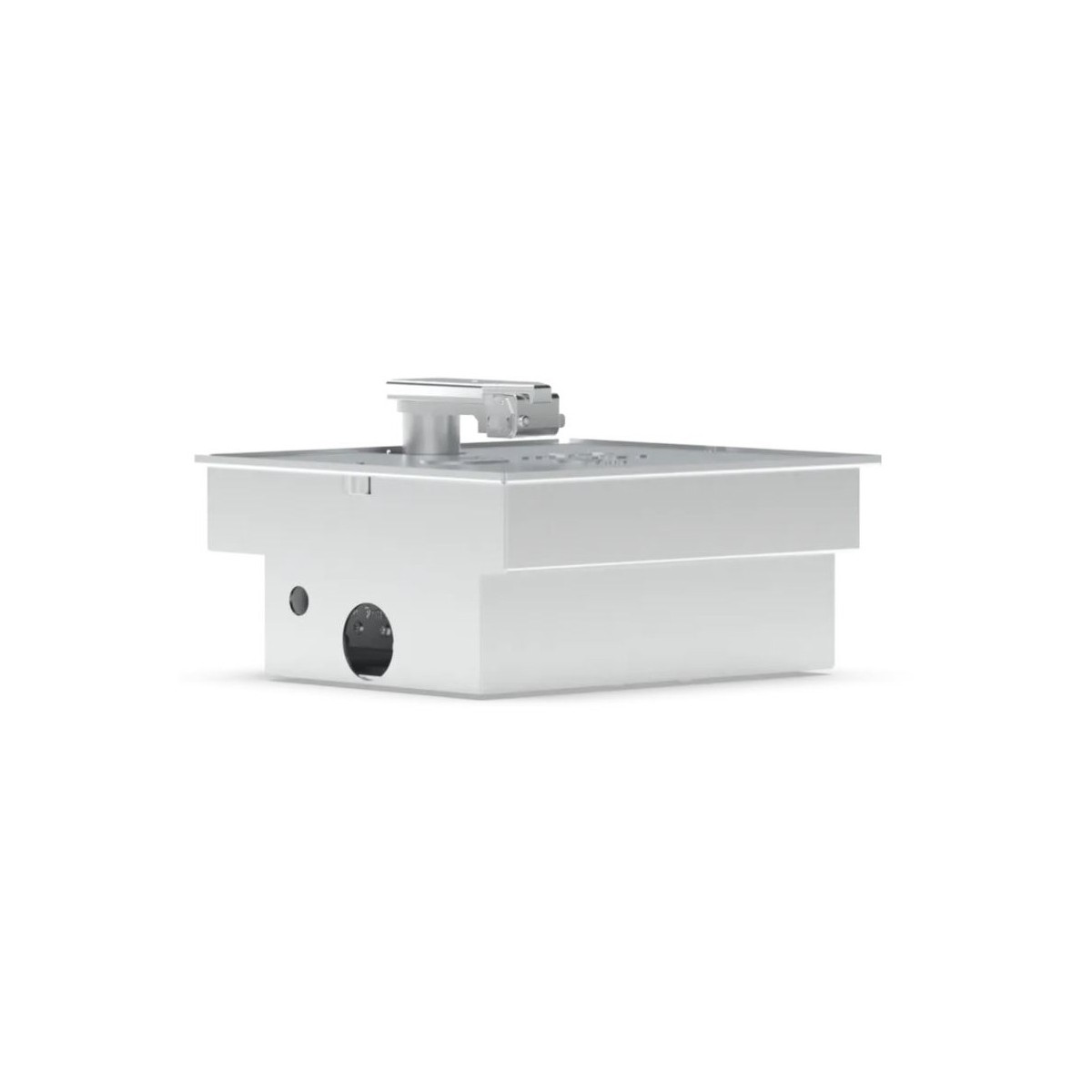

Underground actuator for swing gates FADINI COMBI 787 78789N3L
Lowest price within 30 days before promotion. €631.50
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...Read more -
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...Read more
-
Summer Break ugateshop.it: what to know about shipping, support, and discounts
We’re also taking a short break in August, but our shop remains online at all times. In this article, you’ll find all...Read more
FADINI
Item Number: 78789N3L
MOD.: COMBI 787
GENERAL DESCRIPTION COMBI 787 SERIES:
For swing gates
Hydraulic actuator with underground mounting
For residential and industrial use
DISCREET, STRONG AND INVISIBLE
Compact hydraulic actuator composed of hydraulic power unit and integrated jack, housed inside the self-supporting foundation body in treated steel (5 mm thick with electrolytic galvanizing), to ensure high resistance to corrosion. Foundation case available in AISI 304 stainless steel. It is possible to fix the mechanical stops, adjustable in closing and opening, directly inside the case. The actuator can be installed or removed without removing the gate leaf. It does not require special maintenance.
HYDRAULIC
Wide range of versions to meet any type of installation: reversible without hydraulic lock, with bidirectional hydraulic lock (irreversible), with self-braking hydraulic slowdown in opening and closing, with flow regulator. Anti-crushing safety guaranteed by the by-pass valves on the actuator. Shaft rotation up to 110°; Safe and silent movement.
SURE
Emergency release control in pressed steel, easy to operate both from the inside and from the outside, through a special key with ergonomic handle.
PRODUCT DESCRIPTION FADINI 78789N3L:
BIDIRECTIONAL HYDRAULIC BLOCK (irreversible): not available
BRAKE BRAKE RETARDING: standard
FLOW REGULATOR: standard
MAX LENGTH SINGLE LEAF (m): 6
MAX WEIGHT SINGLE DOOR (kg): 1.000
MAX SINGLE LEAF WEIGHT (kg): 700
Each code includes a hydraulic actuator complete with power cable. For codes that contain the letter "N" (without hydraulic lock - reversible) it is necessary to use the electric lock. For doors larger than 2 m it is necessary to use the electric lock.
SPECIFICATIONS:
Mains power supply (Vac - Hz): 230 - 50
Power consumption (W): 330
Current consumption (A): 1,8
Power output (kW / HP): 0,24 / 0,33
Working torque (Nm): 250-400
Operating temperature (°C): -20 ÷ +80
IP rating: 67
Oil Type: 708L
Open/close time (s): ~ 23 [110°]
Weight with foundation case (kg): 34
Frequency of use: intensive use
Item Number: 78789N3L
MOD.: COMBI 787
GENERAL DESCRIPTION COMBI 787 SERIES:
For swing gates
Hydraulic actuator with underground mounting
For residential and industrial use
DISCREET, STRONG AND INVISIBLE
Compact hydraulic actuator composed of hydraulic power unit and integrated jack, housed inside the self-supporting foundation body in treated steel (5 mm thick with electrolytic galvanizing), to ensure high resistance to corrosion. Foundation case available in AISI 304 stainless steel. It is possible to fix the mechanical stops, adjustable in closing and opening, directly inside the case. The actuator can be installed or removed without removing the gate leaf. It does not require special maintenance.
HYDRAULIC
Wide range of versions to meet any type of installation: reversible without hydraulic lock, with bidirectional hydraulic lock (irreversible), with self-braking hydraulic slowdown in opening and closing, with flow regulator. Anti-crushing safety guaranteed by the by-pass valves on the actuator. Shaft rotation up to 110°; Safe and silent movement.
SURE
Emergency release control in pressed steel, easy to operate both from the inside and from the outside, through a special key with ergonomic handle.
PRODUCT DESCRIPTION FADINI 78789N3L:
BIDIRECTIONAL HYDRAULIC BLOCK (irreversible): not available
BRAKE BRAKE RETARDING: standard
FLOW REGULATOR: standard
MAX LENGTH SINGLE LEAF (m): 6
MAX WEIGHT SINGLE DOOR (kg): 1.000
MAX SINGLE LEAF WEIGHT (kg): 700
Each code includes a hydraulic actuator complete with power cable. For codes that contain the letter "N" (without hydraulic lock - reversible) it is necessary to use the electric lock. For doors larger than 2 m it is necessary to use the electric lock.
SPECIFICATIONS:
Mains power supply (Vac - Hz): 230 - 50
Power consumption (W): 330
Current consumption (A): 1,8
Power output (kW / HP): 0,24 / 0,33
Working torque (Nm): 250-400
Operating temperature (°C): -20 ÷ +80
IP rating: 67
Oil Type: 708L
Open/close time (s): ~ 23 [110°]
Weight with foundation case (kg): 34
Frequency of use: intensive use
