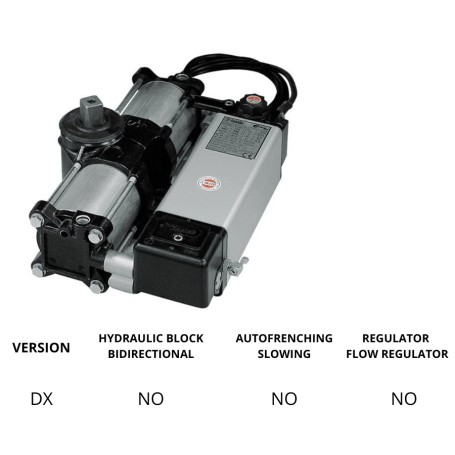

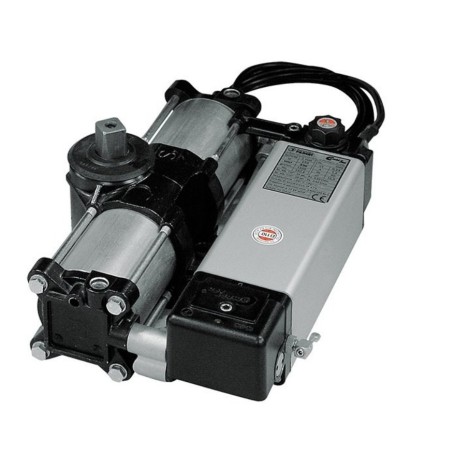

FADINI 767N3DXL COMBI 740 110° - Hydraulic Actuator for Swing Gates RIGHT

The FADINI 767N3DXL hydraulic actuator, belonging to the COMBI 740 110° series, is the ideal solution for automating medium-sized swing gates, both in residential and industrial settings. Thanks to its underground installation, it guarantees discreet aesthetics and quiet operation.

Main features

• Robustness and Durability: Constructed from high-quality materials, such as electrolytically galvanized steel, the FADINI actuator offers excellent corrosion and weather resistance.
• Safety: Equipped with an easy-to-operate emergency release system, it guarantees maximum safety in every situation.
• Versatility: Available in different versions, it adapts to any type of installation.
• Performance: It ensures a smooth and silent movement of the gate, thanks to hydraulic technology.
• Ease of Installation: It does not require special maintenance and is easy to install.

Technical Specifications

• Model: COMBI 740 110°
• SKU: 767N3DXL
• Version: Right
• Hydraulic Lock: Bi-directional (irreversible) - Not provided
• Self-braking: Slowdown - Not provided
• Flow Controller: Not provided
• Maximum shaft rotation: 110°
• Maximum Single Leaf Length: 3 meters
• Maximum Single Leaf Weight: 700 kg

Advantages

• Discreet and Elegant: It integrates perfectly into any context.
• Reliable & Durable: It ensures optimal operation over time.
• Sure: Protects people and property thanks to the emergency release system.
• Easy to Use: Simple to install and configure.

Applications

Ideal for automating swing gates in private homes, condominiums and small businesses.

• Mains power supply (Vac - Hz): 230 - 50
• Power consumption (W): 250
• Current consumption (A): 1.2
• Power output (kW / HP): 0.18 / 0.25
• Working torque (Nm): 250-400
• Operating Temperature (°C): -20 ÷ +80
• IP rating: 67
• Oil Type: 708L
