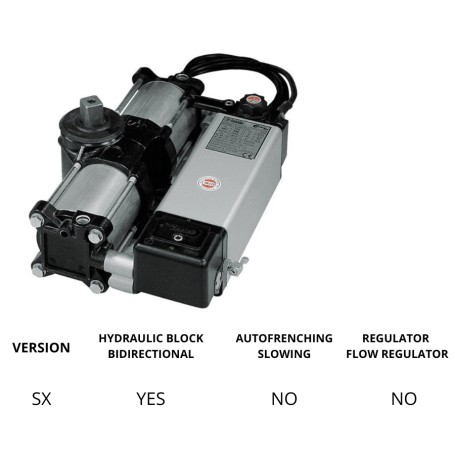

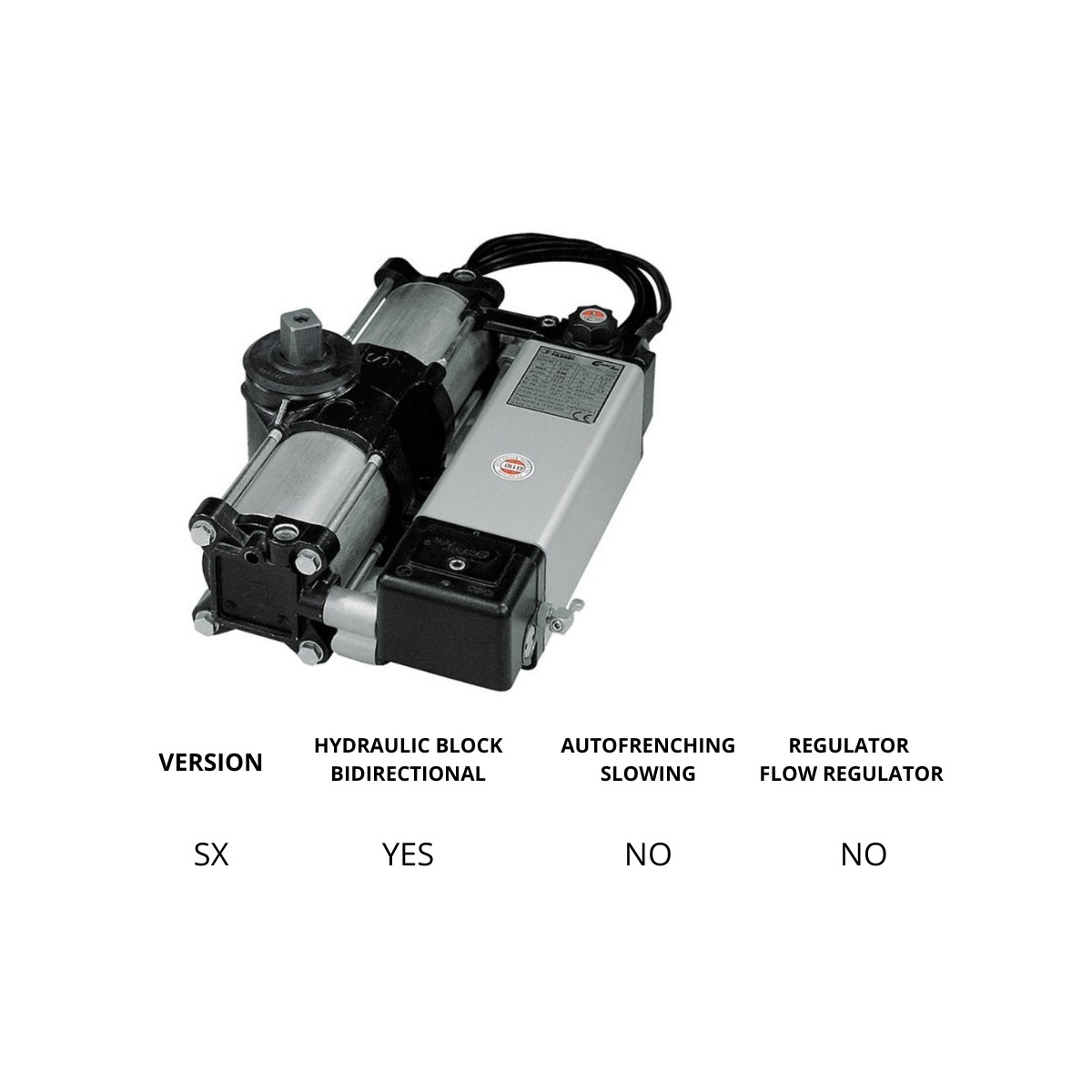

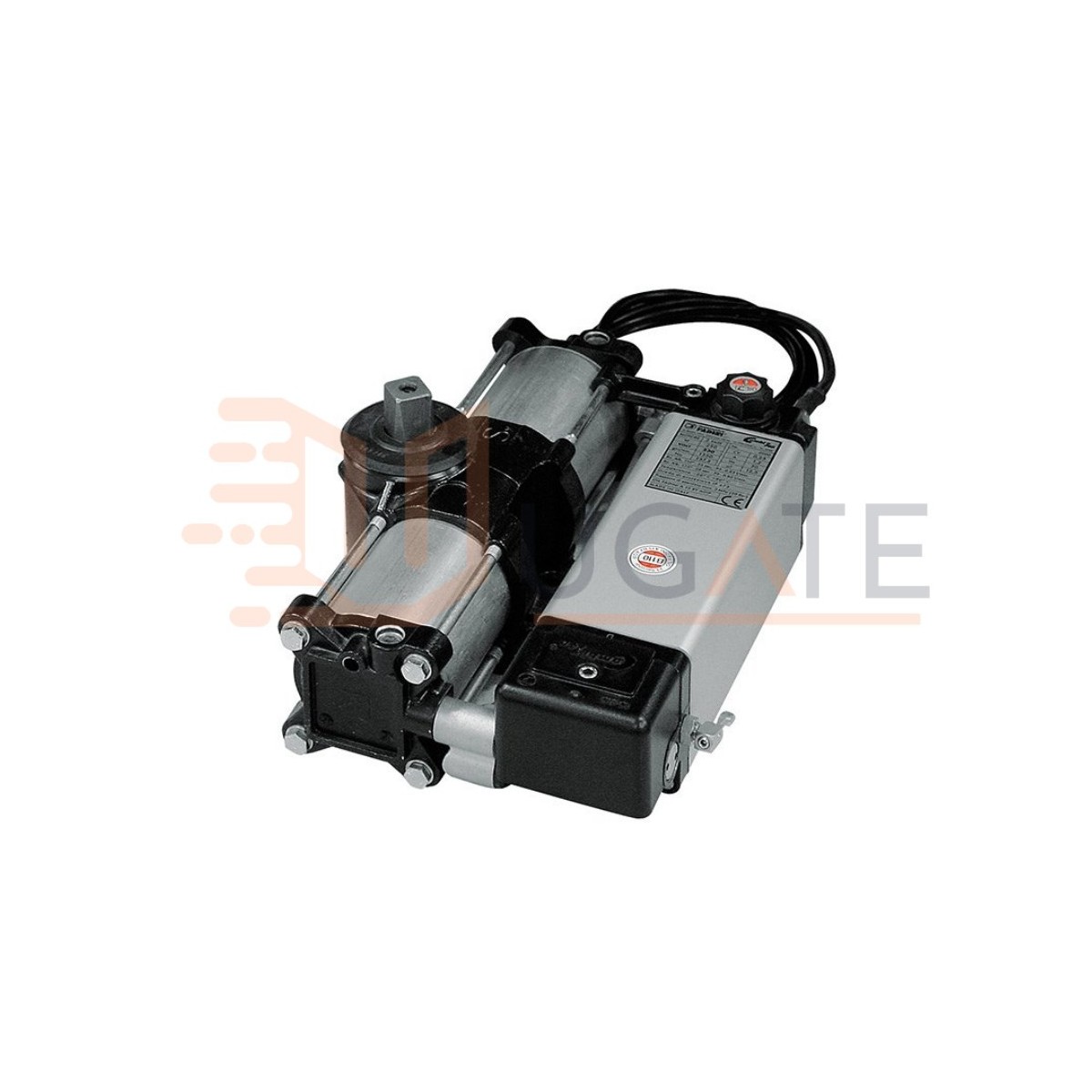

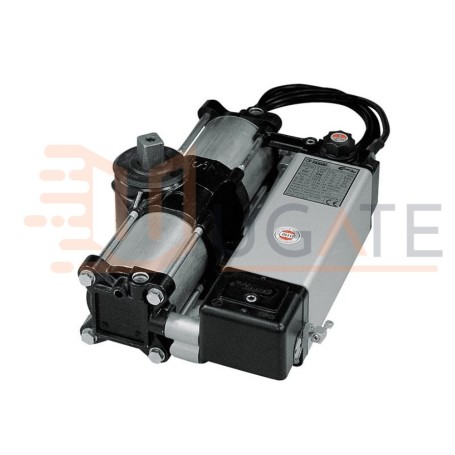

FADINI 7677BB3SXL COMBI 740 110° - Hydraulic Actuator for Swing Gates LEFT
Underground operator, maximum leaf length 3 m and weight 700 kg, with two-way hydraulic lock - LEFT
Lowest price within 30 days before promotion. €496.50
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Automation and renovation: the future is at EDIL EXPO ROME 2025!
Discover how automated shutters, energy efficiency and renovation bonuses can transform your home or building...Read more -
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...Read more
The 7677BB3SXL FADINI hydraulic actuator, belonging to the COMBI 740 110° series, is the ideal solution for automating medium-sized swing gates, both in residential and industrial settings. Thanks to its underground installation, it guarantees discreet aesthetics and quiet operation.
Main features
- Robustness and Durability: Constructed from high-quality materials, such as electrolytically galvanized steel, the FADINI actuator offers excellent corrosion and weather resistance.
- Safety: Equipped with an easy-to-operate emergency release system, it guarantees maximum safety in every situation.
- Versatility: Available in different versions, it adapts to any type of installation.
- Performance: It ensures a smooth and silent movement of the gate, thanks to hydraulic technology.
- Ease of Installation: It does not require special maintenance and is easy to install.
Technical Specifications
- Model: COMBI 740 110°
- SKU: 7677BB3SXL
- Version: Left
- Hydraulic Lock: Bi-directional (irreversible) - Standard
- Self-braking: Slowdown - Not provided
- Flow Controller: Not provided
- Maximum shaft rotation: 110°
- Maximum Single Leaf Length: 3 meters
- Maximum Single Leaf Weight: 700 kg
Advantages
- Discreet and Elegant: It integrates perfectly into any context.
- Reliable & Durable: It ensures optimal operation over time.
- Sure: Protects people and property thanks to the emergency release system.
- Easy to Use: Simple to install and configure.
- Hydraulic Block Standard: It guarantees maximum safety and prevents accidental opening of the gate.
Applications
Ideal for automating swing gates in private homes, condominiums and small businesses.
Ideal for automating swing gates in private homes, condominiums and small businesses.
Each part number includes a hydraulic actuator complete with electrical power cable. For codes containing the letter "N" (without hydraulic lock - reversible) the use of the electric lock is required. For leaves longer than 2 m, the use of an electric lock is required.Technical Information:
- Mains power supply (Vac - Hz): 230 - 50
- Power consumption (W): 250
- Current consumption (A): 1.2
- Power output (kW / HP): 0.18 / 0.25
- Working torque (Nm): 250-400
- Operating Temperature (°C): -20 ÷ +80
- IP rating: 67
- Oil Type: 708L
- Max door opening angle
- 110°
- Frequency of use
- F50 - up to 50 users
- Max door width
- 3.00 m
- Model
- Single
Spare part - Electric motor
- 230V
- Leaf weight
- 700 Kg
- Supply voltage
- 220 - 240V
