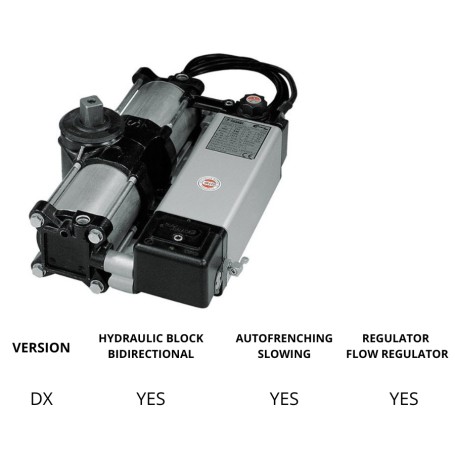

FADINI 767789BB3DXL COMBI 740 110° - Power, Precision and Safety for Your Gates COMBI 740 110° RIGHT

The best in automation, tailored to you

Good for:

• Heavy Duty Gates: It handles sashes up to 4 meters and 700 kg effortlessly.
• Maximum customization: Thanks to the flow regulator, you can adapt the movement of the gate to your needs.
• Total Security: The two-way hydraulic lock and automatic deceleration ensure safe and controlled operation.
• Residential and industrial installations: Suitable for different types of environments.

Why choose FADINI 767789BB3DXL?

• Powerful and reliable: It guarantees smooth and long-lasting operation.
• Customizable: The flow regulator allows you to adjust the speed at which the gate opens and closes.
• Sure: Two-way hydraulic lockout and automatic retarding as standard for maximum protection.
• Easy to install: Quick and easy assembly, without requiring special skills.
• Silent: Discreet operation for optimal acoustic comfort.
• Versatile: Suitable for different types of gates and environments.

Specifications:

• Model: COMBI 740 110°
• SKU: 767789BB3DXL
• Version: Right
• Hydraulic Lock: Bi-directional (irreversible) - Standard
• Self-braking: Slow Down - Standard
• Flow Controller: Standard
• Maximum shaft rotation: 110°
• Maximum Single Leaf Length: 4 meters
• Maximum Single Leaf Weight: 700 kg

What makes it unique?

The combination of two-way hydraulic lock, automatic deceleration and flow regulator makes this actuator extremely versatile and customizable, adapting to any need. The right version makes it perfect for installations where the gate opens to the right.

• Mains power supply (Vac - Hz): 230 - 50
• Power consumption (W): 250
• Current consumption (A): 1.2
• Power output (kW / HP): 0.18 / 0.25
• Working torque (Nm): 250-400
• Operating Temperature (°C): -20 ÷ +80
• IP rating: 67
• Oil Type: 708L
