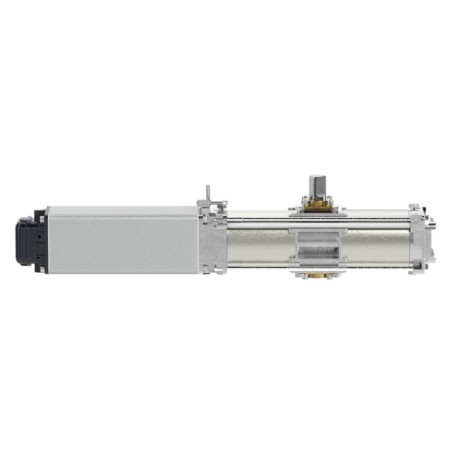

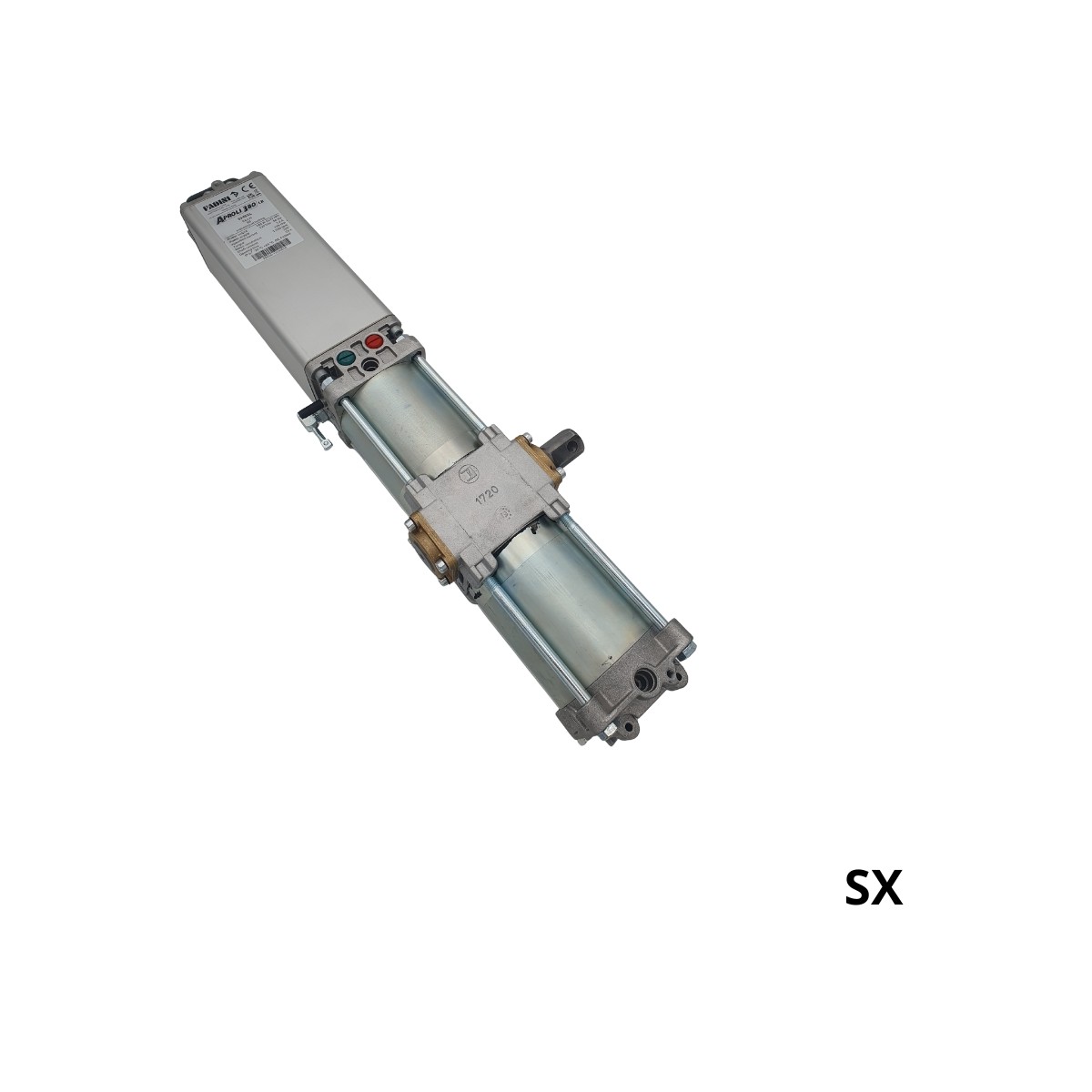

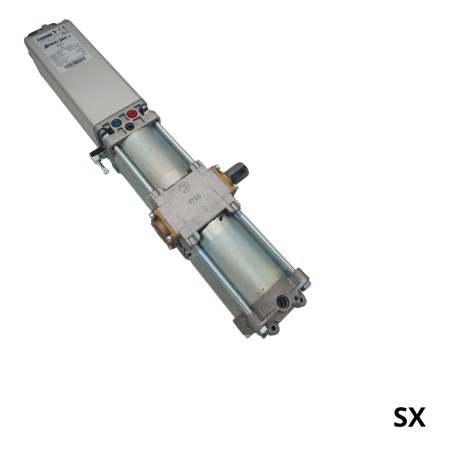

FADINI 394SXL – Hydraulic Left Actuator for Folding Doors APROLI 380 LB

The FADINI 394SXL actuator, belonging to the APROLI 380 LB series, is the professional solution designed for the automation of double-leaf industrial folding doors. This is the left-hand version, equipped with a two-way hydraulic block and designed to ensure powerful, smooth and highly reliable handling even in demanding work environments.

Thanks to hydraulic technology, the actuator ensures high performance, smooth movement and a long service life. Safety is guaranteed by the integrated by-pass valves , which perform an anti-crushing function. In addition, the manual lever release allows the door to be operated even in the event of a power failure.

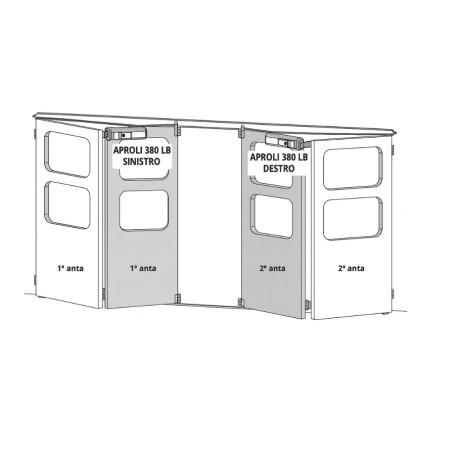

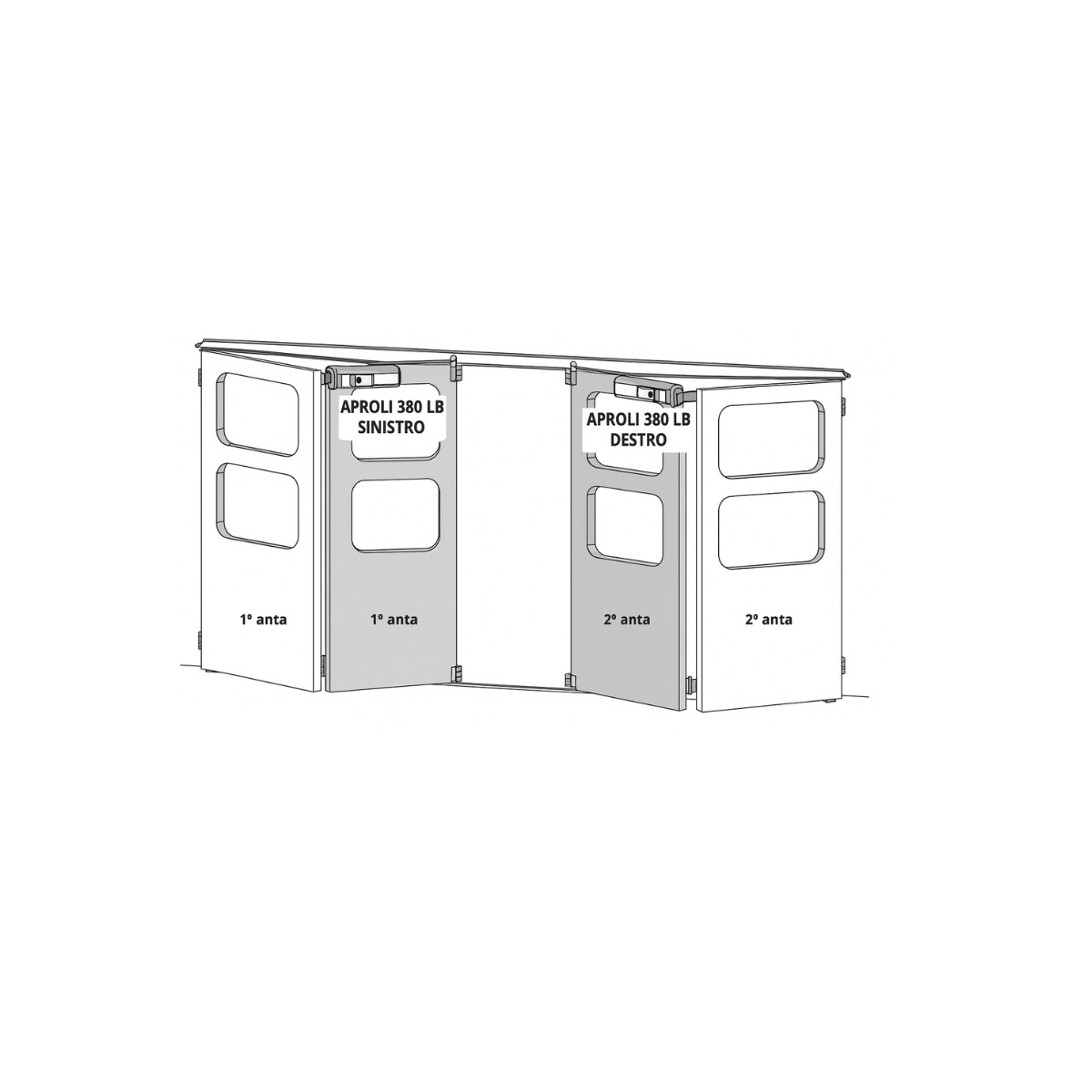

The 394SXL model is designed to work in conjunction with the right-hand actuator of the same series and is perfectly managed through the ELPRO 27 FADINI control unit, specific for folding door automations.

PRODUCT DATA – FADINI 394SXL (LEFT VERSION):

• Version: left

• Hydraulic Lock: Bi-Directional

• Maximum weight of 2-leaf door: 250 kg

TECHNICAL FEATURES:

• Power supply: 230 Vac – 50 Hz

• Power consumption: 250 W

• Current consumption: 1.2 A

• Power output: 0.24 kW – 0.33 HP

• Opening/closing time: ~23 s

• Maximum torque rating: 196.2 Nm

• Operating temperature: -20°C ÷ +80°C

• Degree of protection: IP67

• Oil Type: 708L

• Actuator weight: 10.5 kg

• Shaft rotation: max 205°

• Frequency of use: intensive
