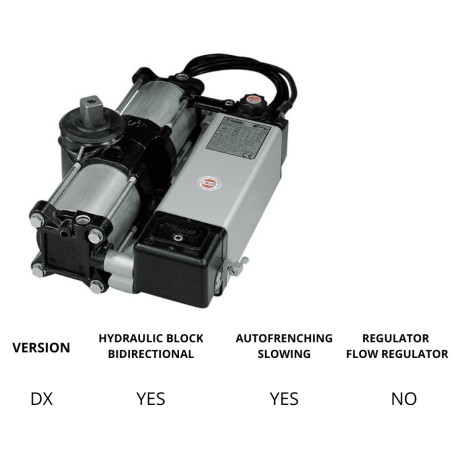

FADINI 76778BB3DXL COMBI 740 110° - Power and Safety for Your Gates
Underground operator, maximum leaf length 4 m and weight 700 kg, with two-way self-braking hydraulic lock slowing down - RIGHT
Lowest price within 30 days before promotion. €546.30
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...Read more -
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...Read more
-
Summer Break ugateshop.it: what to know about shipping, support, and discounts
We’re also taking a short break in August, but our shop remains online at all times. In this article, you’ll find all...Read more
Your Automatic, Safe and Reliable Gate
Good for:
- Heavy Duty Gates: It handles sashes up to 4 meters and 700 kg effortlessly.
- Maximum safety: The two-way hydraulic lock and automatic deceleration ensure safe and controlled operation.
- Residential and industrial installations: Suitable for different types of environments.
Why choose FADINI 76778BB3DXL?
- Powerful and reliable: It guarantees smooth and long-lasting operation.
- Sure: Two-way hydraulic lockout and automatic retarding as standard for maximum protection.
- Easy to install: Quick and easy assembly, without requiring special skills.
- Silent: Discreet operation for optimal acoustic comfort.
- Versatile: Suitable for different types of gates and environments.
Specifications:
- Model: COMBI 740 110°
- SKU: 76778BB3DXL
- Version: Right
- Hydraulic Lock: Bi-directional (irreversible) - Standard
- Self-braking: Slow Down - Standard
- Flow Controller: Not provided
- Maximum shaft rotation: 110°
- Maximum Single Leaf Length: 4 meters
- Maximum Single Leaf Weight: 700 kg
What makes it unique?
The combination of two-way hydraulic lockout and automatic deceleration as standard makes this actuator particularly safe and suitable for handling heavy gates. The right version makes it perfect for installations where the gate opens to the right.
Each part number includes a hydraulic actuator complete with electrical power cable. For codes containing the letter "N" (without hydraulic lock - reversible) the use of the electric lock is required. For leaves longer than 2 m, the use of an electric lock is required.Technical Information:
- Mains power supply (Vac - Hz): 230 - 50
- Power consumption (W): 250
- Current consumption (A): 1.2
- Power output (kW / HP): 0.18 / 0.25
- Working torque (Nm): 250-400
- Operating Temperature (°C): -20 ÷ +80
- IP rating: 67
- Oil Type: 708L
- Max door opening angle
- 110°
- Frequency of use
- F50 - up to 50 users
- Max door width
- 4.0 m
- Product Type.
- Single
Spare part - Electric motor
- 230V
- Leaf weight
- 700 Kg
- Supply voltage
- 220 - 240V
