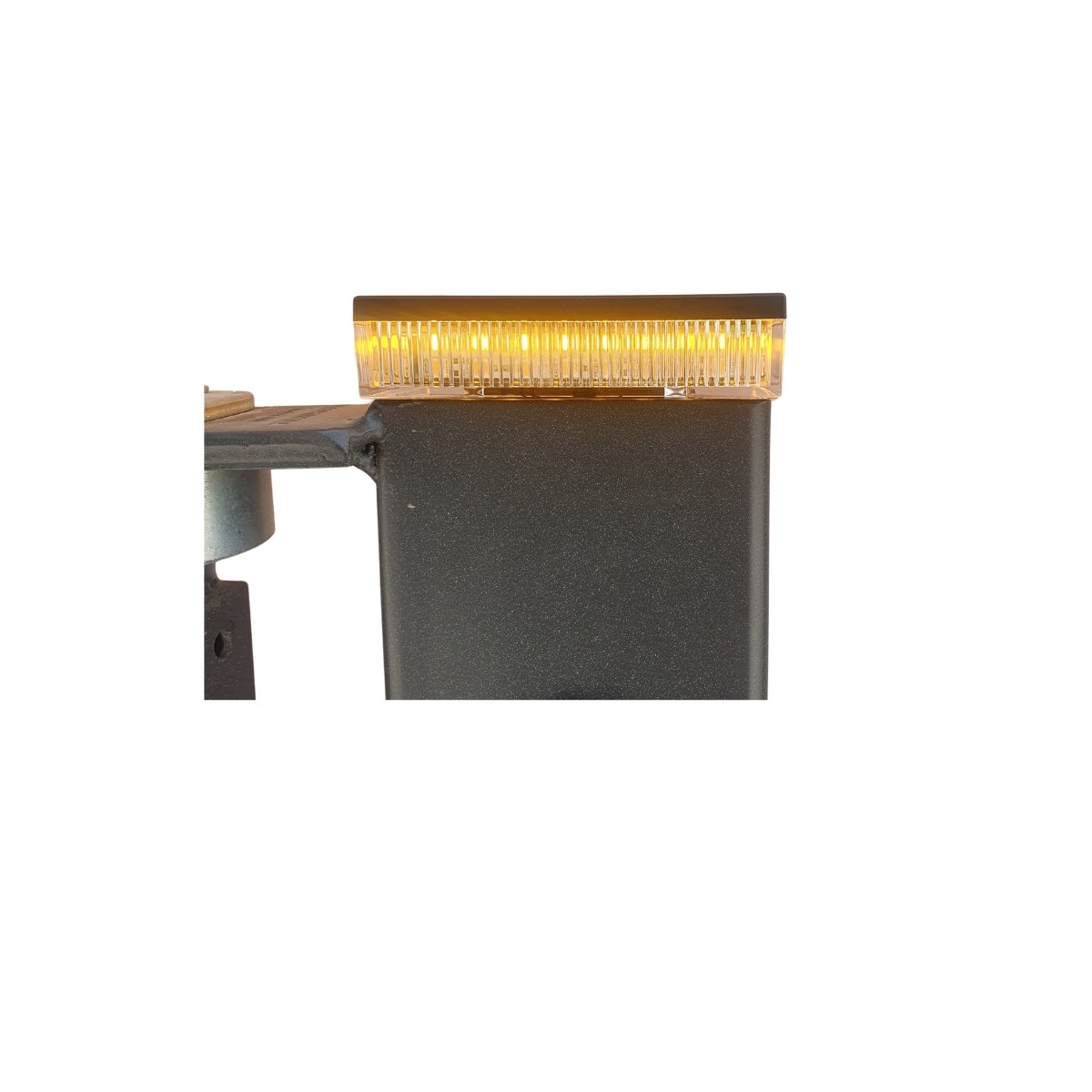

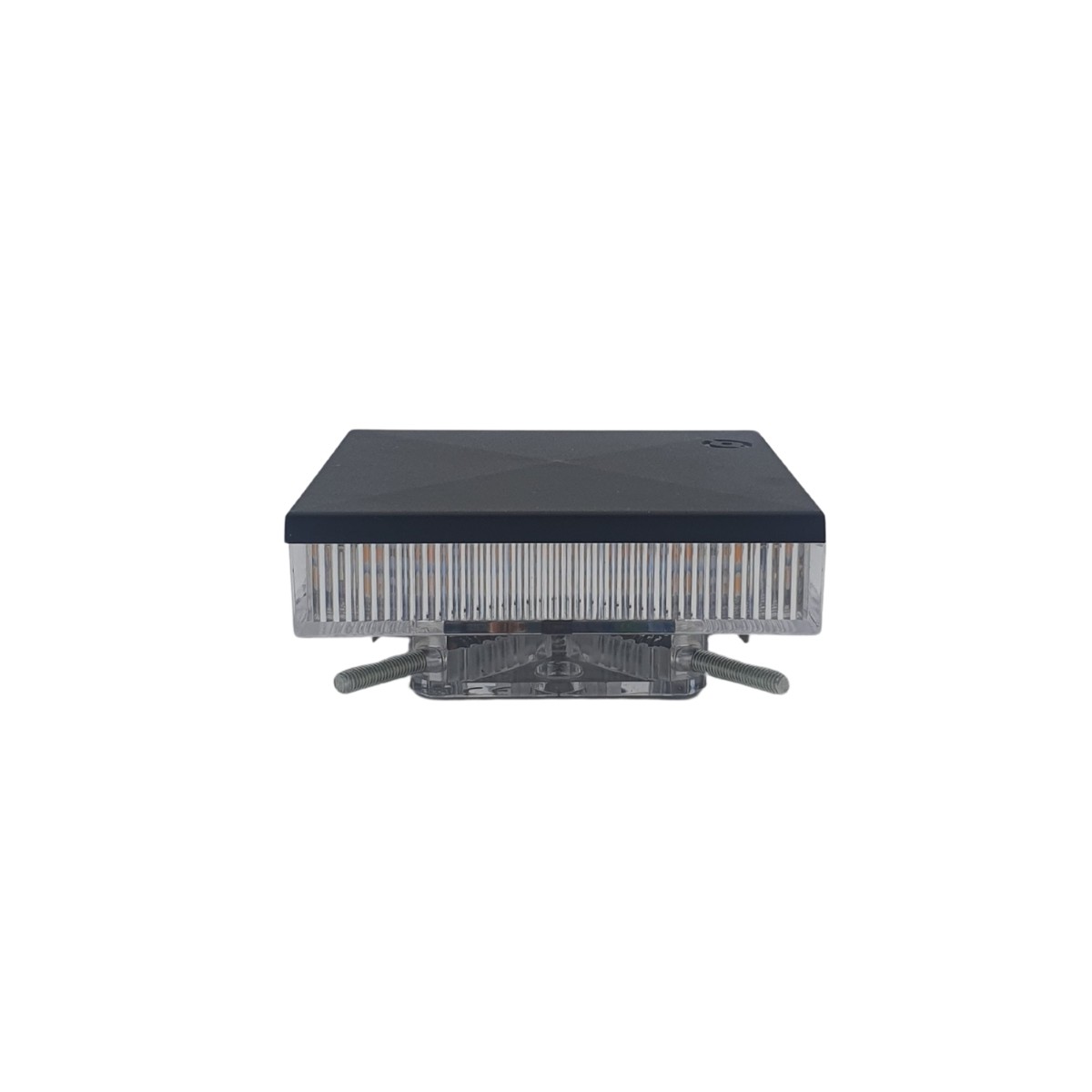

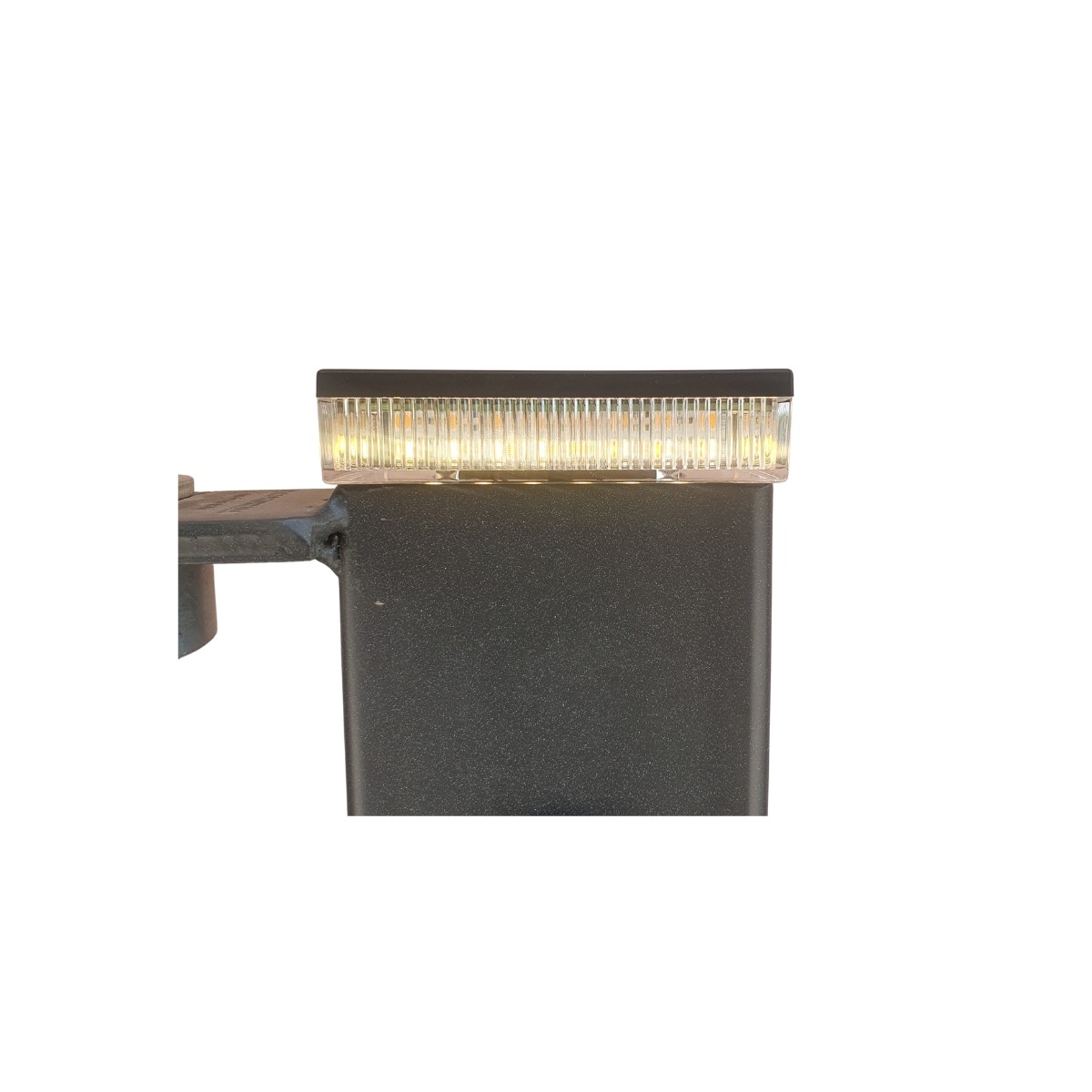

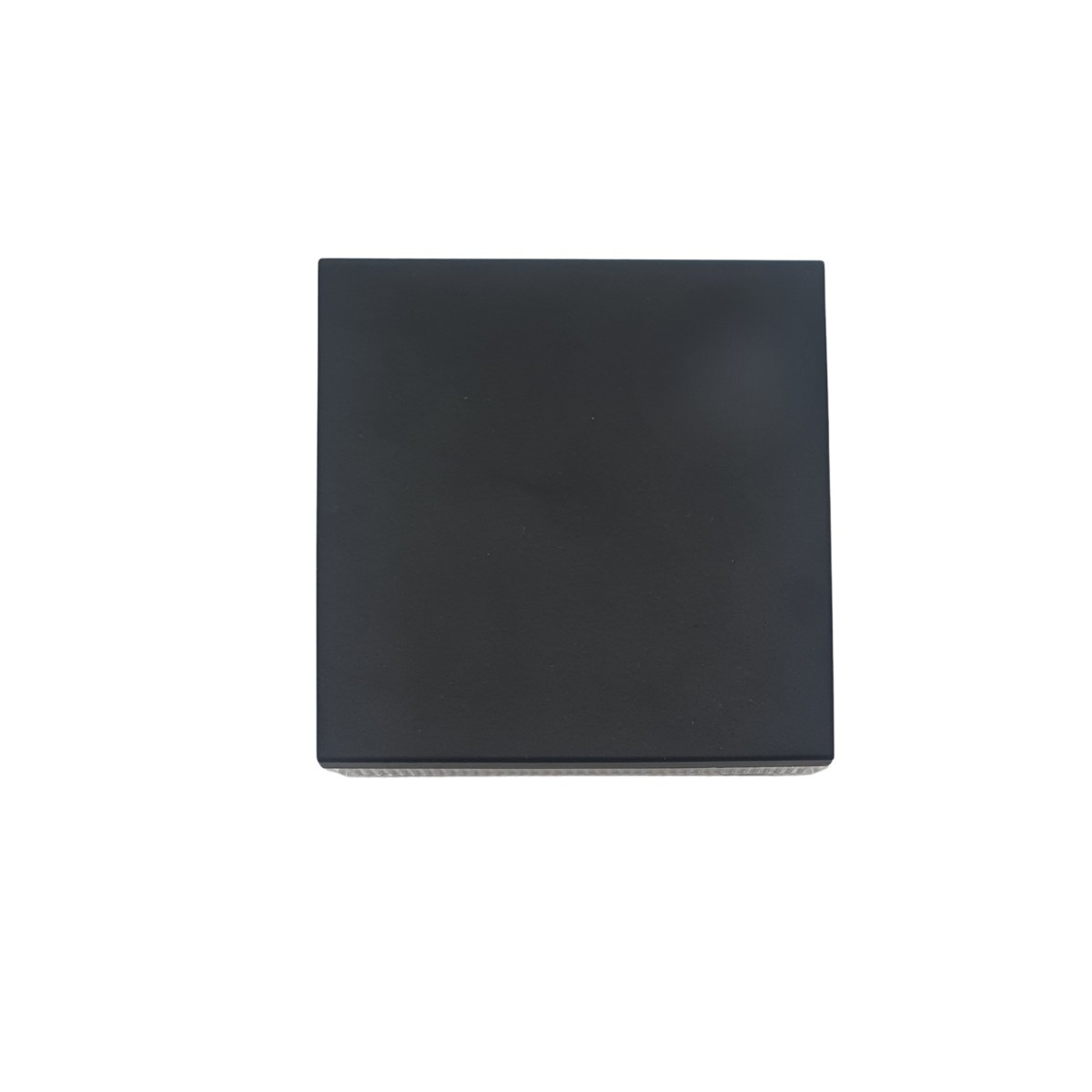

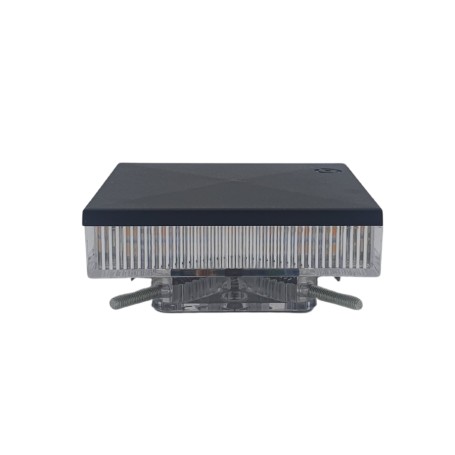

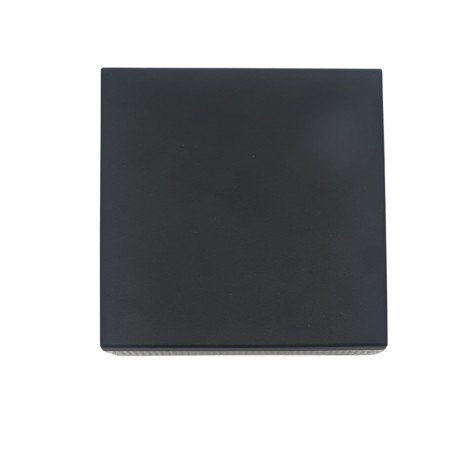

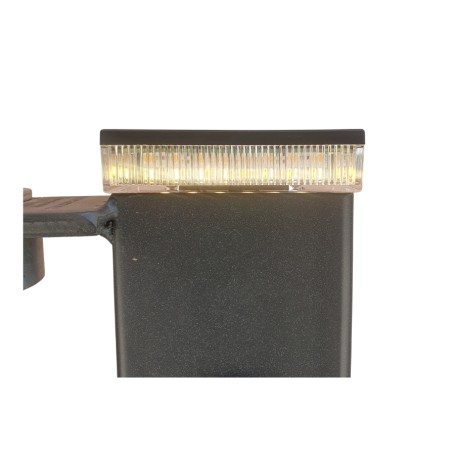

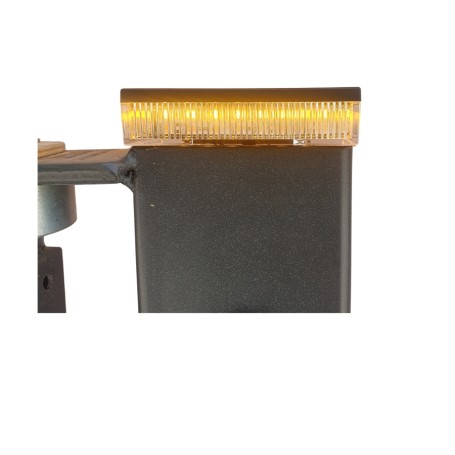

CO-FL-100 – Column Signal Light 12-24V/230V – White/Yellow – IP54

The CO-FL-100 is a column signal light designed for gate and gate automation systems, ideal for metal columns of 100x100, 80x100 or 80x80 mm dimensions. The device is equipped with multi-power technology, with 12-24V ac/dc inputs for white or yellow light and 230V ac for yellow light.

The light can work in three modes:

• Solid white (courtesy light) with 12-24V ac/dc power supply.

• Solid or flashing yellow with 12-24V ac/dc or 230V ac power supply (flashing frequency: 1 Hz).

• Combined: If the two power supplies are present at the same time, the yellow light temporarily replaces the white light. This ensures that the yellow flashing light always has priority when the gate is in operation. Once the gate has stopped and after 4 seconds the white light comes back on.

Key features:

• Power supply: 12-24V ac/dc | 230V ac

• Max power consumption: 120 mA (12V), 60 mA (24V), 10 mA (230V)

• Solid or flashing mode selectable via jumper

• Operating temperature: -20°C to +60°C

• Degree of protection: IP54

• Installation inside the column with screw fixing system and contrast pins

CO-FL-100 dimensions: 103 x 103 x 26 mm
Column compatibility: 100x100, 80x100, 80x80 mm
