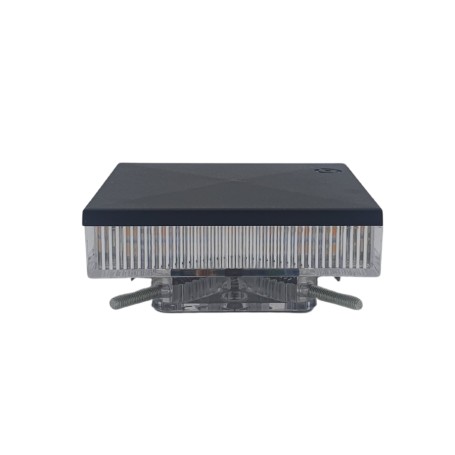

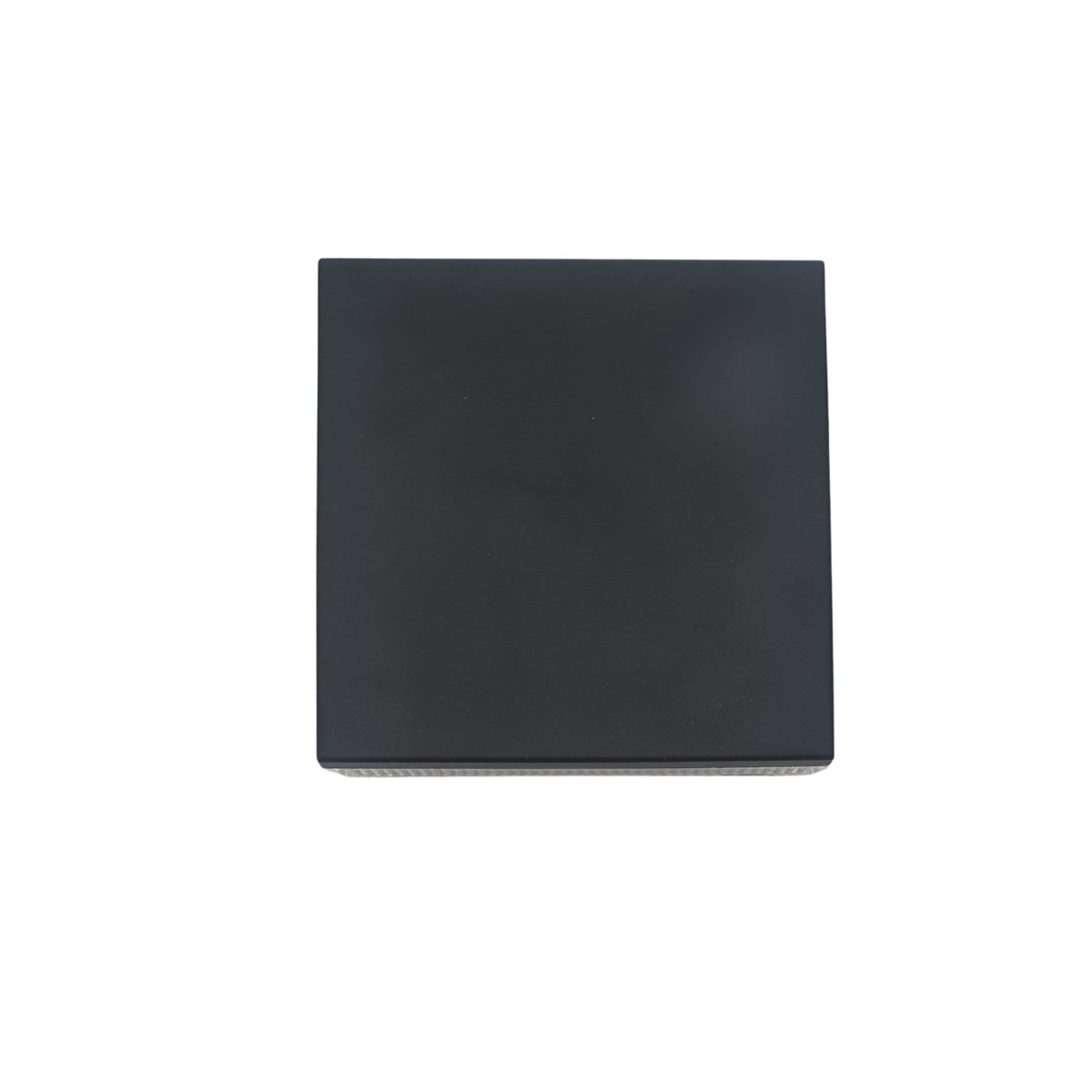

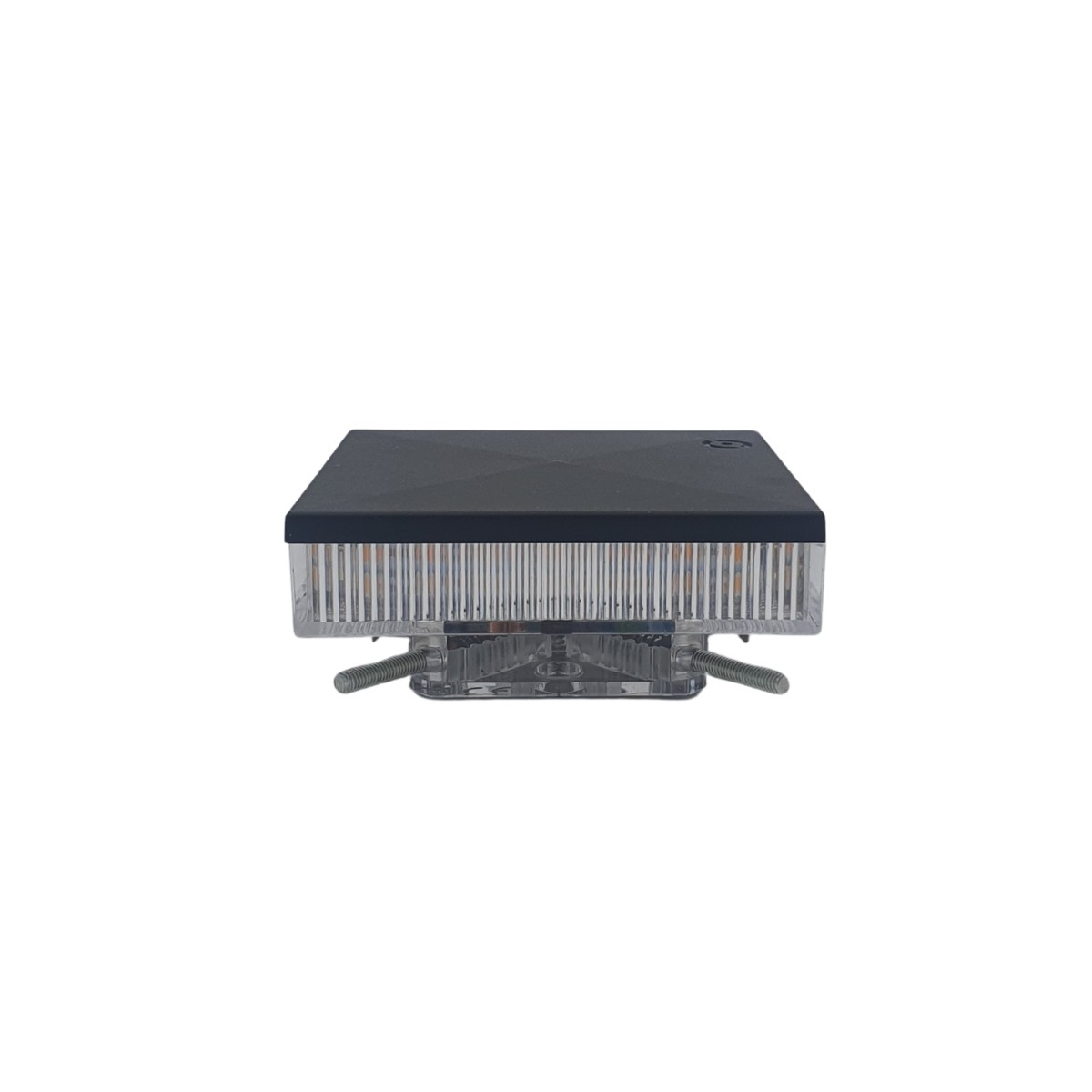

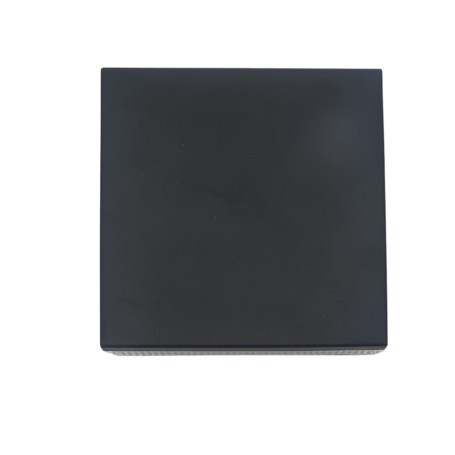

CO-FL-120 – Column Signal Light 12-24V/230V – White/Yellow – IP54

The CO-FL-120 model is a high-efficiency column light, designed for automation and safety systems on metal columns measuring 120x120 mm. Thanks to its multi-power technology, it offers clear and reliable signalling in residential or industrial environments.

Operating modes:

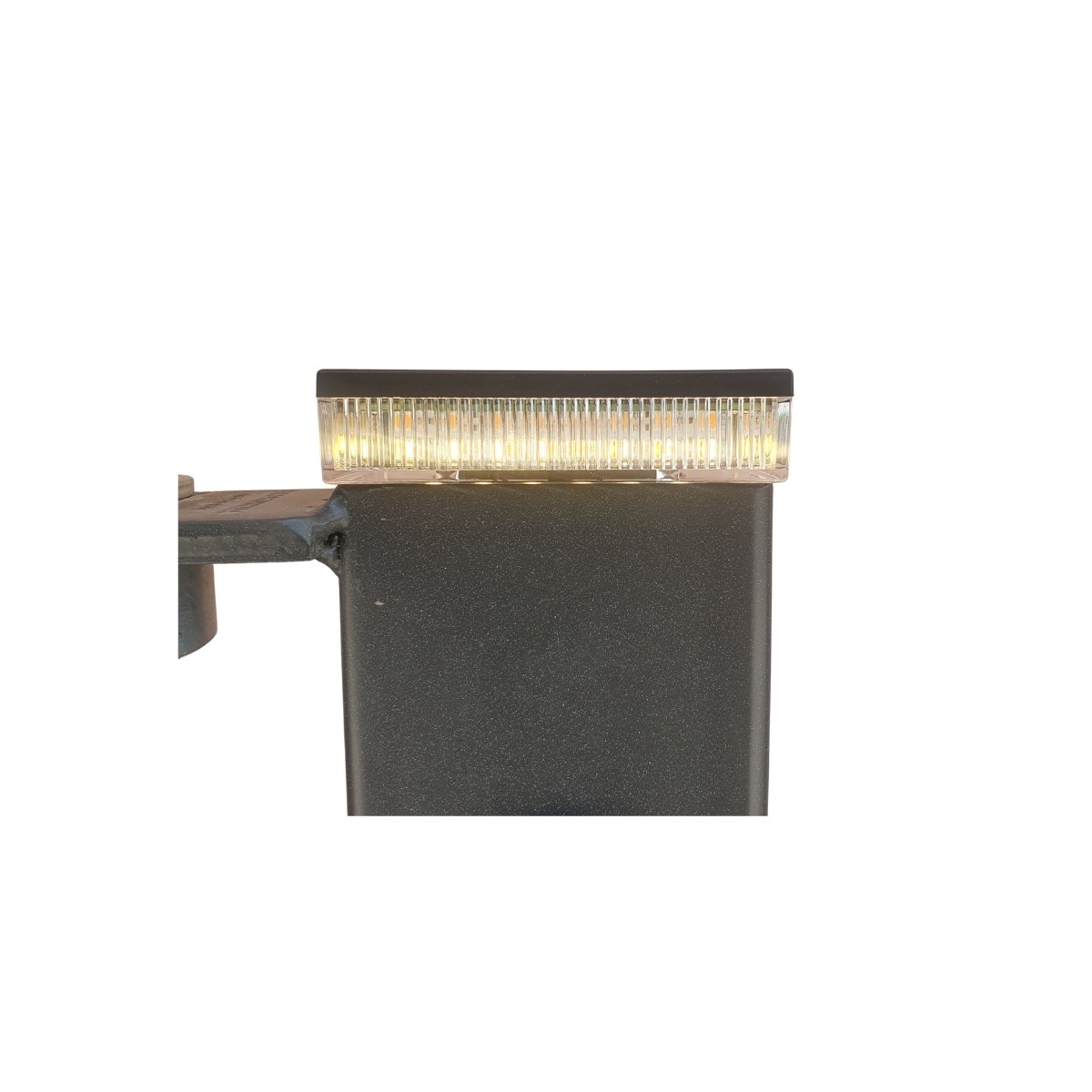

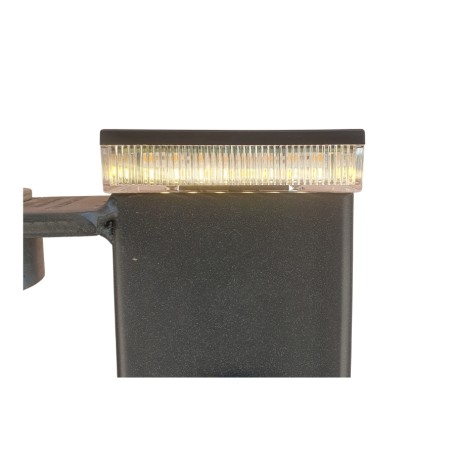

• Solid white light with 12-24V ac/dc input (courtesy function).

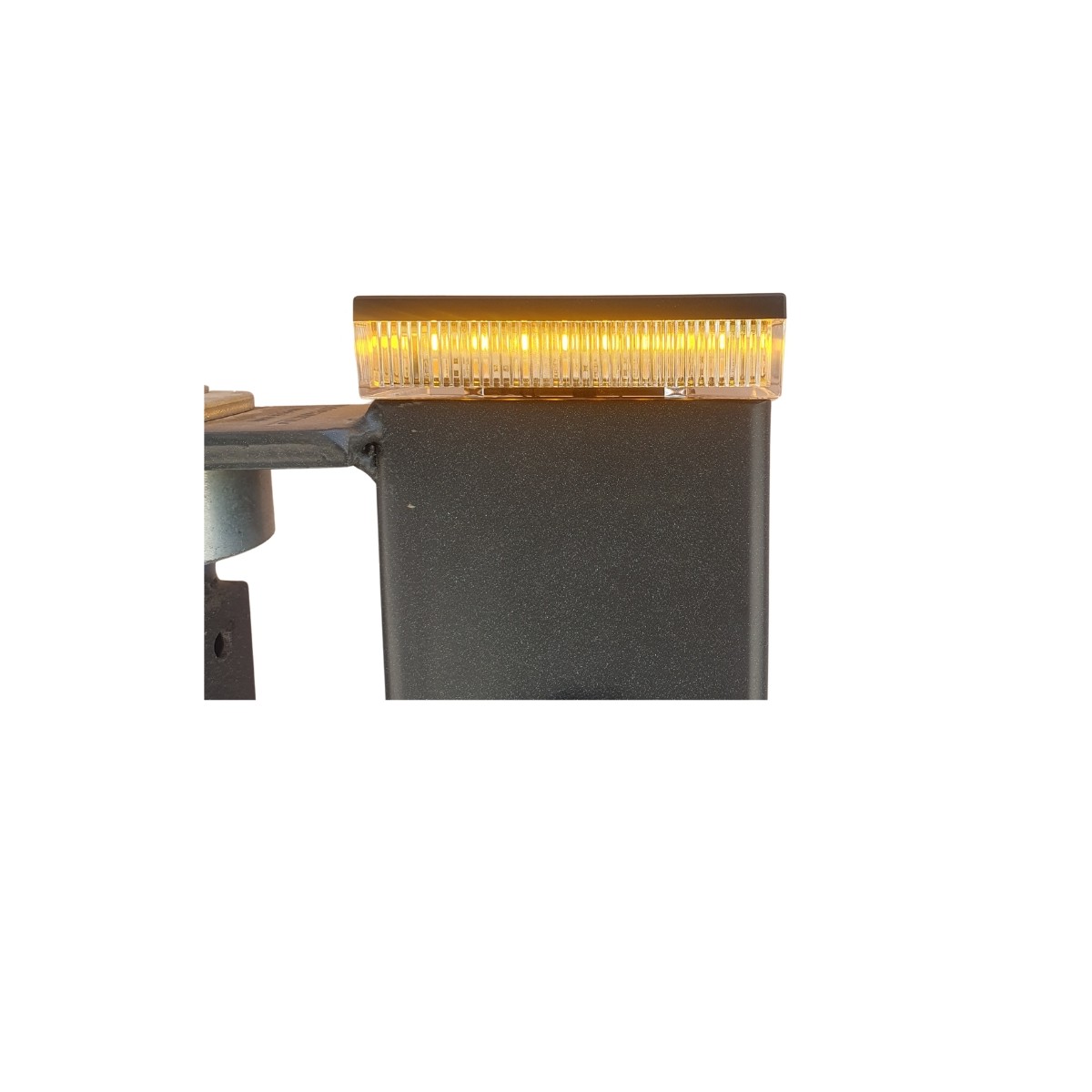

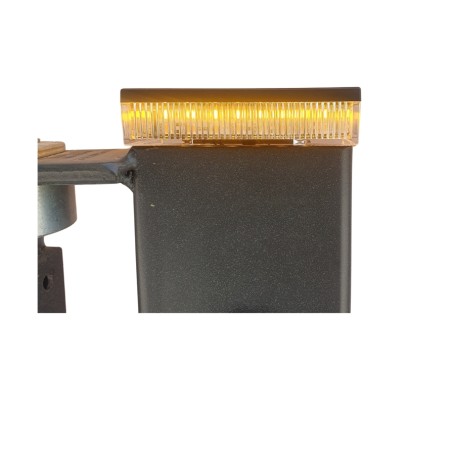

• Solid or flashing yellow light with 12-24V ac/dc or 230V ac input.

• Combination function: the yellow light replaces the white light in the event of an alarm, and then reactivates it after 4 seconds from the end of the signal. This ensures that the yellow flashing light always has priority when the gate is in operation. Once the gate has stopped and after 4 seconds the white light comes back on.

Specifications:

• Inputs: 12-24V ac/dc and 230V ac

• Flashing frequency: 1 Hz

• Low power consumption: 120 mA (12V), 60 mA (24V), 10 mA (230V)

• Operating temperature: -20°C to +60°C

• Protection class: IP54, weather-resistant

• Installation system inside the column with locking screw accessible from the outside

CO-FL-120 dimensions: 122 x 122 x 26 mm
Column compatibility: 120x120 mm
