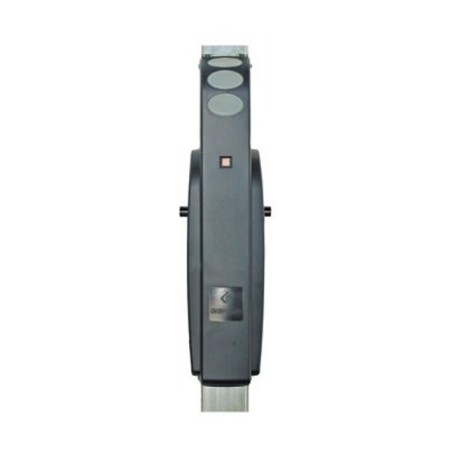

Actuator Tilting motor with counterweights EURO BREEZE 06 C SB DX GENIUS 6120036

GENIUS 6120036 Euro Breeze 06:

This is the version of the irreversible BREEZE with the GEO 07 control unit on board

- Available in the 230V version for single doors up to 10sqm and double application for doors up to 15sqm.
- Pre-drilled upright crossbar for housing the motor in different positions.
- Built-in courtesy light.
- Built-in automation control button.
- Engine release with separate custom key.
- Available in the version with electronic board, encoder and limit switch on board

SPECIFICATIONS:
Power Supply (V): 230
Electric Motor (V): 230
Power (W): 350
Current (A): 1.5
Thermal protection (°C): 140
Condenser (F): 10
Max. torque (Nm): 300
Angular velocity (°/sec): 12
90° opening time (sec): 15
Frequency of use at 20°C: S3 - 30%
Indicative hourly cycles at 20°C: 36
Operating Temp. (°C): 20 +55
Operator Weight (Kg): 7.5
Degree of protection: IP44

24 Months Warranty
