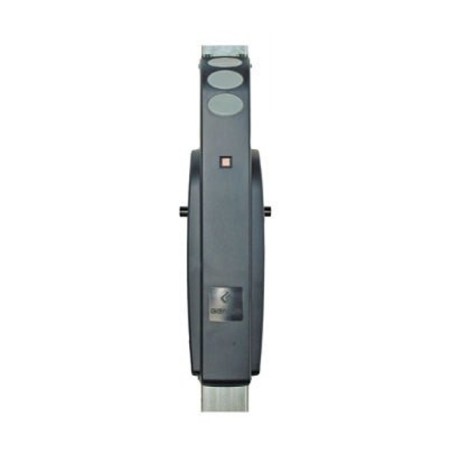

Tilting actuator and counterweights EURO BREEZE 06 C LENTO SB DX GENIUS 6120038

GENIUS 6120038 Euro Breeze 06

This is the version of the irreversible slow BREEZE with the GEO 07 control unit on board

- Available in the 230V version for single doors up to 10sqm and double application for doors up to 15sqm.
- Pre-drilled upright crossbar for housing the motor in different positions.
- Built-in courtesy light.
- Built-in automation control button.
- Engine release with separate custom key.
- Available in the version with electronic board, encoder and limit switch on board

SPECIFICATIONS:
Power Supply (V): 230
Electric Motor (V): 230
Power (W): 300
Current (A): 1.2
Thermal protection (°C): 140
Condenser (F): 8
Max. torque (Nm): 250
Angular velocity (°/sec): 8
90° opening time (sec): 22
Frequency of use at 20°C: S3 - 30%
Indicative hourly cycles at 20°C: 24
Operating Temp. (°C): 20 +55
Operator Weight (Kg): 7.5
Degree of protection: IP44

24 Months Warranty
