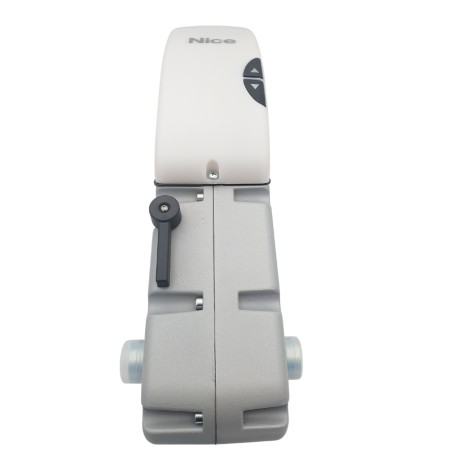

Gear motor for overhead doors TEN slow with central NICE TN2030L

This operator NICE has the ability to operate alone by handling tilting doors with fabric up to 9 square meters and 2.6 m in height. The same operator can work in pairs with the TN2010L to handle larger tilting doors.

The TN2030L engine connects to the TN2010L engine through a special terminal block and the control center on board the TN2030L will manage both operators.

It is very important to know that when creating a system with 2 motors, you must also purchase all the accessories, such as: support brackets, transmission tubes, telescopic arms and all the accessories related to the system such as: photocells, flashing lights, remote controls, sensitive edges.

The characteristics of the TN2030L are as follows:
SPECIFICATIONS:
Power supply (Vac 50/60 Hz): 230
Power consumption (A): 1
Power (W): 220
Speed (rpm): 1.4
Torque(Nm): 420
Duty cycle (cycles/hour): 20
Protection Rating (IP): 44
Operating Temp. (C Min/Max): -20 +50
Dimensions (mm): 150x158x512 h
Weight (kg): 9.5
