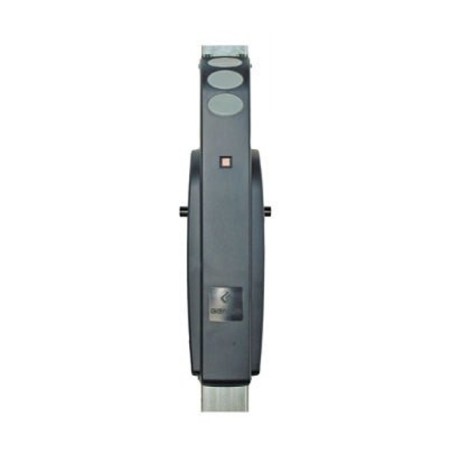

Actuator for tilting and counterweights EURO BREEZE 06 LENTO SB SX GENIUS 6120046

Name: Actuator for tilting and counterweights EURO BREEZE 06 LENTO SB SX GENIUS 6120046
Brand: GENIUS
SKU: 1658840407062-214
Price: 189 EUR
Availability: InStock

Slow Irreversible Motor, 230V, door 3.3 x 3 m., Residential use

Description

Product Details

Cod: 1658840407062-214

mpn: GEN-6120046

€189.00

Tax included

Last items in stock

Lowest price within 30 days before promotion. €183.33

Is UGATE SHOP a reliable seller? What are customers' opinions?

Posted in: Focus
21/03/2025

In this post we report on the opinions of some of our customers who have been super satisfied with our service and...
Read more
Single photocell that replaces all traditional photocells and reflexes

Posted in: News
09/07/2025

Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...
Read more

Description
Product Details

GENIUS 6120046 Euro Breeze 06

This is the slow version of the BREEZE without a central on board.

- Available in the 230V version for single doors up to 10sqm and double application for doors up to 15sqm.
- Pre-drilled upright crossbar for housing the motor in different positions.
- Built-in courtesy light.
- Built-in automation control button.
- Engine release with separate custom key.

SPECIFICATIONS:
Power Supply (V): 230
Electric Motor (V): 230
Power (W): 300
Current (A): 1.2
Thermal protection (°C): 140
Condenser (F): 8
Max. torque (Nm): 250
Angular velocity (°/sec): 8
90° opening time (sec): 22
Frequency of use at 20°C: S3 - 30%
Indicative hourly cycles at 20°C: 24
Operating Temp. (°C): 20 +55
Operator Weight (Kg): 7.5
Degree of protection: IP44

24 Months Warranty

Frequency: 433 MHz
868 MHz
Frequency of use: F10 - up to 10 users
Model: Single
Electric motor: 230V
Opening time: 22 s (90°)
Supply voltage: 220 - 240V
Door size: 9 sqm
