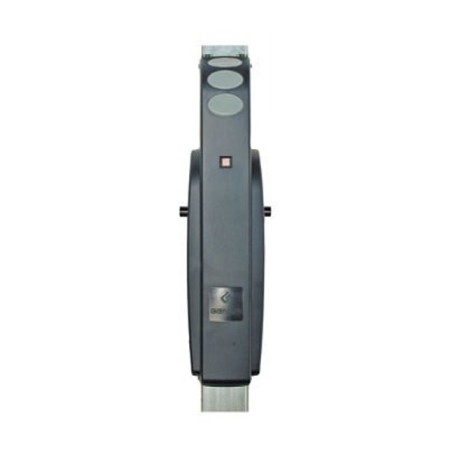

Actuator for overhead doors and counterweights EURO BREEZE 06 SB/SX GENIUS 6120045

Name: Actuator for overhead doors and counterweights EURO BREEZE 06 SB/SX GENIUS 6120045
Brand: GENIUS
SKU: 1658840406955-614
Price: 242.04 EUR
Availability: BackOrder

Irreversible Motor, 230V, door 3.3 x 3 m., Residential use

Description

Product Details

Cod: 1658840406955-614

mpn: GEN-6120045

€242.04

Tax included

Su ordinazione

Lowest price within 30 days before promotion. €242.04

Description
Product Details

GENIUS 6120045 Euro Breeze 06

This is the version of the BREEZE without a central unit on board.

- Available in the 230V version for single doors up to 10sqm and double application for doors up to 15sqm.
- Pre-drilled upright crossbar for housing the motor in different positions.
- Built-in courtesy light.
- Built-in automation control button.
- Engine release with separate custom key.

SPECIFICATIONS:
Power Supply (V): 230
Electric Motor (V): 230
Power (W): 350
Current (A): 1.5
Thermal protection (°C): 140
Condenser (F): 10
Max. torque (Nm): 300
Angular velocity (°/sec): 12
90° opening time (sec): 15
Frequency of use at 20°C: S3 - 30%
Indicative hourly cycles at 20°C: 36
Operating Temp. (°C): 20 +55
Operator Weight (Kg): 7.5
Degree of protection: IP44

24 Months Warranty

Frequency of use: F10 - up to 10 users
