If you are looking for an indoor sliding door automation for residential and commercial environments, the CIVIK series from DITEC is for you.

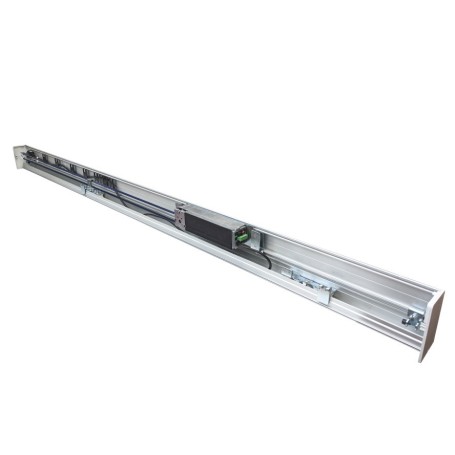

This motorized crossbar is compact and capable of moving doors in offices, doctors' offices and private homes. The maximum capacity reaches 60Kg in the single-leaf case. Very important to remember is that the kit comes out to motorize a single leaf (not completely made of glass but with a frame). If you have to motorize a double leaf entrance, or doors with completely glass leaves, you must purchase additional products.
The CIVIK motorized crossbar requires some accessories to be complete. In particular, the minimum accessories to be purchased are:
- Multifunction selector COM501HCV
- Guide shoe KP515AB (in the case of framed sashes)
- HOT-HR100-CT/BL Dual Function Safety and Aperture Sensor (2 sensors are normally required)
We want to remind you that our technical department is available to configure the automatic door automation with all the accessories necessary for its operation. So if you have any doubts, call us or write to us by clicking on contacts.
Specifications:
The DITEC Civik system has been designed to offer automation solutions for interior sliding doors, combining aesthetics and functionality. Its compact and modern structure fits perfectly into different door configurations, including glass and wood models.
Key features:

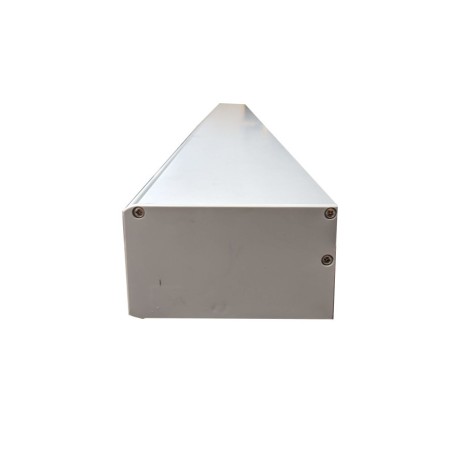

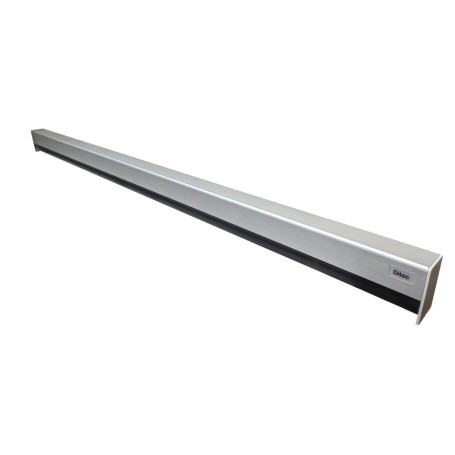

Sleek Design: The cover is only 75 mm high and gives a refined and discreet look, ideal for environments that require a balance between technology and design.
Versatility: Suitable for different types of windows, the Civik system can be used with glass, wood or other material doors, offering customized solutions for every need.
Ease of Installation: Designed to simplify the installation process, Civik reduces time and complexity, ensuring a smooth implementation.
Advanced Operating Modes: The PUSH&GO and PULL&CLOSE functions improve the user experience, while the LOW ENERGY mode optimizes energy consumption, adapting to different operational needs.
Security and Reliability: Civik is equipped with safety sensors monitored in opening and closing, ensuring safe operation and compliance with current standards.
Technical specifications:
Maximum Capacity: Up to 60 kg for a single leaf and 80 kg for two leaves.
Power supply: 230 V AC at 50-60 Hz.
Opening Speed: Up to 0.4 m/s for a single leaf and 0.8 m/s for two leaves.
Closing Speed: Up to 0.2 m/s for a single leaf and 0.4 m/s for two leaves.
Operating Temperature: -20°C to +55°C.
Degree of Protection: IP20.
Composition of the Kit:

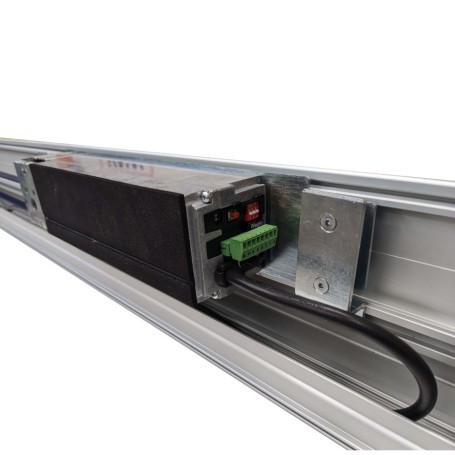

Actuator complete with control panel.
Referral group.
Fixing brackets.
Support profile and locking casing in EURAS C0 aluminium.
Carts.
Door attachment brackets.
For the two-leaf version, the KCIVIKGCL carriage unit must be added.
Available Accessories:
OCL: Radio receiver kit complete with wiring and transmitter.
CIVIKLA: Panic system complete with brackets.
CIVIKAL: Connection kit for wooden doors.
CIVIK3P: Built-in sensor for manual, automatic and door open modes.
COM501HCV: Mechanical function selector with knob.
Important Notes:
The use of original spare parts and accessories DITEC guarantees maximum compatibility and durability of the automation system.
It is advisable to check the specifications of your window and the operational requirements before purchasing to ensure the most suitable choice.
