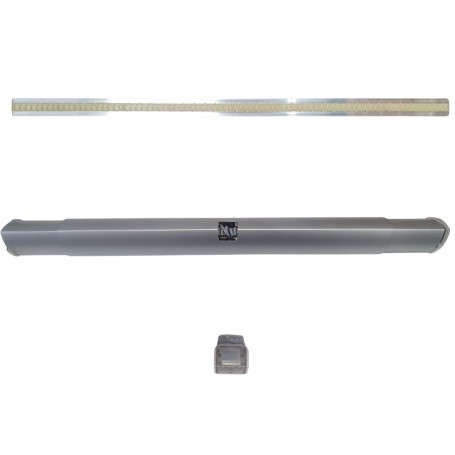

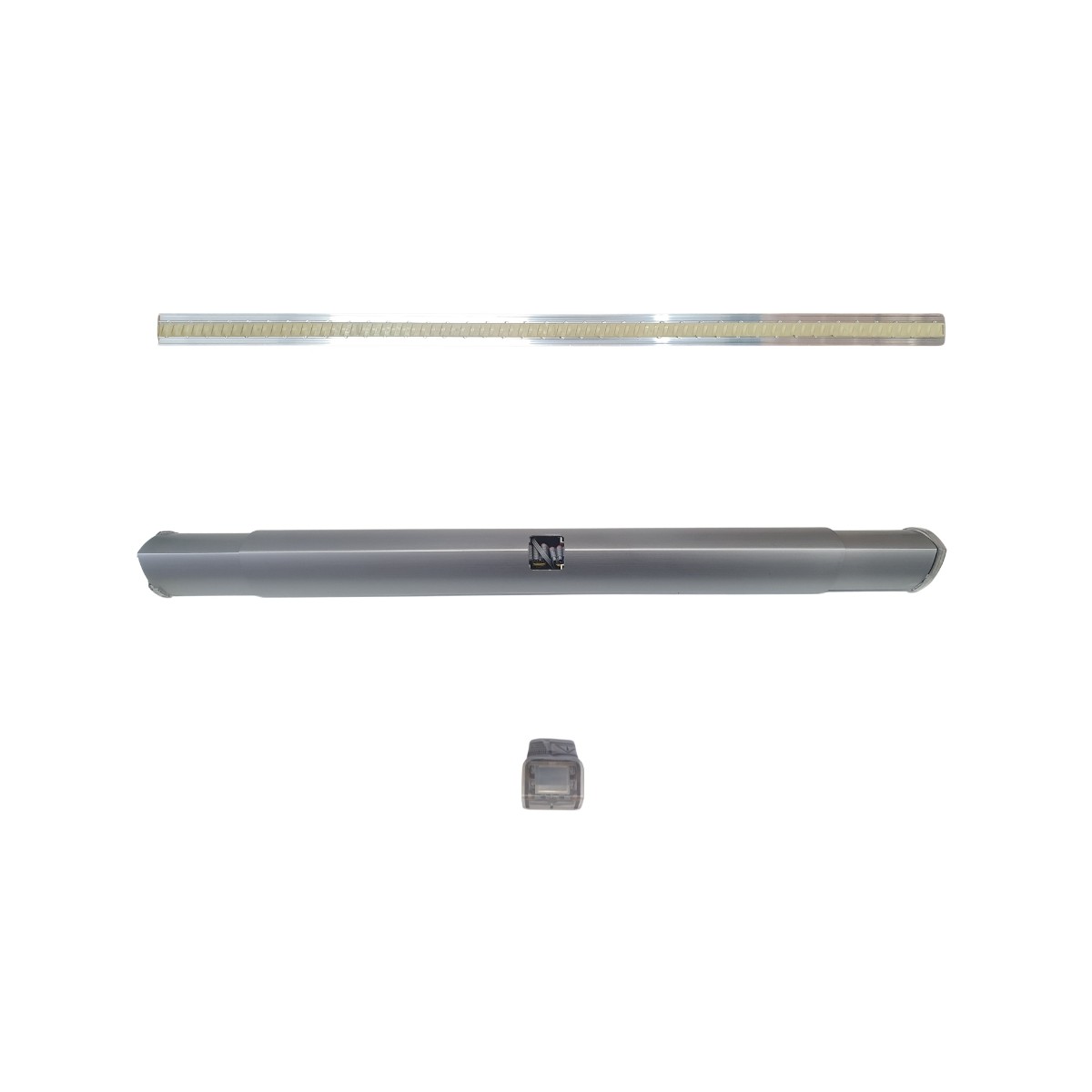

Telescopic Concealed Sliding Door Automation 700–1000 mm 230V – Integrated IR Sensor System

This automation for retractable sliding doors is a compact, reliable and high-tech solution for the automation of interior doors such as Scrigno or similar.

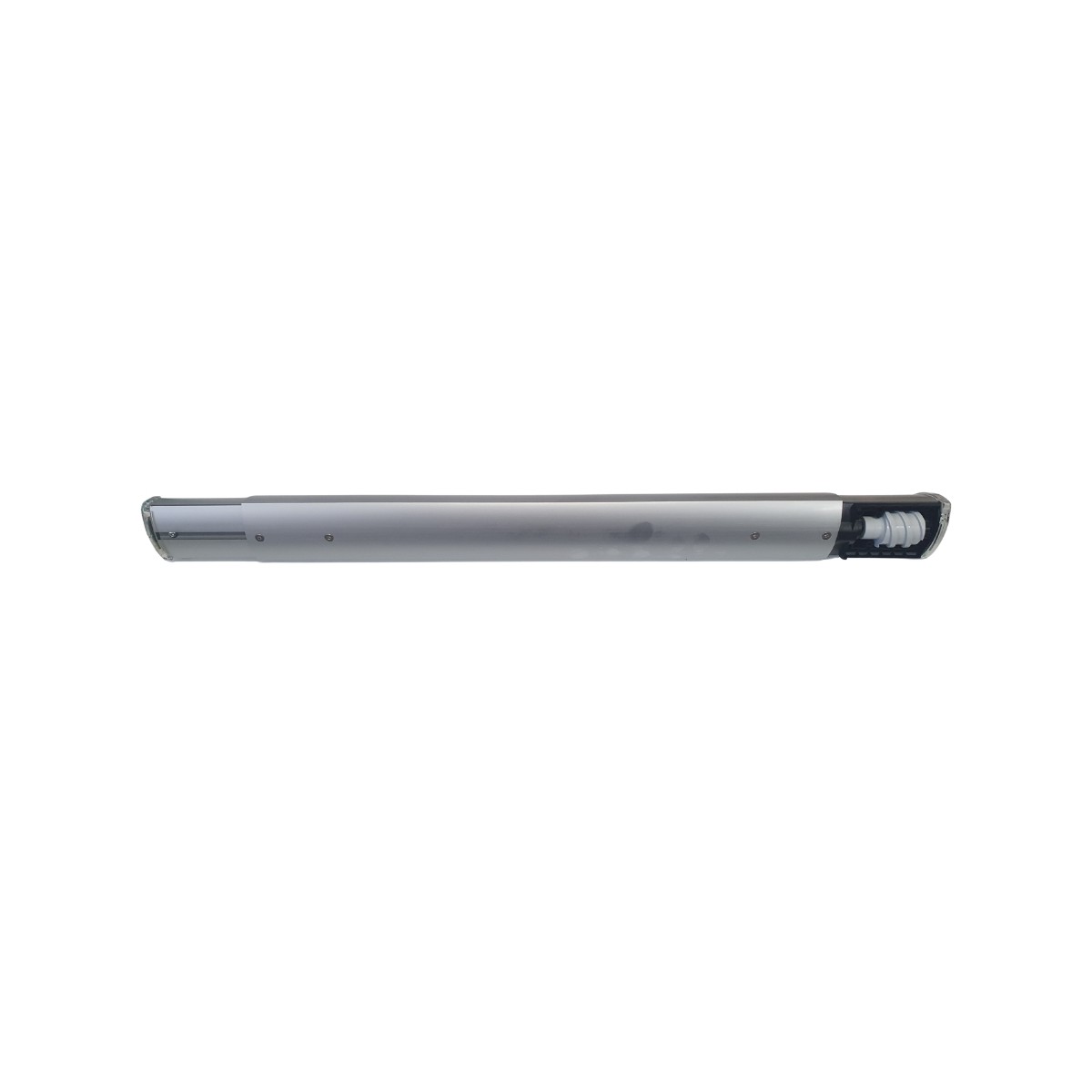

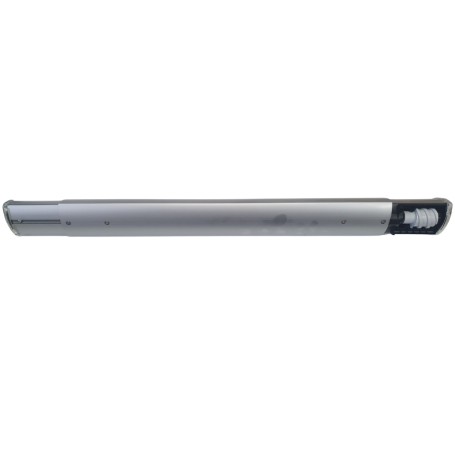

The system is designed to be installed directly inside the door mullion, maintaining a clean and fully integrated aesthetic. The telescopic structure allows great flexibility during installation, allowing adaptation to passages from 700 mm up to 1000 mm.

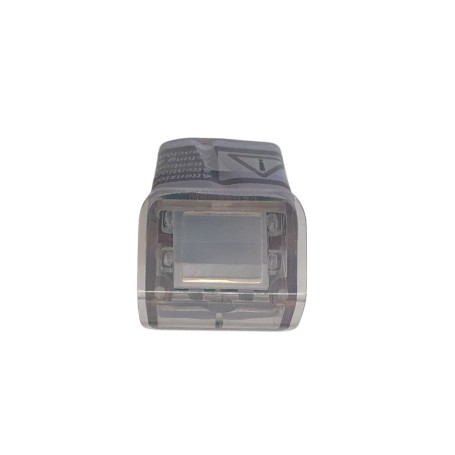

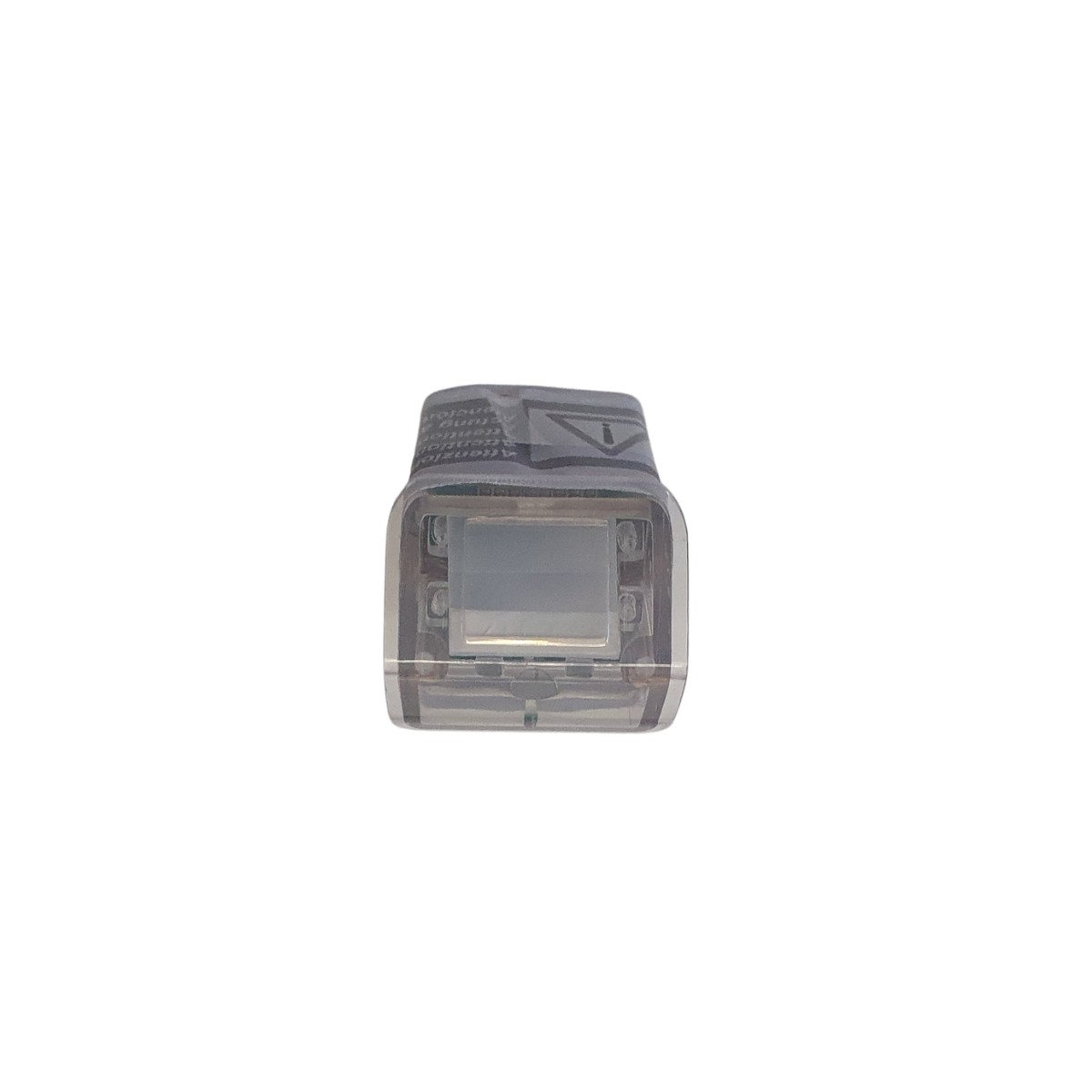

One of the main strengths of this automation is the complete integration of all important components, including the control unit and the infrared sensor for automatic opening. The IR detector is positioned inside the crossbar, ensuring a discreet and elegant solution. If you need to control the opening from both sides, an additional sensor or an external control button can be installed.

The system is equipped with advanced electronic motion control that allows automatic obstacle detection. This allows installation without the use of photocells or additional safety devices, greatly simplifying assembly and reducing the overall costs of the system.

Thanks to the operation in "Low Energy Movement" mode in compliance with EN16005 regulations, this automation guarantees safety and reliability even in busy environments, adapting speed and force according to the weight of the leaf.

⚠️ Important note: In the V1E version, you cannot use the function selector or TS8 remote control.

Technical features

• Power supply: 230V ~ 50/60 Hz

• Accessory Outputs: 5V 80mA / 24V 110mA

• Power consumption: 100 mA at 230V

• Power: 15 W

• Durability: up to 200,000 cycles

• Speed: EN16005 compliant (Low Energy)

• Leaf weight adjustment: from 150 N to 700 N (35 N steps)

• Maximum force: 67 N

• Opening time: adjustable from 2 to 60 seconds

• Insulation class: II

• Operating temperature: -5°C to +50°C

• Number of doors: 1

• Maximum capacity: 700 N

• Compartment width: 700 ÷ 1000 mm

• Dimensions: 59 x 65 mm – telescopic variable length

Key Benefits

• Invisible installation inside the subframe

• Telescopic system adaptable to different widths

• Built-in IR sensor for automatic opening

• Obstacle detection without photocells

• Compliant with EN16005 regulations

• Ideal for residential environments, offices and professional studios
