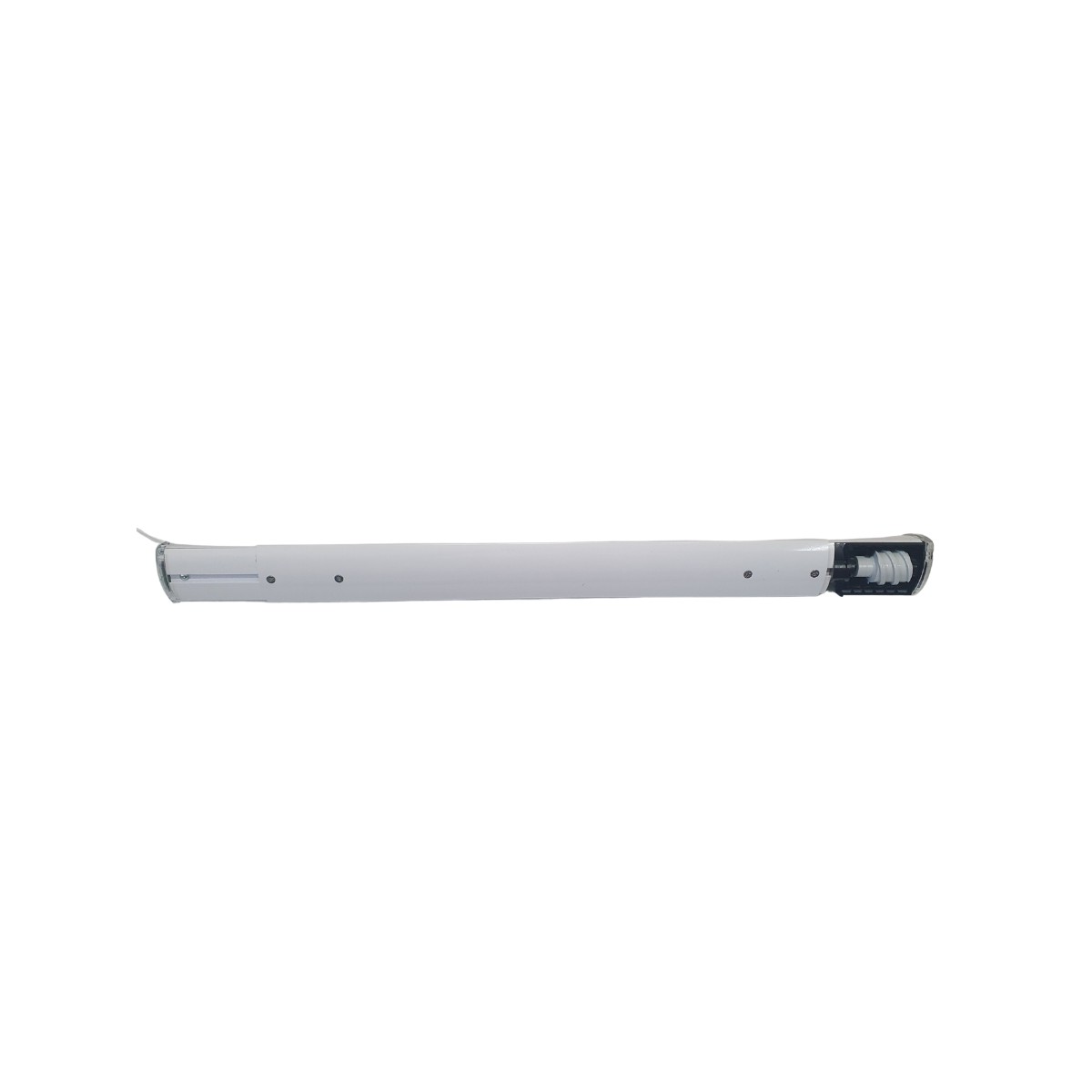

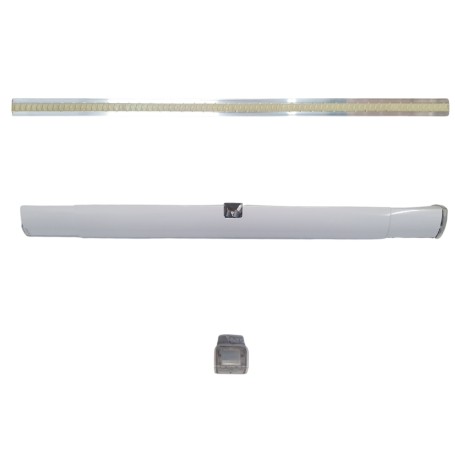

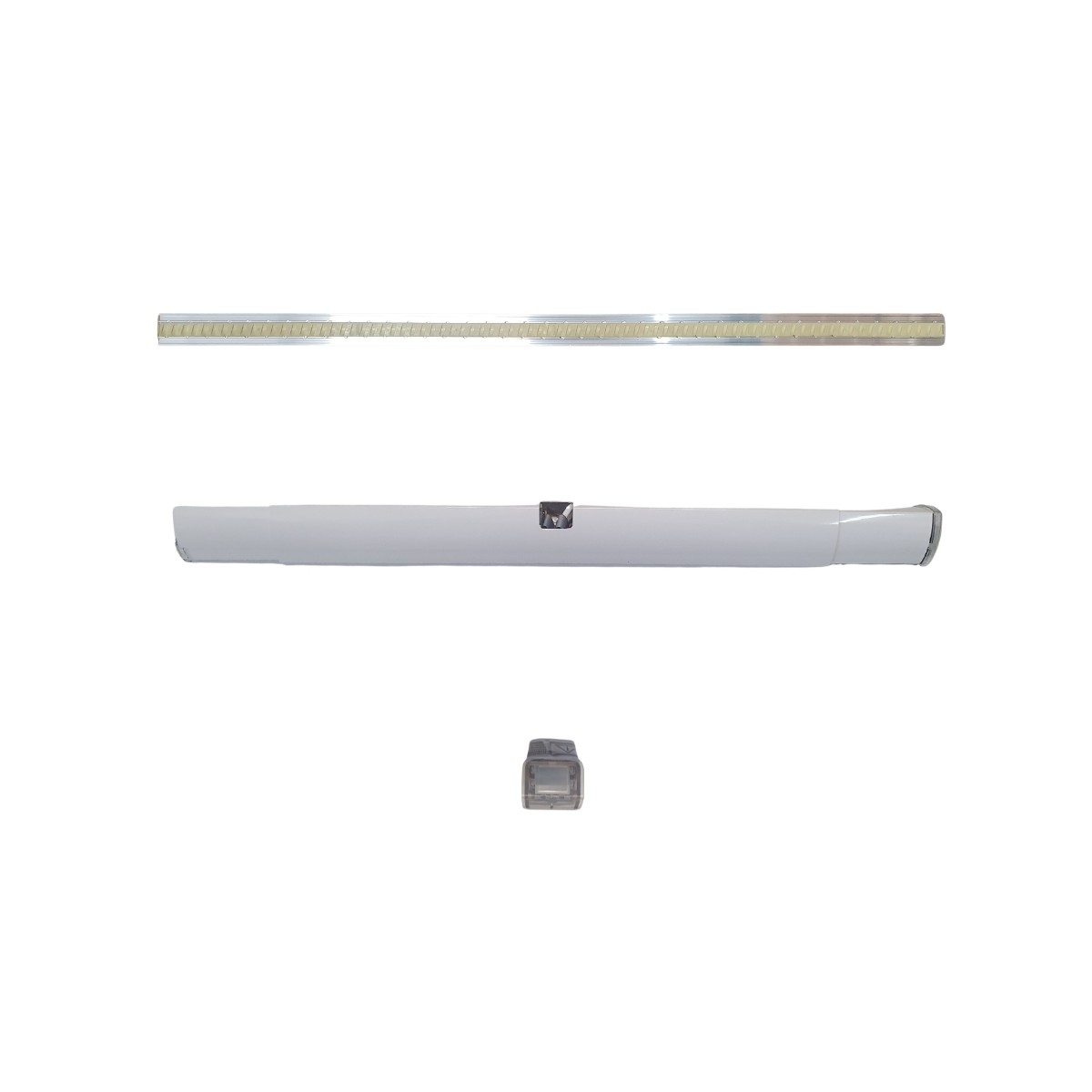

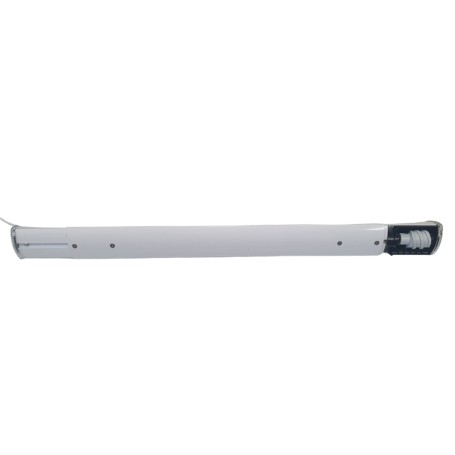

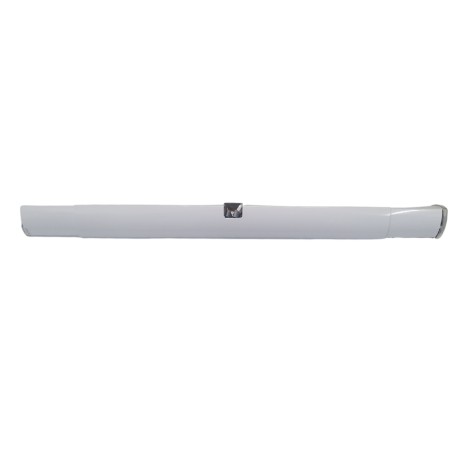

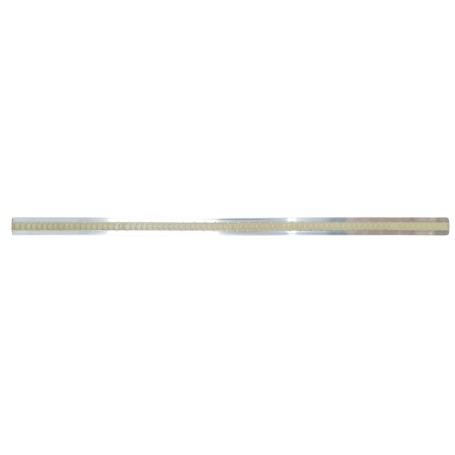

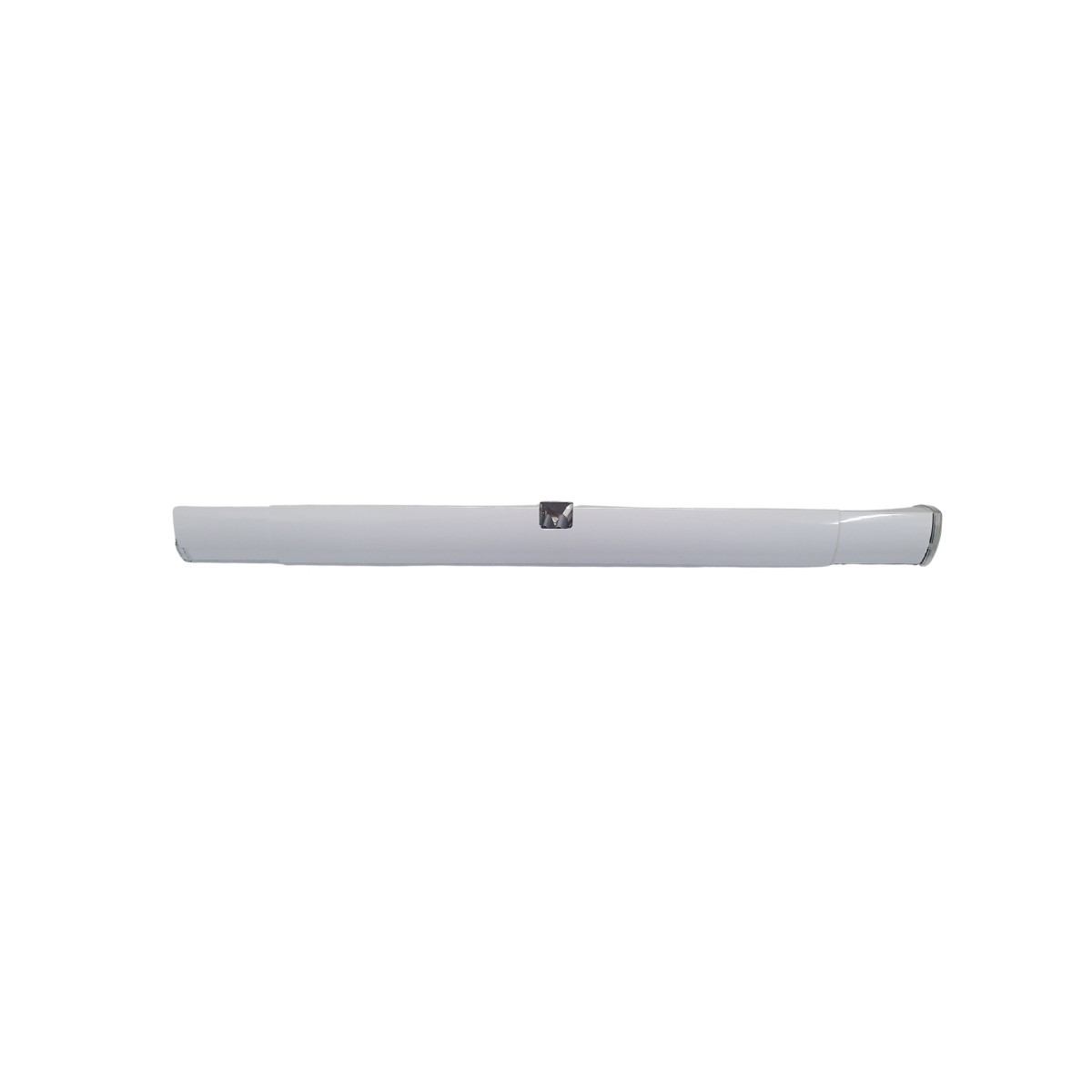

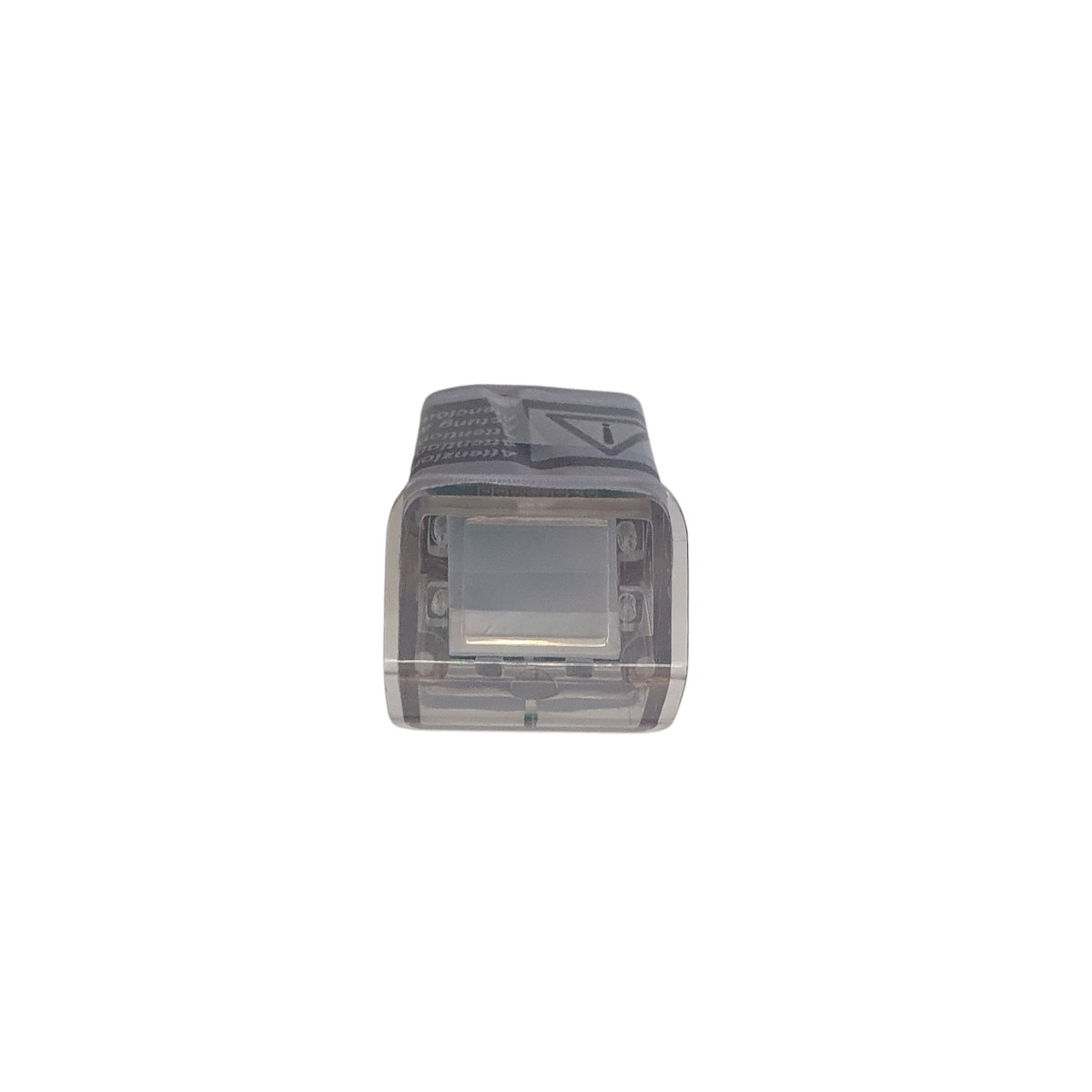

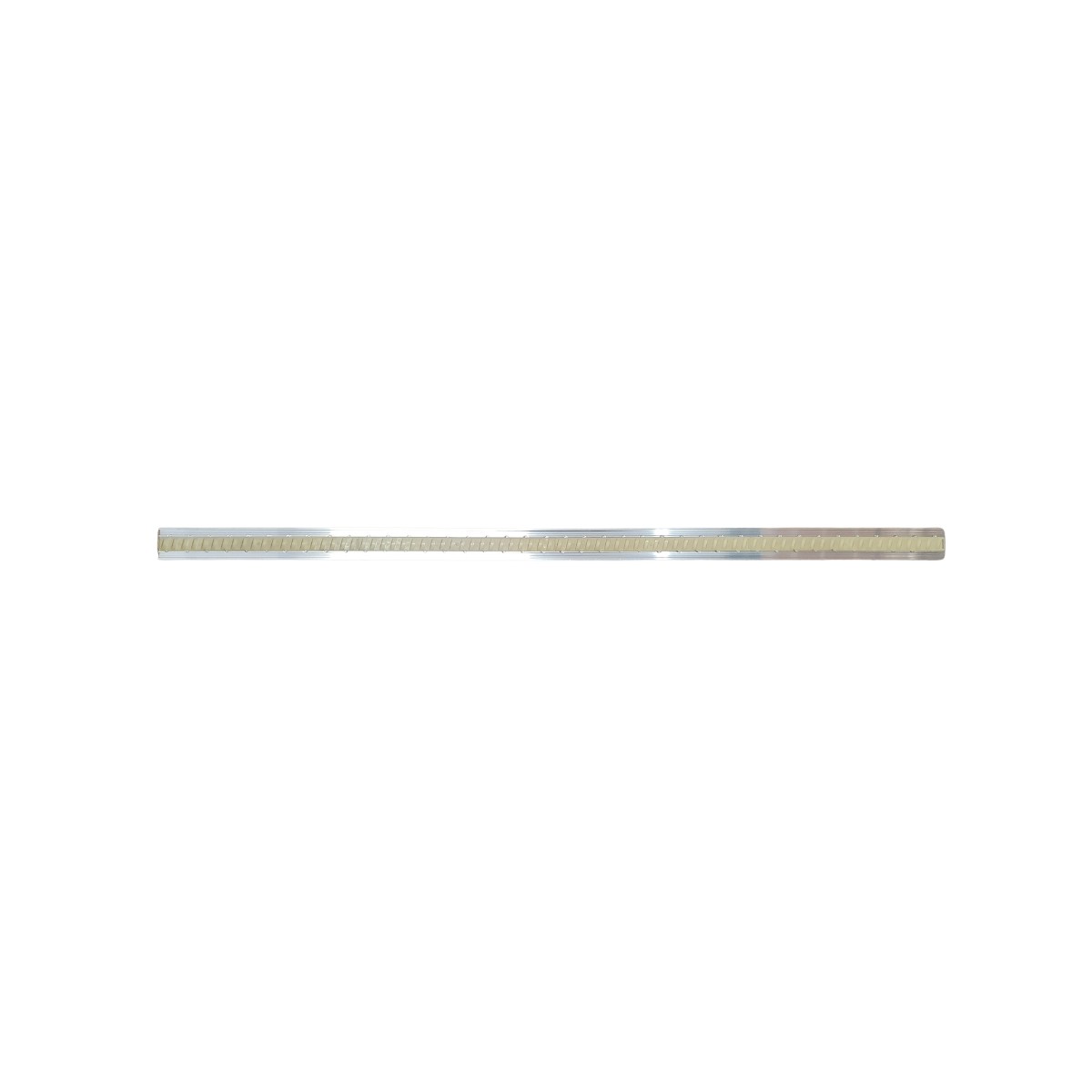

V1E Complete operator for retractable sliding door max 1000 mm WHITE

Ideal automation for retractable sliding doors (casket model or similar). This type of automation is installed inside the door posts and is telescopic, so it can be reduced up to 700 mm in width or extended up to 1000 mm.

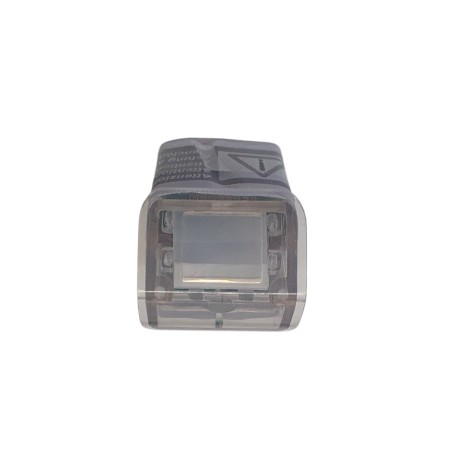

The entire automation system is integrated, even the infrared detector that is used for opening. The detector is located inside the crossbar, so another detector must be purchased separately if necessary, or a button can be provided to open the door on the opposite side of the crossbar.

The system has an exclusive motion control that allows it to detect obstacles, which is why it can be mounted without the aid of special photocells or safety sensors.

With the V1E version you cannot use the selector, remote control TS8 functions.

The system has the following technical features:

Supply voltage: 230 V ~ 50/60 Hz

Peripheral Voltage Output: 5 V 80 mA / 24 V 110 mA

Power consumption: 100 mA at 230 V

Power consumption: 15 W

Durability: 200,000 cycles

Open/close speed: according to EN16005 "Low Energy Movement" standard with reference to the weight of the leaf

Leaf weight adjustment: from 150 N to 700 N in steps of 35 N that can be set by the installer

Max thrust force: 67 N

Door open dwell timer: adjustable from 2 sec to 60 sec

Insulation class: class II

Operating Temperature:-5°C + 50°C

Number of doors: 1 DOOR

Maximum flow rate: 700N

Passageway size: 700 ÷ 1000 mm

Overall dimensions: 59x65 mm x Variable length from 700 to 1000 mm
