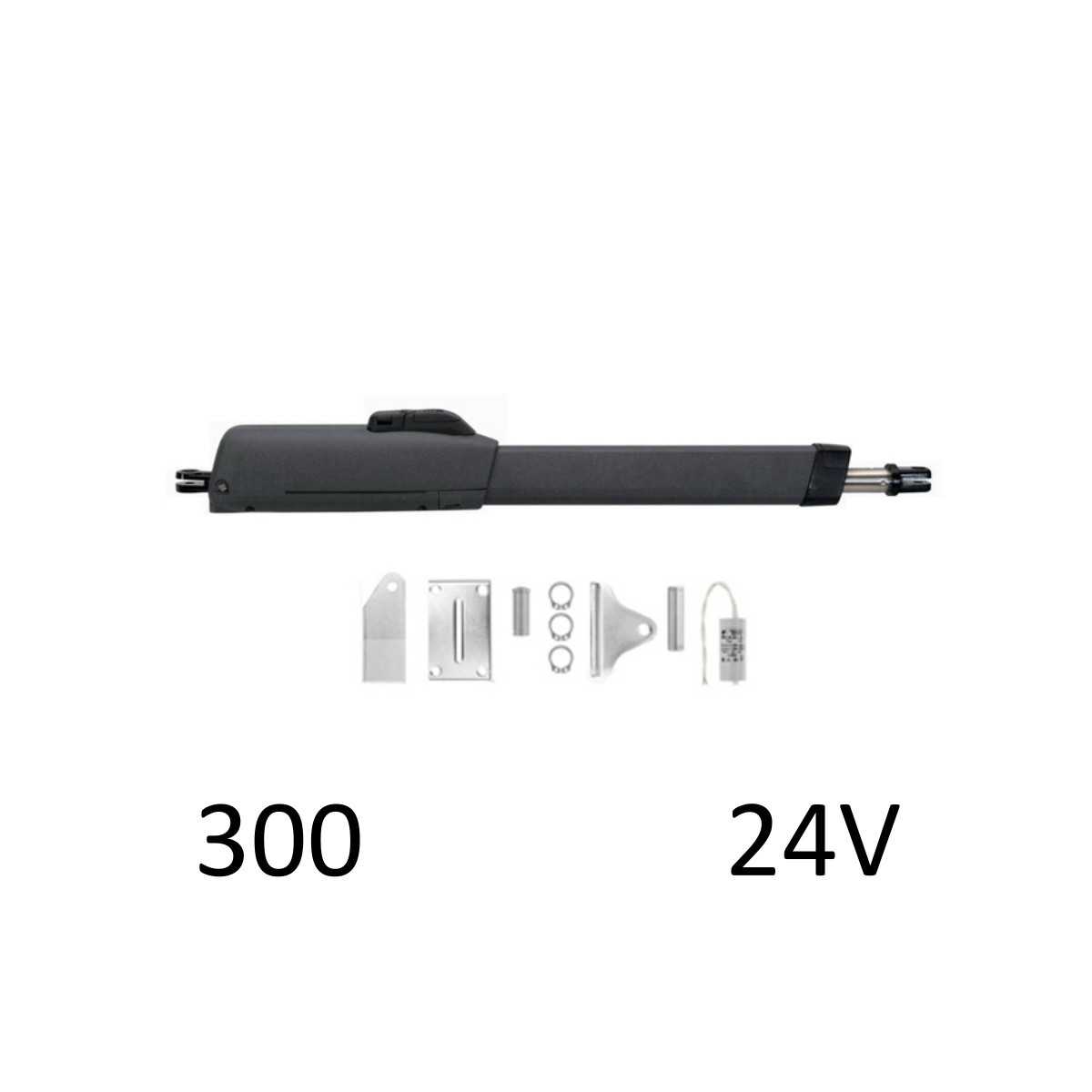

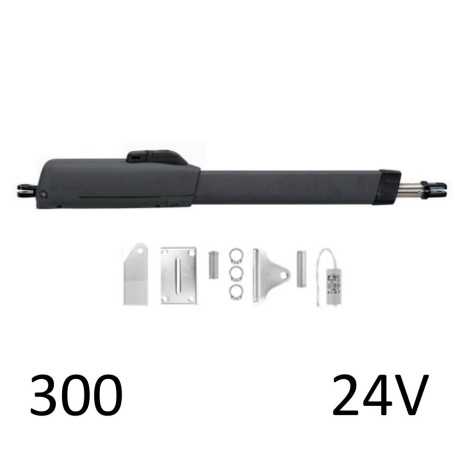

Motor Actuator for swing gates MISTRAL 324 ENV 24v FAAC GENIUS 6170178

GENIUS 6170178 Mistral

- Available in 230V and 24V version
- Doors up to 4 meters
- The 24V model incorporates the ENV function (Virtual Nominal Encoder - PATENTED)
- G-WAY system in the 24V version (with Brain 15 card) or in the 230V version (with Brain 19 board)
- Safety PROcoder (with Brain 19 and Brain 15 board)
- Unlocking with lever and access with personalized key
- Internal kinematics composed of bronze crown and steel worm screw
- Slowdowns in opening and closing in both versions
- Reversible version
- Horizontal cable outlet (installation close to the floor)
- Double layer of painting.

SPECIFICATIONS:
Power supply (V): 230
Electric motor (V): 24
Nominal power (W): 35
Current (A): 3
Thermo-protection (C): -
Inrush capacitor (μF): -
Thrust (from N): 150
Stroke (mm): 300
Speed (cm/sec.): 2.1
20C usage frequency: continuous
Operating Temp (C): -20 +55
Degree of protection: IP54
Weight (kg): 7.5

Warranty 24 Months
