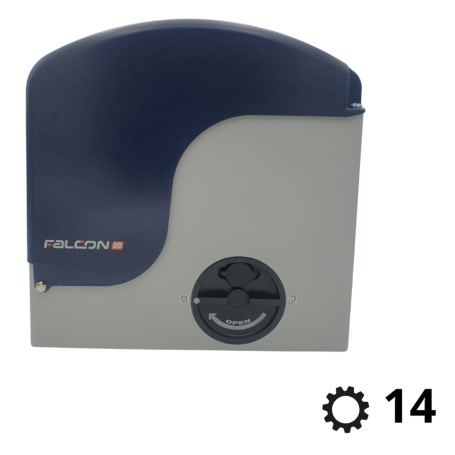

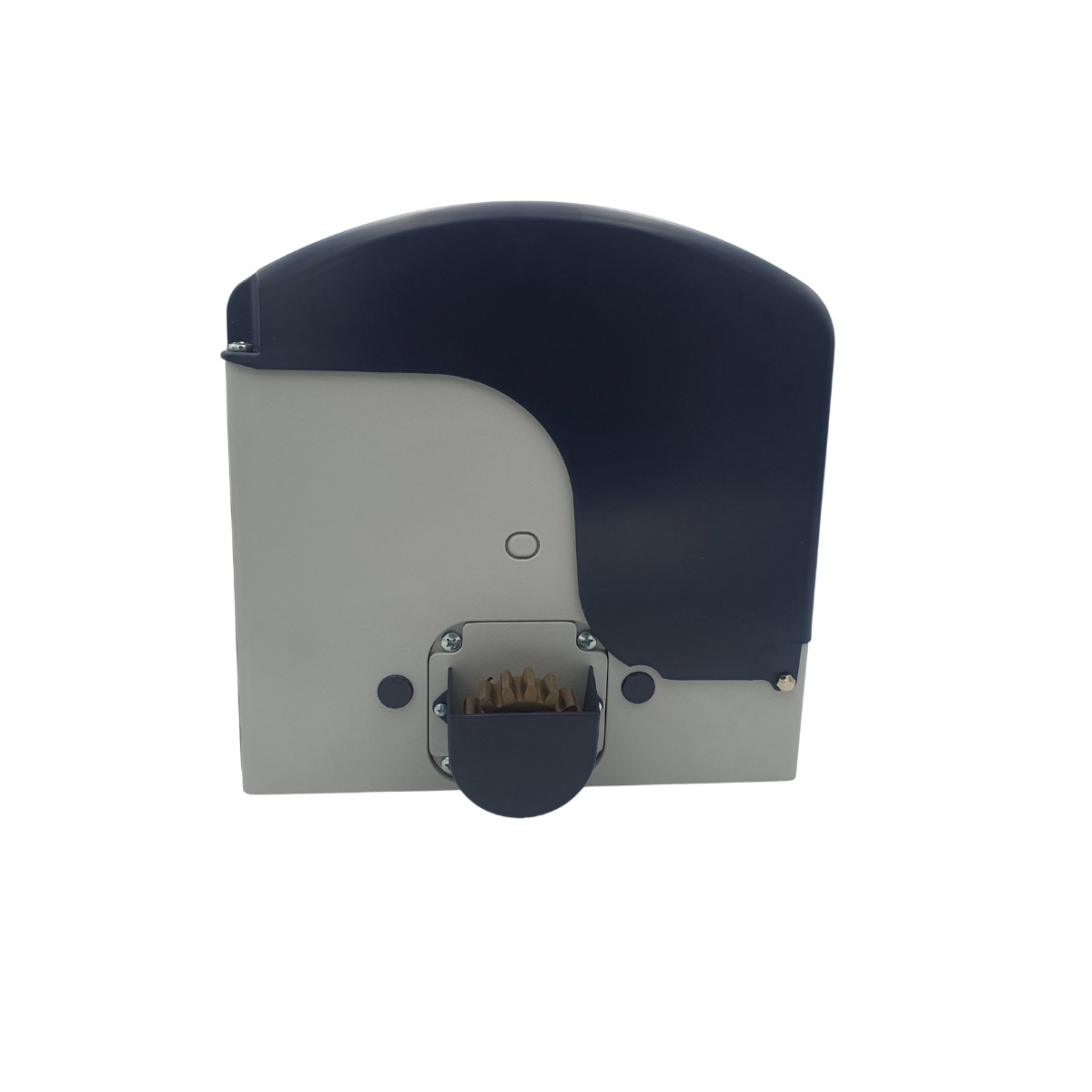

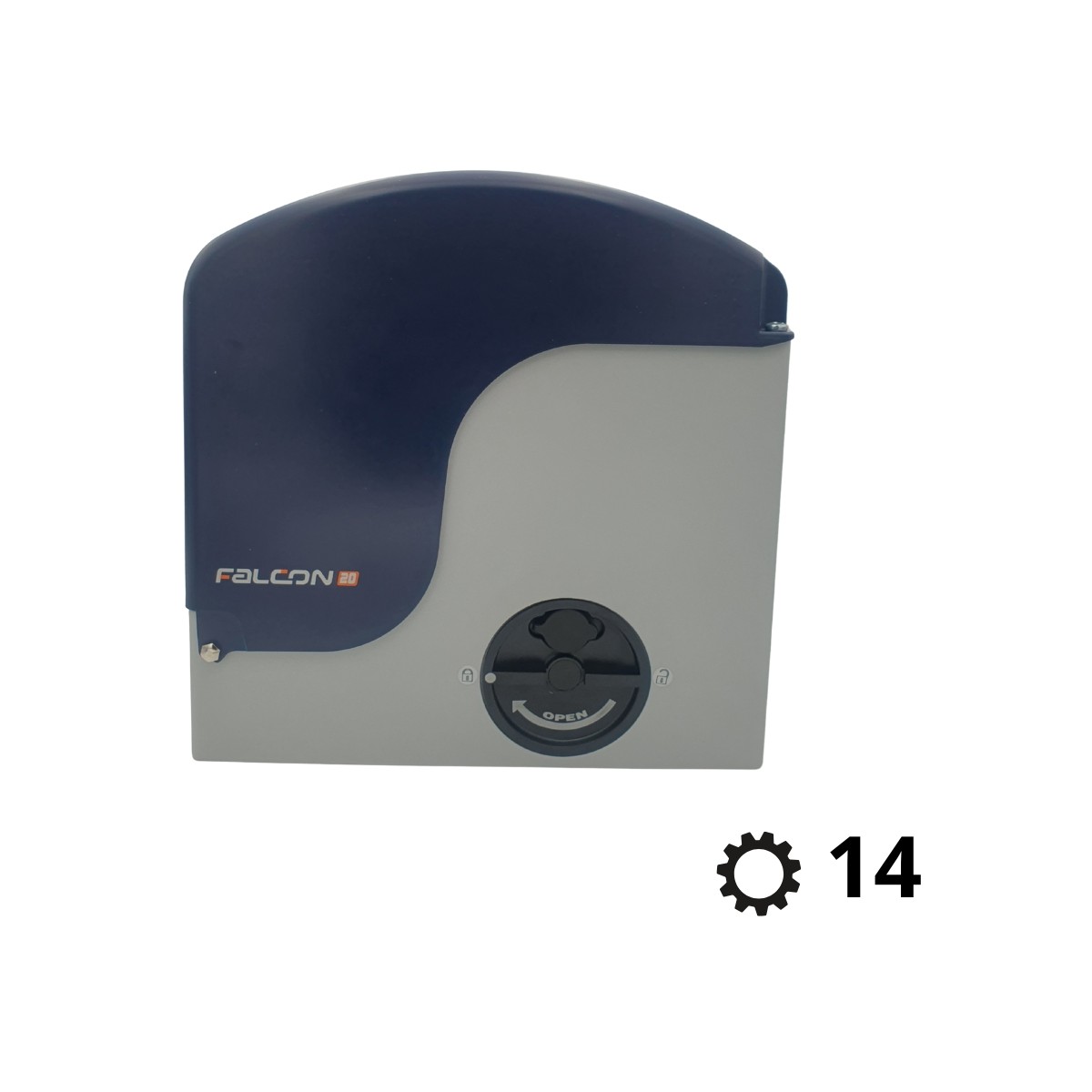

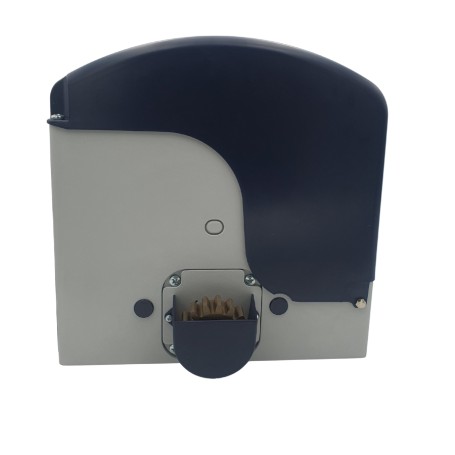

Falcon M14 230V GENIUS Sliding Motor for Gates up to 1400 kg - 6110002

The GENIUS Falcon M14 sliding motor is designed for the automation of sliding gates up to 1400 kg. Powered by 230V, it combines power, reliability and ease of installation, making it ideal for residential, condominium or semi-professional contexts.

The reducer body, painted with polyester powders, ensures effective protection against atmospheric agents. Inside, the kinematics are composed of a bronze crown and a steel worm screw, to ensure smooth, silent and long-lasting transmission of movement.

Equipped with magnetic limit switches and manual release with a customized key, the Falcon M14 is designed for the installation of an encoder for obstacle detection, increasing the safety of the system.

The electronic board is housed in a transparent protective case, with programming buttons accessible from the outside. The rotary control panel simplifies the management and configuration of the automation.

Technical characteristics – Falcon M14:

• Power supply: 230V

• Electric motor: 230V

• Rated power: 650 W

• Current consumption: 2.80 A

• Temperature protection: 140 °C

• Capacitor: 16 μF

• Maximum torque: 35 Nm

• Sprocket thrust: from 110 N

• Sprocket Type: Z16 Module 4

• Angular speed: 10 m/min

• Frequency of use at 20°C: S3 - 40%

• Operating temperature: -20°C to +55°C

• Degree of protection: IP44

• Weight: 14 kg

Main features and benefits:

• Prepared for encoders with obstacle detection

• Magnetic limit switches for precise adjustments

• Rotary control panel for easy accessibility

• Rotary release with custom key

• Robust design with powder coating

The Falcon M14 GENIUS is the ideal solution for automating medium and large sliding gates, with the guarantee of a reliable, safe product that complies with professional quality standards.
