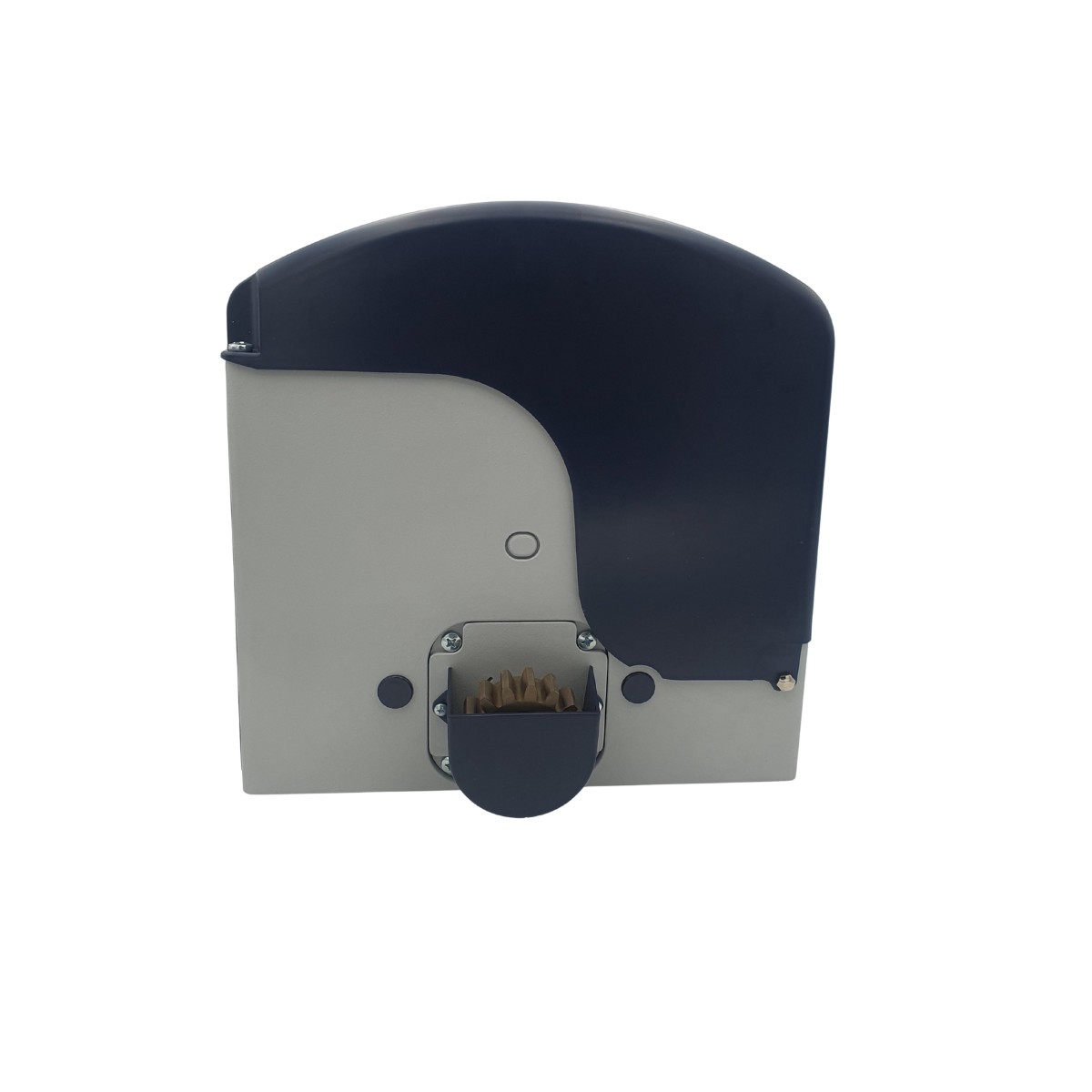

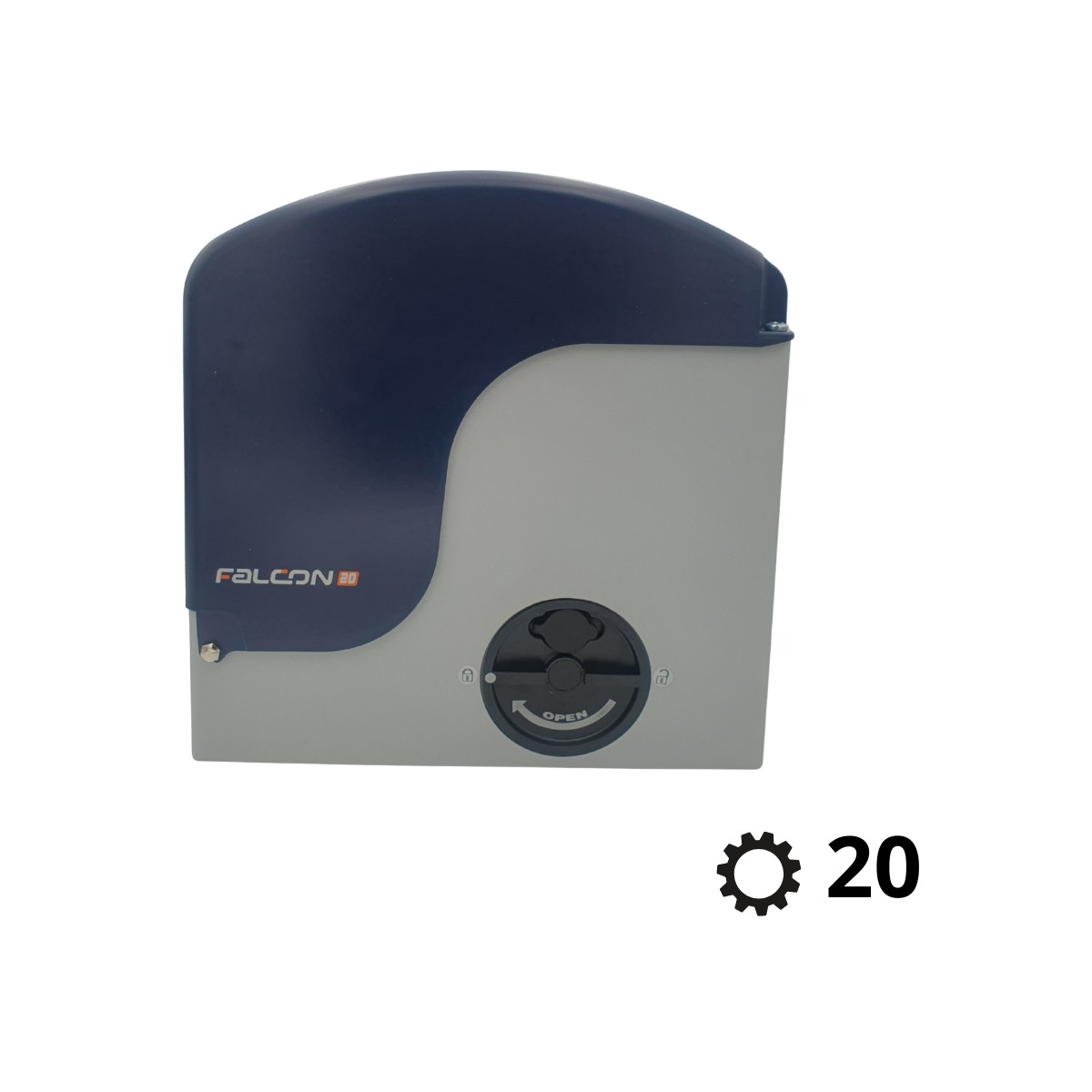

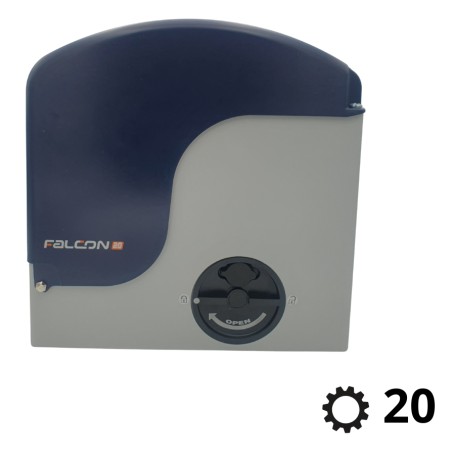

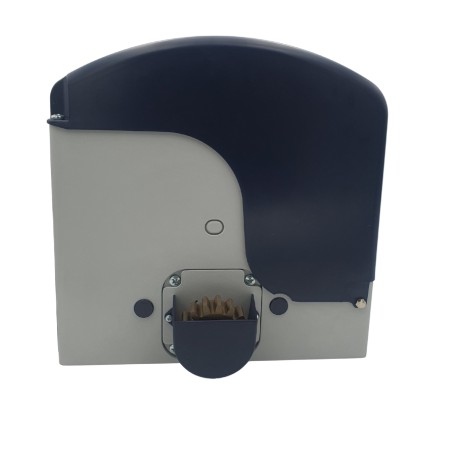

Falcon M20 230V GENIUS Sliding Motor for Gates up to 2000 kg - 6110022

The Falcon M20 GENIUS sliding motor is designed for the automation of large sliding gates up to 2000 kg. Powered by 230V, it is the ideal choice for installations in industrial, commercial or residential intensive contexts, where power and reliability are fundamental requirements.

The external structure is treated with polyester powder coating, which protects the engine from atmospheric agents. Inside, the kinematics consist of a sturdy bronze crown and a steel worm screw, ensuring mechanical strength, silence and durability.

The Falcon M20 is equipped with magnetic limit switches, rotary release with customized key and predisposition for the installation of an encoder, useful for detecting obstacles during the movement of the leaves. The rotating control panel and the electronic board protected by a transparent container with external buttons make installation and programming simple and quick.

Technical characteristics – Falcon M20:

• Power supply: 230V

• Electric motor: 230V

• Rated power: 650 W

• Current consumption: 2.80 A

• Temperature protection: 140 °C

• Capacitor: 16 μF

• Maximum torque: 35 Nm

• Sprocket thrust: from 110 N

• Sprocket Type: Z16 Module 4

• Angular speed: 10 m/min

• Frequency of use at 20°C: S3 - 40%

• Operating temperature: -20°C to +55°C

• Degree of protection: IP44

• Weight: 14 kg

Strengths:

• Ideal for gates up to 2000 kg

• Prepared for encoders with obstacle detection

• Magnetic limit switches for greater precision

• Rotary control panel for easy programming

• Manual release with custom key

• Internal bronze and steel mechanics for maximum durability

The GENIUS Falcon M20 is a powerful and reliable motor, designed to ensure high performance and safety even in the most demanding conditions.
