Underground actuator for swing gates DIABLO 24V FAAC GENIUS 6170082
Irreversible Motor, 24V, leaf 2,5 m., residential use
Lowest price within 30 days before promotion. €189.00
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...
Read more
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...
Read more
Holiday shipping: what you need to know and why we have chosen to thank you
During the Christmas holidays, shipments may be delayed due to public holidays and logistical difficulties...
Read more

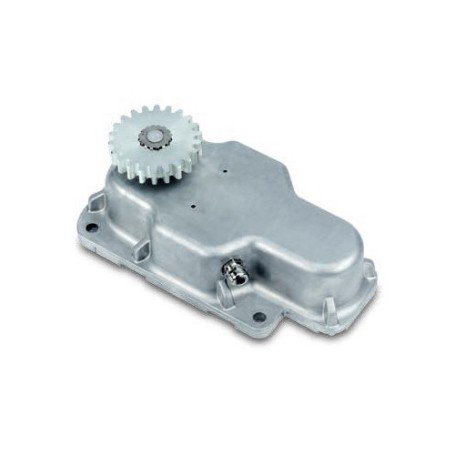

GENIUS 6170082 Diablo
- Irreversible gearmotor completely concealed and extremely compact.
- Unique version for openings up to 180° as standard.
- Handles doors weighing max 250 kg and up to 2.5 m.
- Absolute encoder (optional) that detects the position of the door and guarantees maximum anti-crushing safety.
- Virtual encoder system patented via BUS G-WAY (with Brain 15 equipment).
- Adjustable mechanical beats (optional).
SPECIFICATIONS:
Power supply (V): 230
Electric motor (V): 24
Nominal power (W): 140
Max Torque(Nm): 200
Rated torque(Nm): 130
Angular velocity (sec): 6
Frequency of use at 20°: continuous
Operating Temp (C): -20 +55
Degree of protection: IP67
Weight (kg): 6.5
Warranty 24 Months
8055195021554
GEN-6170082
