Item Number: 142L
MOD.: ZERO. K
GENERAL DESCRIPTION ZERO SERIES. K:
Automatic return lock: standard cylinder
MAXIMUM SECURITY
Shell in powder-coated metal alloy and high resistance to atmospheric agents. Opening is allowed only with the key inserted. Electronic board on board, with terminal block and NA and NC contacts. Dimensions and limited spaces: minimum protrusion of 23 mm from the wall in the recessed version.
A DESIGN CAPABLE OF ILLUMINATING
Backlit, with white LED light frame. Complete line of balusters and supports for fixing.
PRODUCT DESCRIPTION FADINI 142L:

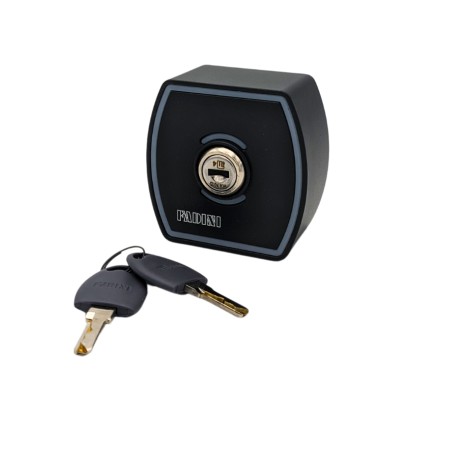

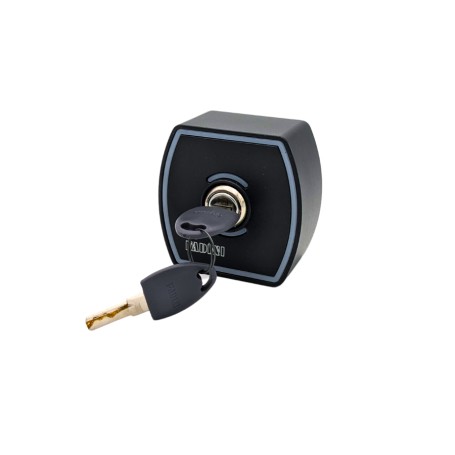

Wall key selector, with standard cylinder and two keys (1 pc./pack)
SPECIFICATIONS:
Supply voltage (Vac/dc): 24
Absorption (mA): max 10
Operating temperature (°C): -30 ÷ +70
Microswitch contact: triple layer gold
Maximum load on micro (mA - Vdc): 100 - 30
IP protection degree: 54
Item Number: 142L
MOD.: ZERO. K
GENERAL DESCRIPTION ZERO SERIES. K:
Automatic return lock: standard cylinder
MAXIMUM SECURITY
Shell in powder-coated metal alloy and high resistance to atmospheric agents. Opening is allowed only with the key inserted. Electronic board on board, with terminal block and NA and NC contacts. Dimensions and limited spaces: minimum protrusion of 23 mm from the wall in the recessed version.
A DESIGN CAPABLE OF ILLUMINATING
Backlit, with white LED light frame. Complete line of balusters and supports for fixing.
PRODUCT DESCRIPTION FADINI 142L:
Wall key selector, with standard cylinder and two keys (1 pc./pack)
SPECIFICATIONS:
Supply voltage (Vac/dc): 24
Absorption (mA): max 10
Operating temperature (°C): -30 ÷ +70
Microswitch contact: triple layer gold
Maximum load on micro (mA - Vdc): 100 - 30
IP protection degree: 54
