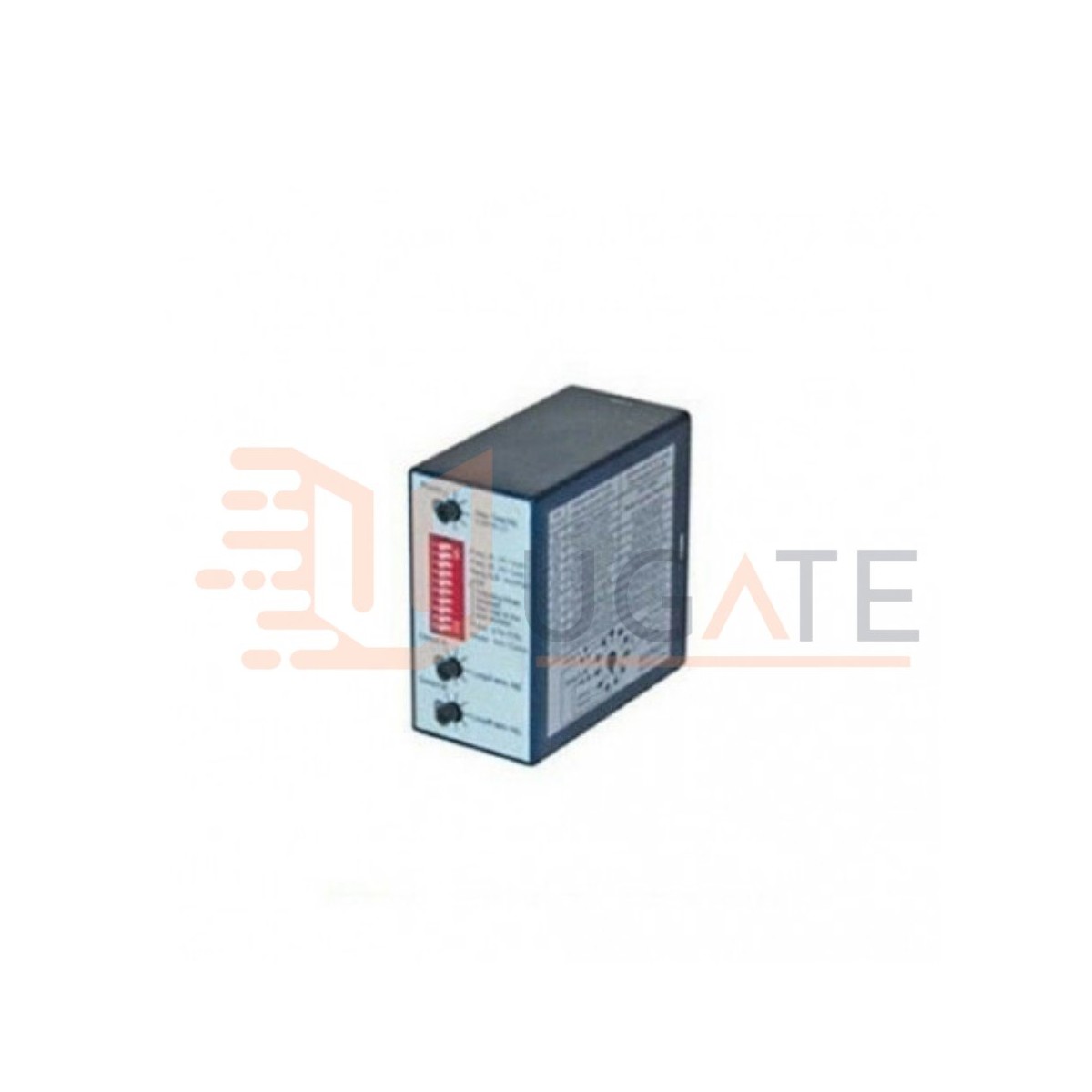

Two-channel magnetic detector for coil to be buried RMG2 FAAC GENIUS 6100132

GENIUS 6100132

High-performance single- or dual-channel vehicle inductive detection system,

Installed in a compact enclosure with connections via a standard round industrial-grade 11-PIN connector.

It is possible to adjust the intervention sensitivity of the system to adapt to any type of vehicle.

- Automatic frequency agreement.
- When switched on, control and measurement of the oscillation frequency of each coil.
- Four frequency settings.
- Continuous updating of the frequency of work.
- Interruption or short circuit signaling coils.
- Multifunction signaling LEDs.
- Adjustment by potentiometers.
- DIN rail application.

N.B.
Magnetic detectors must be installed in suitable containers For the coil use a single-core cable of 1.5 mm cross-section.
The coil must be at least 15 cm away from metal objects, at a depth of no more than 5 cm from the surface of the final pavement.

SPECIFICATIONS:
Power supply (Vac / Vdc): 12 - 24
Power consumption (W): < 2,5
Ambient temperature: -30°C + 70°C
Spiral inductivity (H): 20 - 1000
Frequency range (kHz): 20 - 130 kHz on 2 levels
Intervention sensitivity: from 0.005% to 0.5% (/f) in 250 stages
Reaction time: 50ms per channel
Time: from 1 min. to infinity in 250 stages
Power cable coil (m): < 100
Max. relay contact capacity: 230 Vac - 5A (resistive)
Pulse duration (ms): 100 or 500
Dimensions (mm): 77 x 40 x 75 (h)
Managed spires: 2

Warranty 24 Months
