Control unit for one or two irreversible 24 V motors with encoder, equipped with BlueBUS NICE technology, prepared for Opera and Solemyo
1658497831640-750
NIC-MC824H
€275.14
Tax included
In Stock

Lowest price within 30 days before promotion. €275.14

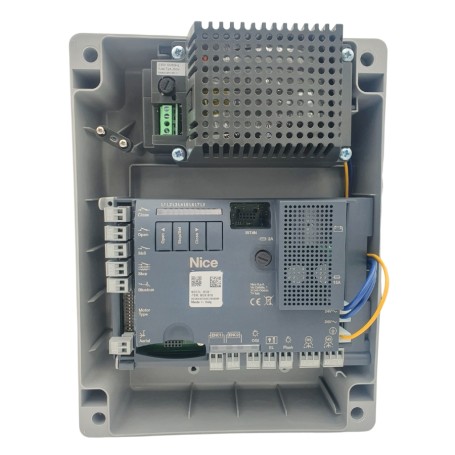

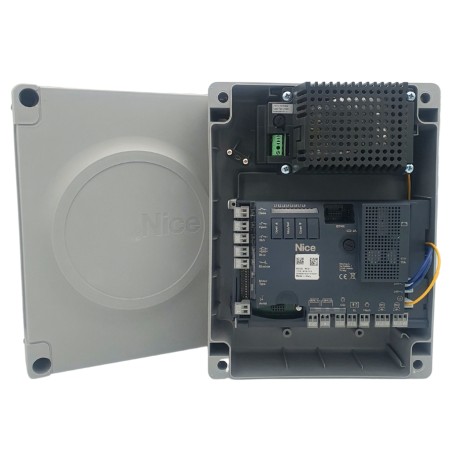

NICE MC824H Moonclever
Equipped with BlueBUS NICE technology, compatible with the Solemyo solar power system (MC824H, MC824L) and the Opera system for the management, programming and diagnostics of automations, even remotely.
Compatible with the Opera system which, thanks to the O-View multifunction display (which can be housed inside the box) allows you to customize the system by changing the opening and closing positions, the phase shifts of the doors and the slowdowns, diversifying for each motor parameters such as strength, speed, sensitivity to obstacles.
Microprocessor logic: to the advanced functions of the NICE systems (gradual start and slowdown, automatic storage of both limit positions and the pedestrian door function) the Moonclever control panels add the advantages of the Opera system.
Safe and reliable: thanks to the obstacle detection with double technology along the entire stroke and the predisposition to connect the latest generation of resistive sensitive edges.
Intelligent: signaling when switching on the correct power supply and proper functioning of the plant; automatic diagnosis of anomalies and signaling via flashing light and confirmation LEDs.
Savings and respect for the environment, autonomy: connected to the backup battery or to the Solemyo kit (MC824H, MC824L) the consumption in standby mode is reduced to only 0.1 W.
Very simple installation: thanks to the BlueBUS system that allows connections to only two wires between the control unit, motors and accessories.
No blackout: operation in the absence of power with optional batteries (PS324) that can be inserted inside the control panel.
Radio receiver: designed for the insertion of SM plug-in receivers.

SPECIFICATIONS:
Mains power supply (Vac 50/60 Hz): 230 10%
Battery power (Vdc): 21 28
Max motor power and current (VA; A): 360 (W); 15
Max service current 24 V (A): 0.2
Max flashing output voltage and power (V; W): 12; 21
Max voltage and power AC indicator light (V; W): 12; 2
Max voltage and power output electric lock (Vac; VA): 12; 15
Working time TL(s): -
TP break time (s): 1 250
Delay time 1 motor in opening TRA (s): Programmable
Delay time 2 motor in closing TRC (s): Programmable
TCOR courtesy light time(s): 0:250
TPRE pre-flashing time (s): 0:10
Force regulation (%): -
Obstacle detection (sensitivity): min max
Container dimensions (mm): 230x125x300 h

Warranty 24 Months
