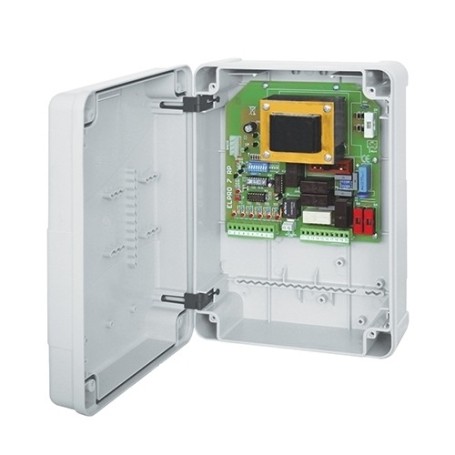

Control programmer for NUPI 66 FADINI ELPRO 7 RP 6610L
Lowest price within 30 days before promotion. €189.00
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...Read more -
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...Read more
-
Summer Break ugateshop.it: what to know about shipping, support, and discounts
We’re also taking a short break in August, but our shop remains online at all times. In this article, you’ll find all...Read more
FADINI
Item Number: 6610L
MOD.: ELPRO 7 RP
PRODUCT DESCRIPTION FADINI 6610L:
COMPATIBILITY
Electronic control programmer for NUPI 66.
OPERATING LOGIC
Automatic, semi-automatic, automatic stepper step, pedestrian and preflashing.
MAIN FUNCTIONS
Simplified programming with a single button: torque limiter, electric lock power supply, radio card mount, photocell connection, open-stop-close push-button panel, green/red diagnostic LEDs for easy evaluation of the automation status, low and high voltage fuses, time storage. Container dimensions 210x295x110 mm. Protection radio IP 64. Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH power supply (Vac - Hz): 230 - 50
3PH board power supply (Vac - Hz): -
Max motor power (W): 500
Courtesy light output (Vdc - mA): -
Photocell/selector/radio receiver output (Vdc - mA): 24 - 500
Indicator light output (Vdc - W
