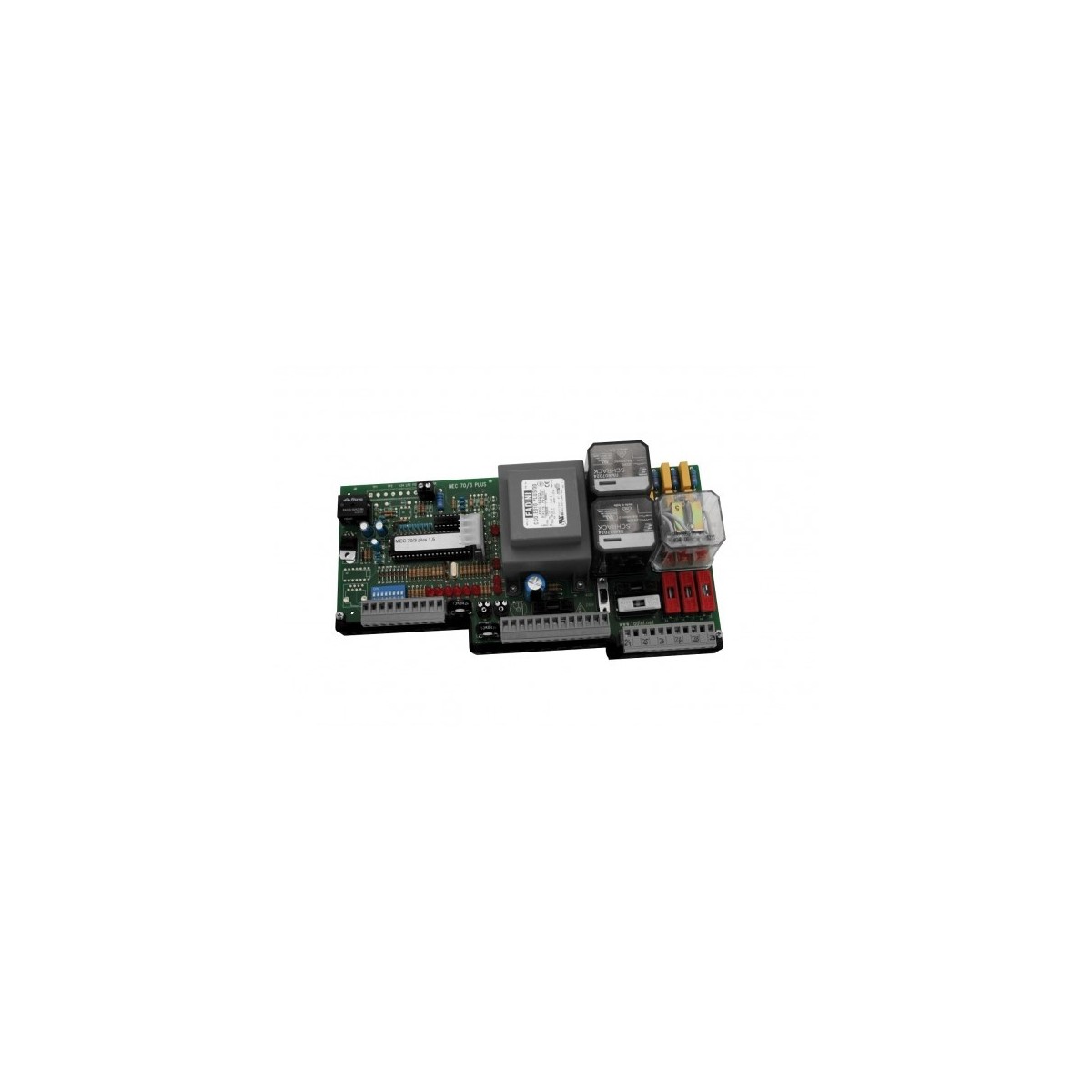

Control programmer for MEC 200 FADINI ELPRO 70/3 PLUS 7060L
Lowest price within 30 days before promotion. €195.47
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...
Read more
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...
Read more
Holiday shipping: what you need to know and why we have chosen to thank you
During the Christmas holidays, shipments may be delayed due to public holidays and logistical difficulties...
Read more
FADINI
Item Number: 7060L
MOD.: ELPRO 70/3 PLUS
PRODUCT DESCRIPTION FADINI 7060L:
COMPATIBILITY
Electronic control programmer for MEC 200.
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian and pre-flashing.
MAIN FUNCTIONS
Intuitive adjustments via trimmer and dip-switch: power supply, radio card mount, photocell connection, preparation for external clock, automation status signaling. Single-phase and three-phase power supply. Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH power supply (Vac - Hz): 230 - 50
Power supply 3PH card (Vac - Hz): 230/400 - 50
Max motor power (W): 375
Courtesy light output (Vac): Relay 12
Photocell/selector/radio receiver output (Vac - mA): 24 - 500
Indicator light output (Vac - W): 24 - 3
Output for DSA control (Vac - mA): -
Flashing output (Vac - W): 230 - 25
Working Time(s): 5 - 150
Pause Time(s): 5 - 150
Closing door delay time (s): -
Pedestrian opening time (s): 3 - 30
Item Number: 7060L
MOD.: ELPRO 70/3 PLUS
PRODUCT DESCRIPTION FADINI 7060L:
COMPATIBILITY
Electronic control programmer for MEC 200.
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian and pre-flashing.
MAIN FUNCTIONS
Intuitive adjustments via trimmer and dip-switch: power supply, radio card mount, photocell connection, preparation for external clock, automation status signaling. Single-phase and three-phase power supply. Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH power supply (Vac - Hz): 230 - 50
Power supply 3PH card (Vac - Hz): 230/400 - 50
Max motor power (W): 375
Courtesy light output (Vac): Relay 12
Photocell/selector/radio receiver output (Vac - mA): 24 - 500
Indicator light output (Vac - W): 24 - 3
Output for DSA control (Vac - mA): -
Flashing output (Vac - W): 230 - 25
Working Time(s): 5 - 150
Pause Time(s): 5 - 150
Closing door delay time (s): -
Pedestrian opening time (s): 3 - 30
