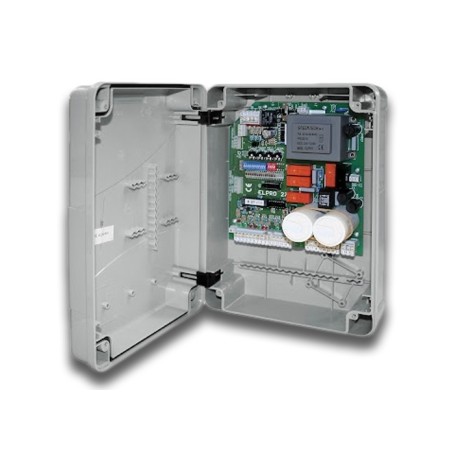

Control programmer for gates FADINI ELPRO 27 HP - 110 V 7048L
Lowest price within 30 days before promotion. €215.79
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...Read more -
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...Read more
-
Summer Break ugateshop.it: what to know about shipping, support, and discounts
We’re also taking a short break in August, but our shop remains online at all times. In this article, you’ll find all...Read more
FADINI
Item Number: 7048L
MOD.: ELPRO 27 HP - 110 V
PRODUCT DESCRIPTION FADINI 7048L:
COMPATIBILITY
Electronic control programmer for motors for swing gates with one or two leaves, with or without limit switches. For motors for sliding gates with one or two leaves (max 0.5 HP with mechanical clutch). 110 Vac card power supply.
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian, water hammer and pre-flashing.
MAIN FUNCTIONS
Intuitive adjustments via trimmers and dip-switches: electric lock power supply, photocell self-test (DSA), safety rib self-test (DACS), traffic light preparation for up to three lights, time storage, automation status signaling. Container dimensions 210x295x110 mm. Protection radio IP 64. Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH board power supply (Vac - Hz): 110 - 50/60
3PH board power supply (Vac - Hz): -
Max motor power (W): 750
Courtesy light output (Vac - W): 230 - 100
Photocell/selector/radio receiver output (Vac): 24
Indicator light output (Vac - W): 24 - 3
Output for DSA control (Vac - mA): 24 - 150
Flashing output (Vac - W): 230 - 25
Working Time(s): 0 - 120 (sliding)
Item Number: 7048L
MOD.: ELPRO 27 HP - 110 V
PRODUCT DESCRIPTION FADINI 7048L:
COMPATIBILITY
Electronic control programmer for motors for swing gates with one or two leaves, with or without limit switches. For motors for sliding gates with one or two leaves (max 0.5 HP with mechanical clutch). 110 Vac card power supply.
OPERATING LOGIC
Automatic, semi-automatic, automatic step by step, man present, pedestrian, water hammer and pre-flashing.
MAIN FUNCTIONS
Intuitive adjustments via trimmers and dip-switches: electric lock power supply, photocell self-test (DSA), safety rib self-test (DACS), traffic light preparation for up to three lights, time storage, automation status signaling. Container dimensions 210x295x110 mm. Protection radio IP 64. Operating temperature -20 °C +55 °C.
SPECIFICATIONS:
1PH board power supply (Vac - Hz): 110 - 50/60
3PH board power supply (Vac - Hz): -
Max motor power (W): 750
Courtesy light output (Vac - W): 230 - 100
Photocell/selector/radio receiver output (Vac): 24
Indicator light output (Vac - W): 24 - 3
Output for DSA control (Vac - mA): 24 - 150
Flashing output (Vac - W): 230 - 25
Working Time(s): 0 - 120 (sliding)
