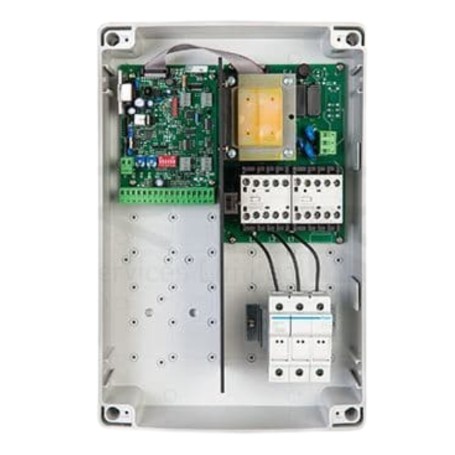

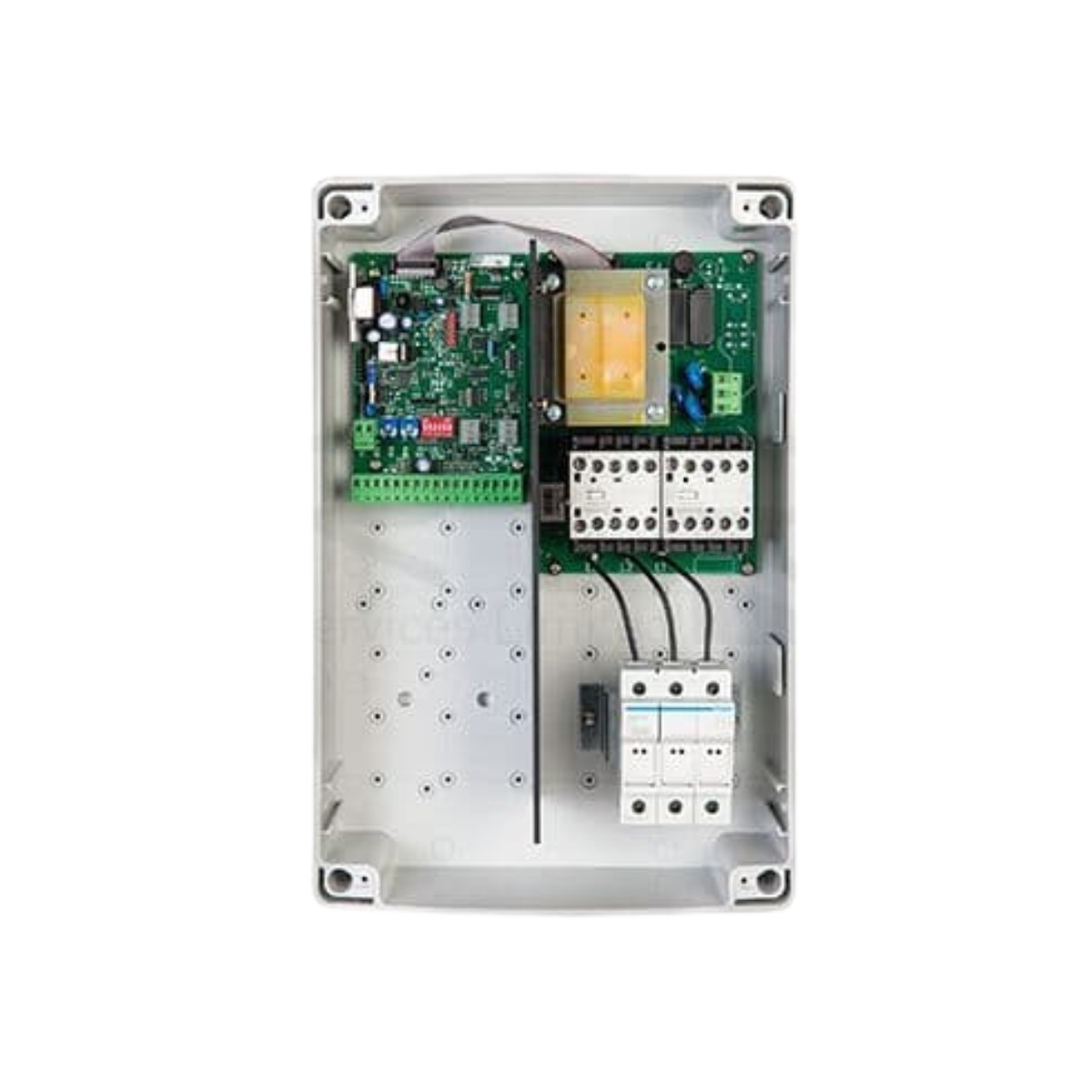

Three-phase control panel 400V CROSS19V CROSS30A DITEC ENTREMATIC E1T NAE1T

DITEC ENTREMATIC E1T NAE1T

Electrical panel for 1 three-phase motor 400 V / 6 A max

400v control panel for controlling a three-phase motor

High reliability thanks to robust contacts and safety test functions

The power supply of the accessories is 24V for greater safety

Removable terminals provide greater comfort during wiring

In the CROSS19V and CROSS30E the panel is able to manage a temperature sensor integrated into the automation

preventing overheating in critical conditions

The small plastic box is particularly suitable for outdoor installations.

CROSS19V CROSS30E compatible engines

Description Control panel for 1 three-phase motor 400V

Frequency 433.92 MHz with BIXR2

Frequency 868.35 MHz with BIXPR2

Mains supply 400 V - 50 Hz

Accessory power supply 24 V / 0.5 A

Degree of protection IP 55

Panel dimensions 187x261x105

Warranty 24 Months
