Equipment Card for swing gates BRAIN 15 24V 230V GENIUS 6100263

GENIUS 6100263 BRAIN 15 24V ex 6100287

The electronic board inside that was sold as a spare part is no longer supplied individually by GENIUS but can only be purchased together with the box and the transformer, thus purchasing this product.

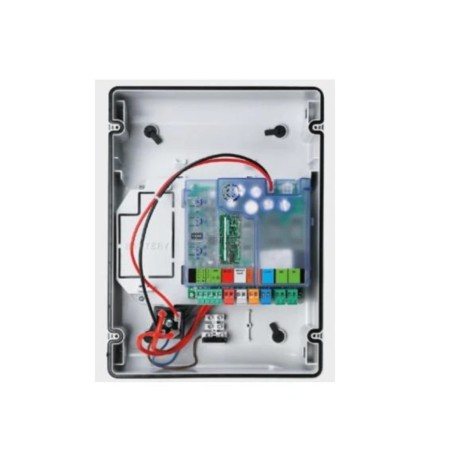

Original control unit GENIUS BRAIN 15 code 6100263

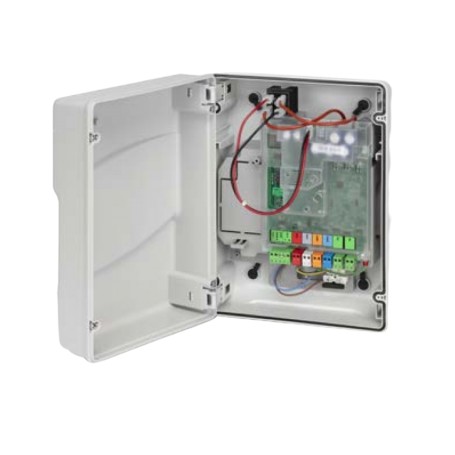

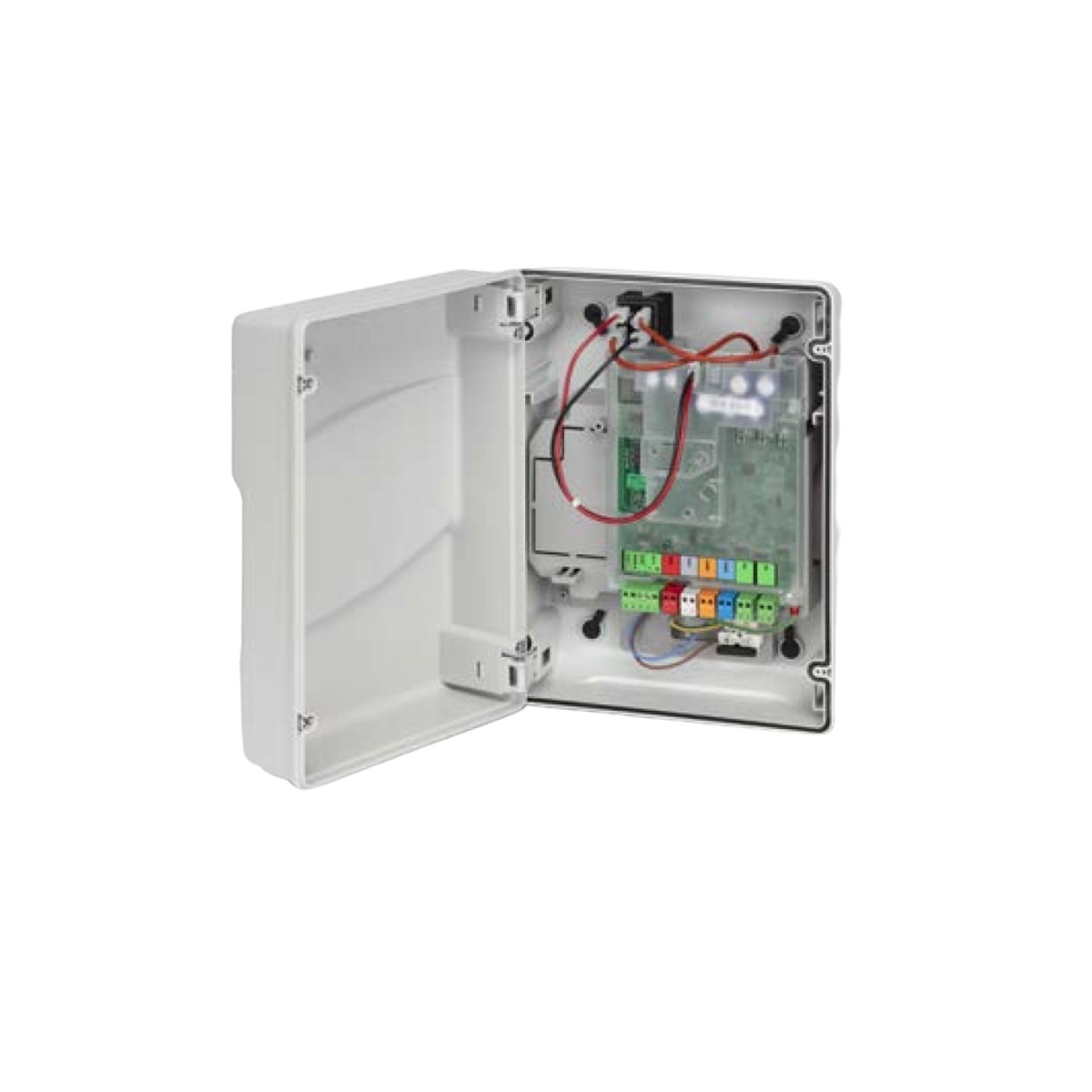

24V electronic board complete with box and transformer, used for FAAC GENIUS motors:

G-BAT 24V

MISTRAL 24V

24V ROLLERBALL

DIABLO 24V

Equipped with 3-pin mount for RQFZ GENIUS radio receivers

With transformer in a watertight container.

SPECIFICATIONS:
Supply voltage (Vac): 230 (+6% -10%) 50Hz
Central supply voltage (Vdc): 24 nominal
Power consumption (W): 4
Max. Motor Load (W): 150 x 2
Max. accessory current (mA): 250
Max. BUS accessory current (mA): 400
Operating Temp.(C): -20C +55C
Protection fuses: F1 = self-resetting; F2 = T2A-250V or T4A-120V
Operating logics: Automatic / Automatic "step by step" / Semi-automatic / Semi-automatic "step by step" / Semi-automatic B / Dead man
Break time: Variable according to learning (max 10 min.)

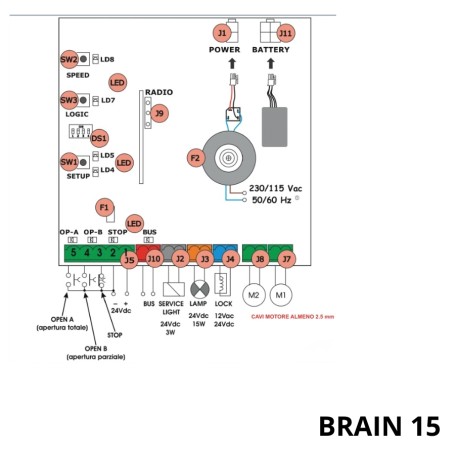

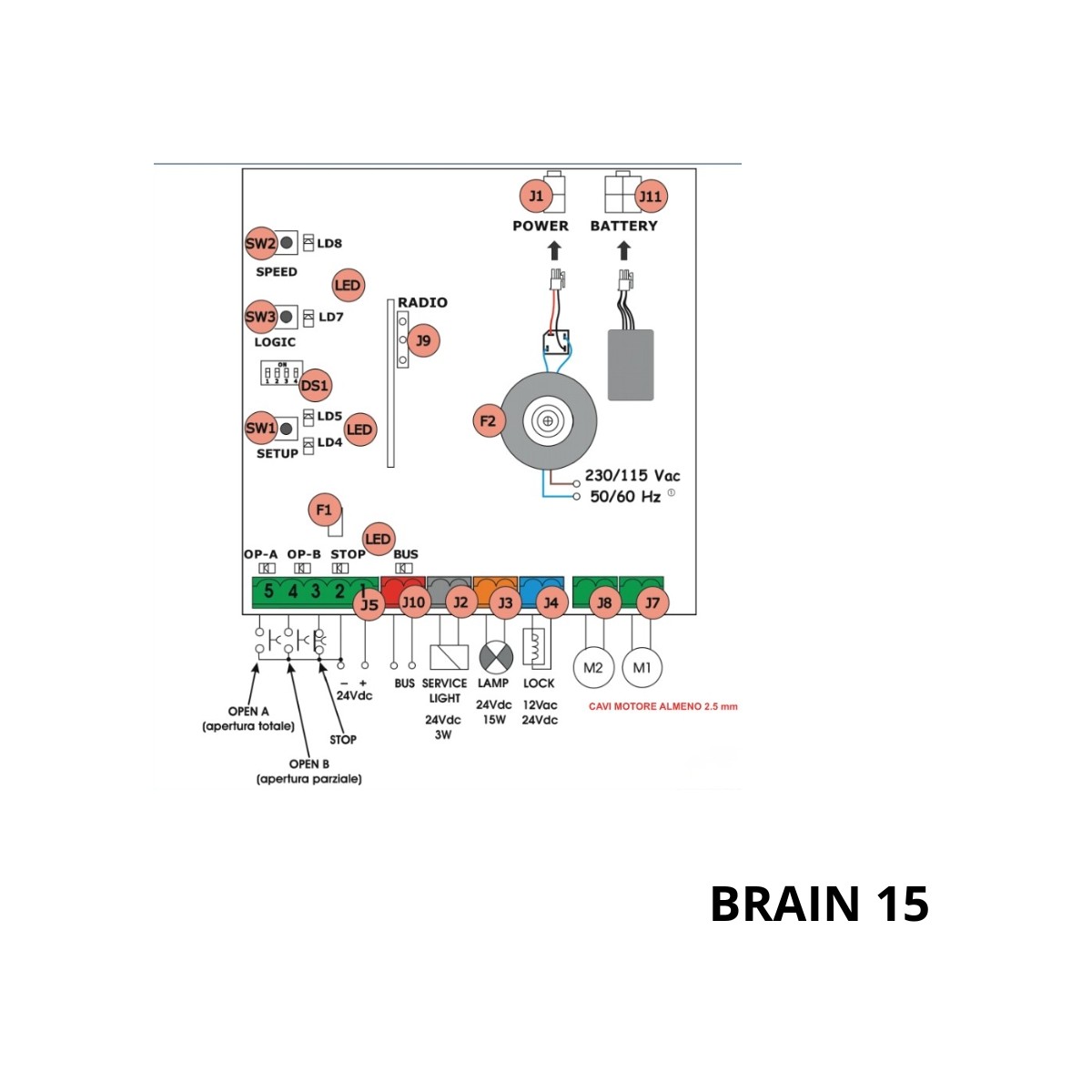

Terminal block inputs: Open A, Open B, Stop, BUS G-WAY (I/O)
Connector Inputs: Power / Battery / 3-pin Radio Module
Terminal block outputs: Motors / Flashing light / Accessories power supply / Electro-lock / Service light contact (90 sec fixed)
Programmable functions: Logic / Speed / Windproof / Soft touch / Water hammer
Learning functions: Pause time, delay 2nd leaf on closing

24 Month Warranty
