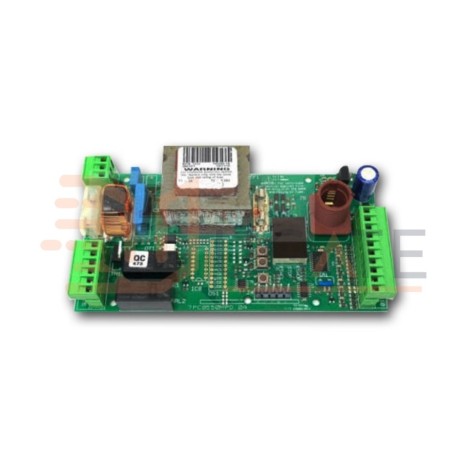

Central Board Equipment Panel for tilting doors GEO 07 230V GENIUS 6100151

Name: Central Board Equipment Panel for tilting doors GEO 07 230V GENIUS 6100151
Brand: GENIUS
SKU: 1658840403116-931
Price: 96.62 EUR
Availability: InStock

Original control unit FAAC GENIUS GEO 07 code 6100151

Description

Product Details

Cod: 1658840403116-931

mpn: GEN-6100151

€96.62

Last items in stock

Lowest price within 30 days before promotion. €96.62

Automation and renovation: the future is at EDIL EXPO ROME 2025!

Posted in: News
29/01/2025

Discover how automated shutters, energy efficiency and renovation bonuses can transform your home or building...
Read more
Is UGATE SHOP a reliable seller? What are customers' opinions?

Posted in: Focus
21/03/2025

In this post we report on the opinions of some of our customers who have been super satisfied with our service and...
Read more

Description
Product Details

GENIUS 6100151

Original control unit FAAC GENIUS GEO 07 code 6100151

Electronic replacement board for actuator for overhead doors Euro Breeze 06 C.

Supply voltage 230Vac

Power supply accessories 24Vdc

Accessory load max. 300mA

Inputs with quick wiring terminal block, encoder management on motor, opening and closing limit switch, courtesy light,

Graft for 5-pin receiver.

Incorporated in Eurobreeze 06 C and Eurobreeze 06 C Lento gearmotors

N.B. For actuators Eurobreeze 06 mandatory encoder with limit switch code 6100162

The receiver is not included with the card.

SPECIFICATIONS:
Supply voltage (Vac): 230 (+6% -10%) 50Hz
Max absorbed power (W): 12
motor load (W): 800
accessory load (mA): 300
Operating Temp (°C): -20 +55
Circuit Protection Fuses: Mains / Accessories
Operating logic: Automatic / semi-automatic
Working time: Programmable from 0 to 59 sec. (default 20 sec.)
Pause time: Programmable from 0 to 4 min. (default 2 min.)
Electronic clutch: Programmable on 50 levels
Limit switch intervention mode: 4 types of operation
Terminal block inputs: Open / Encoder / Opening and closing safety / Opening and closing limit switch 230Vac - 60W
Quick connector: 5-pin radio receiver
Terminal block outputs: Motor / external courtesy lamp 230Vac / Accessory power supply 24Vdc
Max. built-in courtesy lamp load (W): 25
load external courtesy lamps (W): 250

Warranty 24 Months
