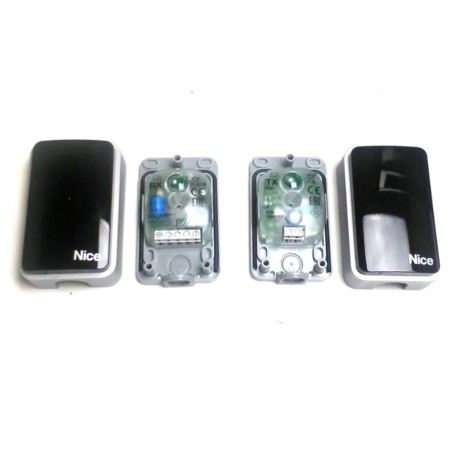

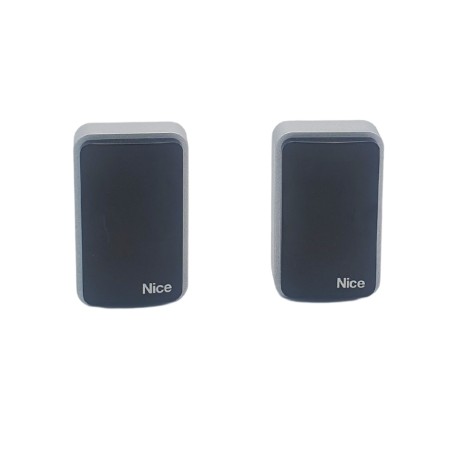

Pair of photocells outdoor wall photocell 24v NICE EPM MOF Original

NICE EPM was Photocell M

EAN 8032595796138

Synchronized Medium photocells, fixed or adjustable, also with BlueBUS NICE technology
Available in burglar-proof, reflective and wireless versions.
Safe: type D device according to EN12453 that allows to detect obstacles present on the optical axis between transmitter (TX) and receiver (RX).
Using the phototest function it is possible to achieve category 2 fault safety according to EN 954-1.
Anti-glare circuit that eliminates possible interference from sunlight.
Quick and easy to install: wireless technology (EPMOW) eliminates the need to wire photocells to the control panel and to prepare passages and channels. The devices interface with the control unit through a dedicated module (IBW), very small, which can be housed directly inside the motor or control unit, if separated. Up to 7 devices equipped with BlueBUS NICE technology can be connected to the same IBW interface.
Retroreflective technology (EPMOR) allows you to wire only the main photocell and not the reflector mirror, saving time.
LED light integrated in the EPMOR version: the optional ELMM LED light module can be installed inside the EPMOR photocell, allowing to illuminate the passage area, to function as a flashing light or for diagnostic signals.
Universal system: EPMOR equipped with a relay output to be connected to any automation system, even existing ones.
Easy maintenance: EPMOW photocells are equipped with a diagnostic LED that indicates any anomalies and battery status, facilitating installation and maintenance operations.
Practical: reception angle 10. The adjustable versions allow to compensate for centering differences of up to 30.
Resistant, also in burglar-proof version: ABS shell resistant to atmospheric agents, also available with metal body.
BlueBUS NICE technology: available with BlueBUS NICE system, which allows easy connection to the control panel of all devices with only two wires,

simply connecting them in parallel and selecting the addressing jumpers depending on the required function.
The system automatically acquires devices connected to the BlueBUS network.
Automatic synchronization between multiple pairs of photocells to avoid other interference between devices.

SPECIFICATIONS:
Estimated Capacity (m): 15 (30 with jumper + "10" cut)
Power supply: without jumper 24 Vac/ Vdc limits: 18-35 Vdc, 15-28 Vac / with jumper 12 Vac/ Vdc limits: 10-18 Vdc, 9-15 Vac
Power consumption (mA): 25 RX, 30 TX
Photocell adjustability: -
Degree of protection (IP): 44
Operating Temp (C Min/Max): -20 / 50
Relay capacity: max 500 mA and 48 V
Dimensions (mm): 50x29x80 h
Weight (g): 140

Warranty 24 Months
