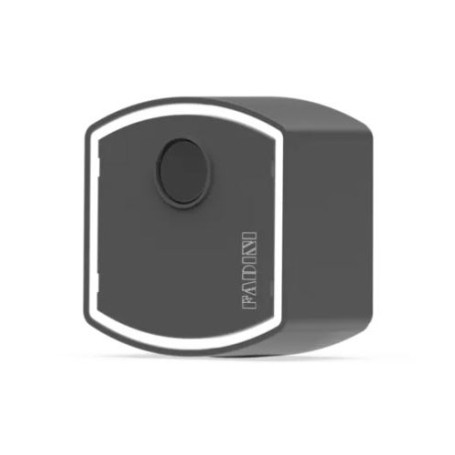

Pair of FADINI ZERO wall-synchronized photocells. PH 160L
Lowest price within 30 days before promotion. €70.95
Fast delivery
We ship available products within 24/48 hours
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Automation and renovation: the future is at EDIL EXPO ROME 2025!
Discover how automated shutters, energy efficiency and renovation bonuses can transform your home or building...Read more
FADINI
Item Number: 160L
MOD.: ZERO. PH
GENERAL DESCRIPTION ZERO SERIES. PH:
A DESIGN CAPABLE OF ILLUMINATING
Safety device with modulated infrared light type D, according to EN 12453 with a receiver and a transmitter. The electronic components and optics are protected inside a hermetic plastic shell. White led light frame.
EASY TO INSTALL
Dimensions and limited spaces: minimum protrusion of 18 mm from the wall in the recessed version. ABS shell with high resistance to atmospheric agents. Complete line of balusters and supports for fixing.
SURE
Range 20 m. Relay output to be connected to any ELPRO series control programmer or to an existing system. Supply voltage 24 Vac/dc.
SPECIFICATIONS:
Modulated light frequency (Hz): 625/320
Supply voltage (Vac/dc): 12/24
Max transmitter absorption (mA): 26
Max receiver absorption (mA): 36
Operating temperature (°C): -20 ÷ +70
Output contact (Vdc, A/Vac, A): 30, 1/125, 0.3
Capacity (m): 20
Contact Survey Time (ms): 6
IP rating: 55
