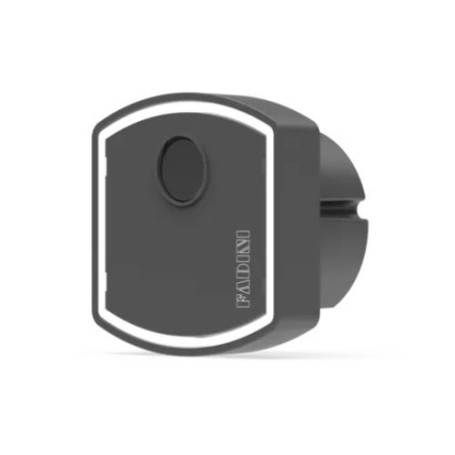

Pair of synchronized recessed photocells FADINI ZERO. PH 161L
Lowest price within 30 days before promotion. €70.95
Fast delivery
Available material shipped within 2-3 days
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...Read more -
Single photocell that replaces all traditional photocells and reflexes
Thanks to ToF laser technology, OPTIGATE can replace any pair of photocells and reflex photocells, operating...Read more
-
Summer Break ugateshop.it: what to know about shipping, support, and discounts
We’re also taking a short break in August, but our shop remains online at all times. In this article, you’ll find all...Read more
FADINI
Item Number: 161L
MOD.: ZERO. PH
GENERAL DESCRIPTION ZERO SERIES. PH:
A DESIGN CAPABLE OF ILLUMINATING
Safety device with modulated infrared light type D, according to EN 12453 with a receiver and a transmitter. The electronic components and optics are protected inside a hermetic plastic shell. White led light frame.
EASY TO INSTALL
Dimensions and limited spaces: minimum protrusion of 18 mm from the wall in the recessed version. ABS shell with high resistance to atmospheric agents. Complete line of balusters and supports for fixing.
SURE
Range 20 m. Relay output to be connected to any ELPRO series control programmer or to an existing system. Supply voltage 24 Vac/dc.
SPECIFICATIONS:
Modulated light frequency (Hz): 625/320
Supply voltage (Vac/dc): 12/24
Max transmitter absorption (mA): 26
Max receiver absorption (mA): 36
Operating temperature (°C): -20 ÷ +70
Output contact (Vdc, A/Vac, A): 30, 1/125, 0.3
Capacity (m): 20
Contact Survey Time (ms): 6
IP rating: 55
Item Number: 161L
MOD.: ZERO. PH
GENERAL DESCRIPTION ZERO SERIES. PH:
A DESIGN CAPABLE OF ILLUMINATING
Safety device with modulated infrared light type D, according to EN 12453 with a receiver and a transmitter. The electronic components and optics are protected inside a hermetic plastic shell. White led light frame.
EASY TO INSTALL
Dimensions and limited spaces: minimum protrusion of 18 mm from the wall in the recessed version. ABS shell with high resistance to atmospheric agents. Complete line of balusters and supports for fixing.
SURE
Range 20 m. Relay output to be connected to any ELPRO series control programmer or to an existing system. Supply voltage 24 Vac/dc.
SPECIFICATIONS:
Modulated light frequency (Hz): 625/320
Supply voltage (Vac/dc): 12/24
Max transmitter absorption (mA): 26
Max receiver absorption (mA): 36
Operating temperature (°C): -20 ÷ +70
Output contact (Vdc, A/Vac, A): 30, 1/125, 0.3
Capacity (m): 20
Contact Survey Time (ms): 6
IP rating: 55
