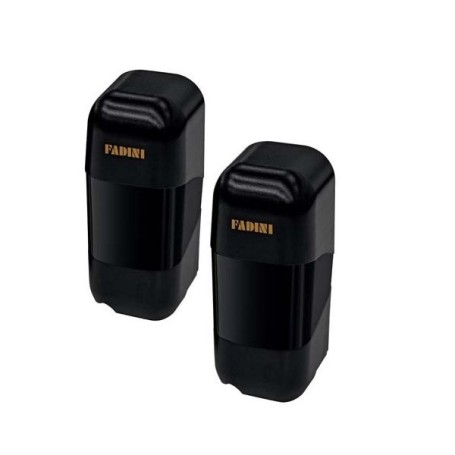

Pair of wall photocells FADINI ORBITA 57 570L
Lowest price within 30 days before promotion. €67.33
Fast delivery
We ship available products within 24/48 hours
Secure payment
Verified payment systems
Collection points
+30,000 collection points in Italy
Product guarantee
Direct guarantee from our store
Return guaranteed
14 days for returns
Related articles
-
Automation and renovation: the future is at EDIL EXPO ROME 2025!
Discover how automated shutters, energy efficiency and renovation bonuses can transform your home or building...Read more -
Is UGATE SHOP a reliable seller? What are customers' opinions?
In this post we report on the opinions of some of our customers who have been super satisfied with our service and...Read more
FADINI
Item Number: 570L
MOD.: ORBIT 57
PRODUCT DESCRIPTION FADINI 570L:
ADJUSTABLE AND SYNCHRONIZED PHOTOCELL, WALL MOUNTED
Safety device with modulated infrared light type D according to EN 12453, with a receiver and a transmitter (wireless)
IDEAL
Multiple solutions in a single photocell: adjustable with rotation up to 200°, wireless and synchronized. ABS shell with high resistance to atmospheric agents. Practical and quick to install.
SYNCHRONIZED
Possibility to install up to 7 pairs of photocells to create a protective barrier, without interference. It can be combined with a sensitive edge to achieve the level of safety required by EN 12453.
SURE
Range 15 m, 6 m with battery. Relay output to be connected to any ELPRO series control programmer or existing system. Supply voltage 12 or 24 Vac/dc or 2 x 1.5 V AAA batteries.
SPECIFICATIONS:
Supply voltage (Vac/dc): 2x1,5 AAA - 12/24
TX absorption (mA - μA): 11 - 55 (battery-operated)
Absorption RX (mA): 16
IP rating: 55
Operating temperature (°C): -20 ÷ +80
Capacity (m): 6 (battery-operated) - 15
Max rotation: 200°
Output contact (A/Vac - VA): 1/125 - 60
Battery life (years): approx. 2
Recommended cable cross-section (mm²): less than 0.5
