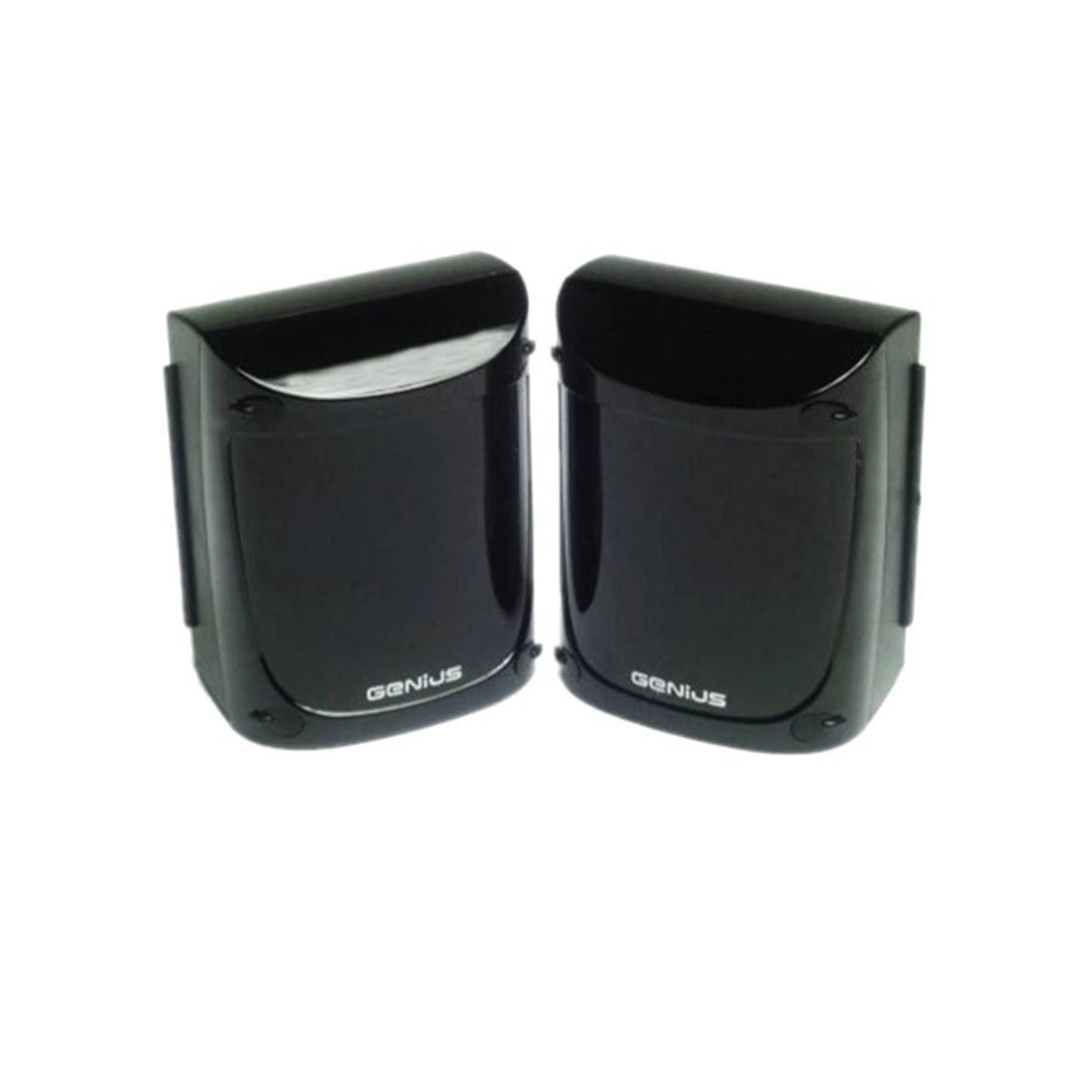

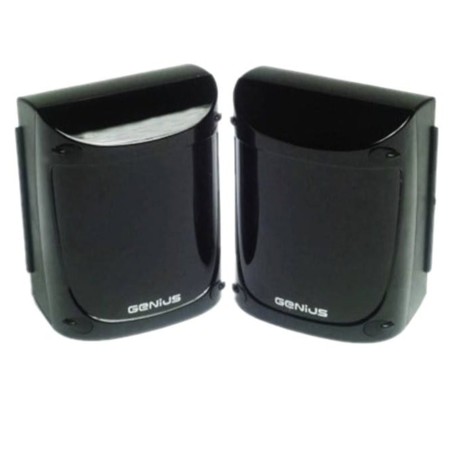

FAAC GENIUS photocells JA310 – Pair of adjustable outdoor photocells 24Vdc 30m

The FAAC GENIUS JA310 photocells represent a professional and reliable solution for the security of automatic gates, sliding or up-and-over doors.
Thanks to the modulated infrared alignment with a nominal range of 30 meters, they guarantee maximum precision even in installations over long distances or in outdoor environments subject to light interference.

The swivel design with ±4° detection angle facilitates alignment between transmitter and receiver, reducing installation time. In addition, the photocell body covers the housing of older recessed versions, making it possible to replace them directly and cleanly without structural interventions.

The product fully complies with the European regulations EN12453 – Type D, Category 3, ensuring high safety standards and compatibility with the main FAAC and GENIUS systems.

Specifications

• Model: GENIUS JA310

• Type: Pair of adjustable photocells for outdoor use

• Power supply: 24Vdc (range 19–35Vdc)

• Absorption: TX 20mA – RX 30mA

• Nominal range: 30 meters

• Detection angle: ±4°

• Output Contacts: NO/NC

• Conformity: EN12453 – Type D, Category 3

• Installation: outdoor, also in place of recessed photocells

Recommended Applications:
FAAC, GENIUS and compatible automations for sliding gates, swing gates, sectional and up-and-over doors.
