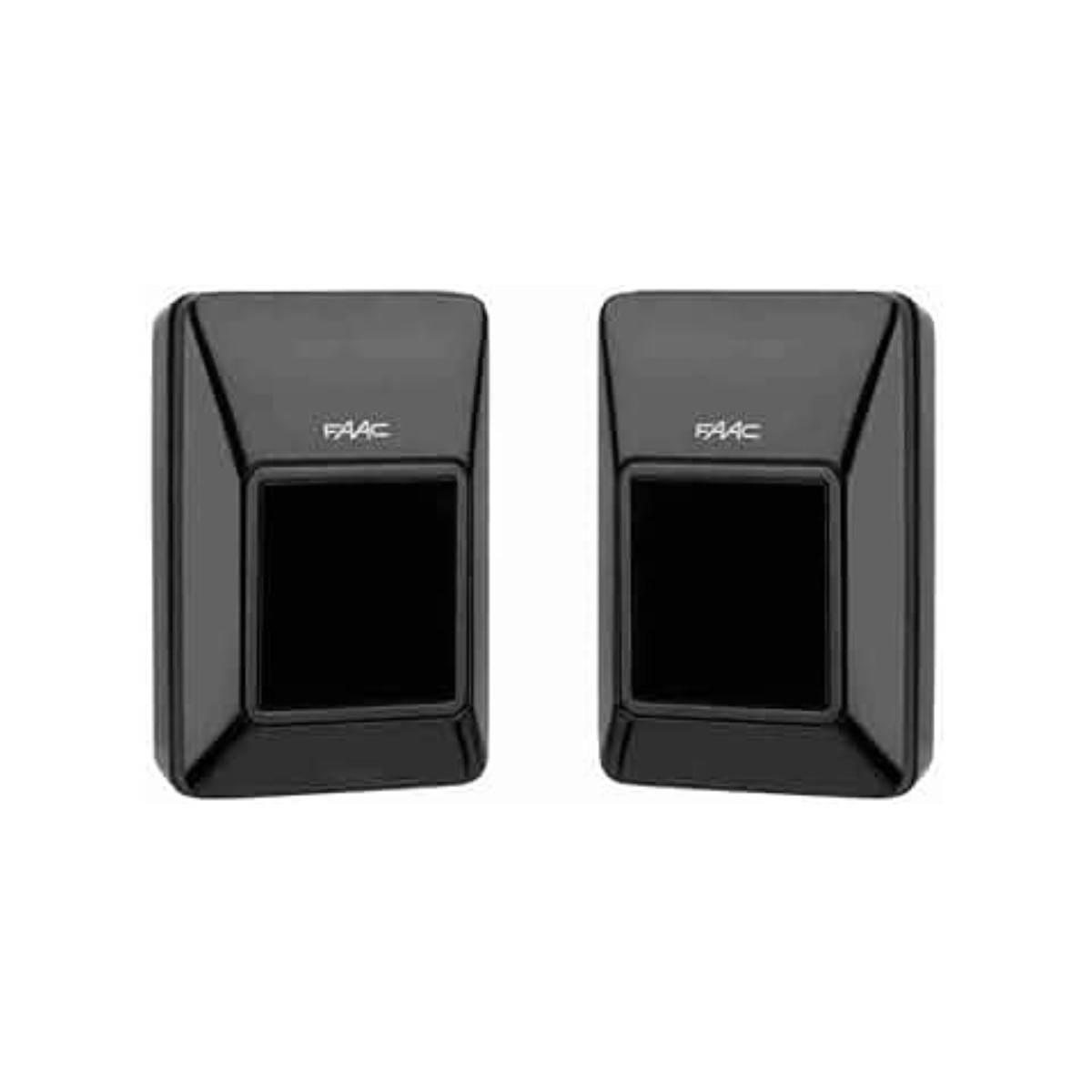

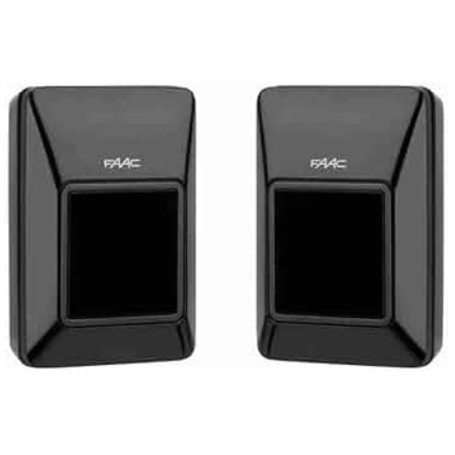

FAAC 785105 – Pair of self-aligning XP 30 photocells 24V 30m IP54

The FAAC XP 30 photocells (code 785105) are designed to offer maximum precision and ease of installation in gate and door automation systems.
Thanks to the automatic self-alignment, setup is quick and easy even in difficult mounting conditions or over long distances.

The compact design and the aluminium anchoring base guarantee stability, robustness and durability, even in outdoor environments subject to vibrations or thermal variations.
The maximum range of 30 meters and the double NO/NC contact ensure compatibility with most FAAC control panels and other brands.

The system complies with European safety requirements and ensures reliable operation from -20°C to +55°C, with IP54 protection against dust and moisture.
Ideal for installation on swing, sliding or up-and-over gates, the XP 30 are the professional choice for those looking for precision, efficiency and speed of assembly.

Specifications

• Model: XP 30

• Product code: 785105

• EAN: 8055195012408

• Brand: FAAC

• Device Type: Pair of self-aligning photocells

• Supply voltage: 24V DC / 24V AC

• Absorption: TX 20 mA – RX 30 mA

• Maximum range: 30 meters

• Type of installation: wall or column

• Fixing base: aluminum

• Alignment: Automatic

• Self-aligning angle: ±7° (20 m) / ±13.5° (5 m)

• Output Contacts: Relay N.C. / N.O.

• Contact capacity: 60 VA / 24 W

• Degree of protection: IP54

• Operating temperature: -20°C ÷ +55°C

• Dimensions (W × D × H): 55.4 × 21.5 × 78.4 mm

Strengths

• Automatic self-alignment for easy installation

• Sturdy construction with aluminum base

• High range of 30 meters

• Universal compatibility with FAAC power plants and other brands

• IP54 protection against dust and moisture

• Stable operation even in harsh weather conditions

Recommended Applications:
FAAC or compatible automations for swing, sliding, up-and-over gates, barriers and automatic doors.
