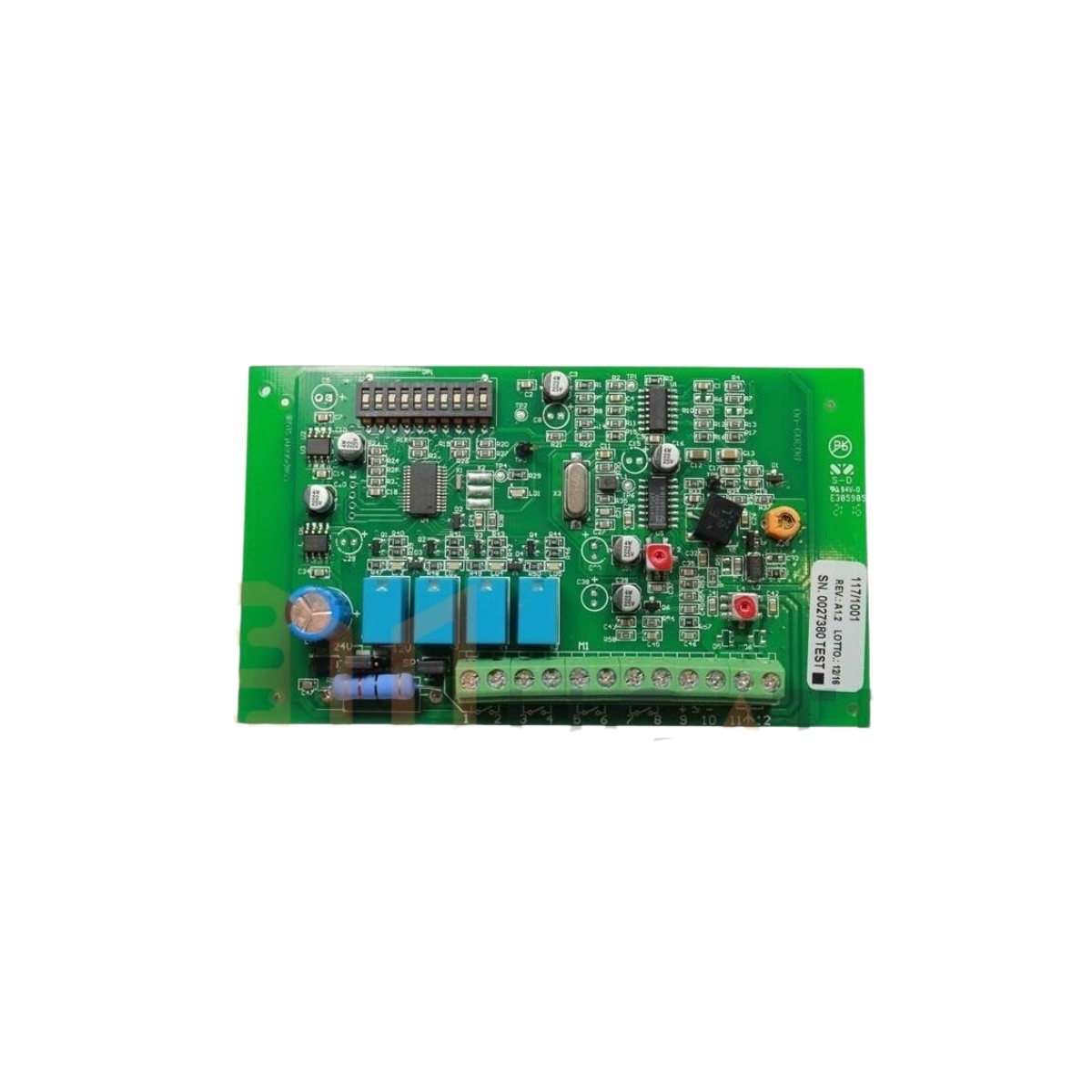

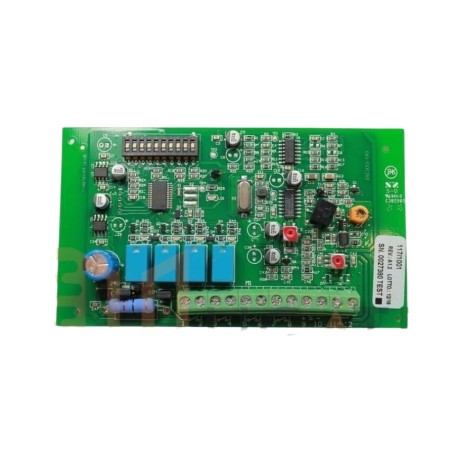

4-CHANNEL QUARTZ APRIMATIC RG 30,900 MHZ RADIO RECEIVER
Four-channel quartz radio receiver 30.900 Mhz
- Supplied without pvc container
- Four onboard relays and programming with 10-position/3-way dip-swich
Aperio APRIMATIC RG 30,900 MHz radio card and compatible with ex aprimatic modular RG.
This version has all 4 four channels active and is compatible with all obsolete remote controls,
APRIMATIC tg2m, tg4m, tg1v, tg2v, aperio td304.
The code setting is done by selecting the 9 trinary dip switches (+ 0 -) (the 10th on the board is null).
Power supply 12/24 Volt, output 4 channels with relay contact normally open, closes with the pulse of the remote control.
The radio card is supplied without a container.
- Channels
- 4
- Frequency
- 30.90 MHz
- Model
- Terminals
- Supply voltage
- 12V ac/dc
