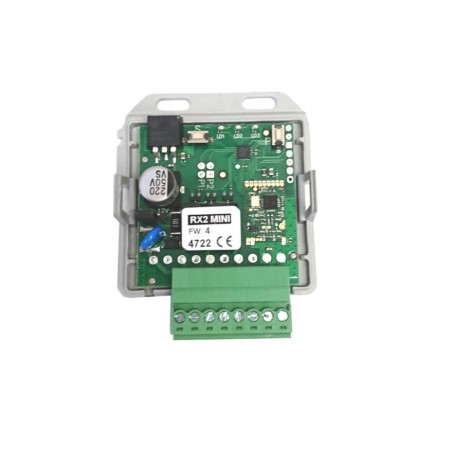

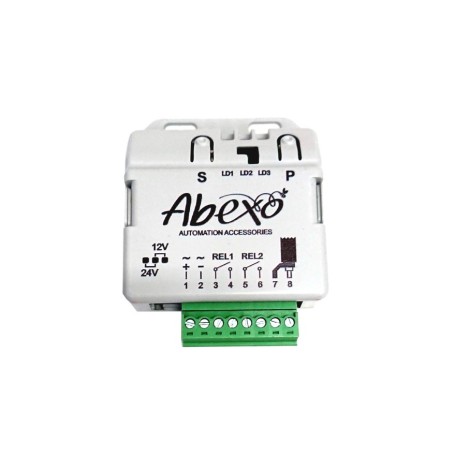

This universal receiver allows extreme versatility in new and existing installations by storing in a single receiver, remote controls of different origins, with fixed codes and rolling.
The universal receiver thus allows, in most cases, to unify installations or replace non-functioning receivers without replacing existing remote controls and therefore ensuring better continuity of service and less inconvenience for users.
Each channel of the receiver can be configured in one of three possible modes:
Impulsive: the relay remains active as long as the remote control button is pressed.
Step-by-step: one press of the remote control button excites the relay, a second press de-energizes it.
Timer: when the remote control button is pressed, the relay becomes excited and de-energized after a selectable time (up to a maximum of 120 minutes).
SPECIFICATIONS:
- 2 Channels (NO outputs) Power supply
- from 12 VAC to 24 VAC
- 12 VDC to 24 VDC Contact rel
- n.1: 2A?120VAC / 2A?24 VDC
- n.1: 5A?250VAC / 5A?30VDC
- Rolling codes storable: 200
- Channels
- 2
- Frequency
- 433 MHz
868 MHz
NO EU - Model
- Terminals
- Supply voltage
- 12V ac/dc
24V ac/dc
