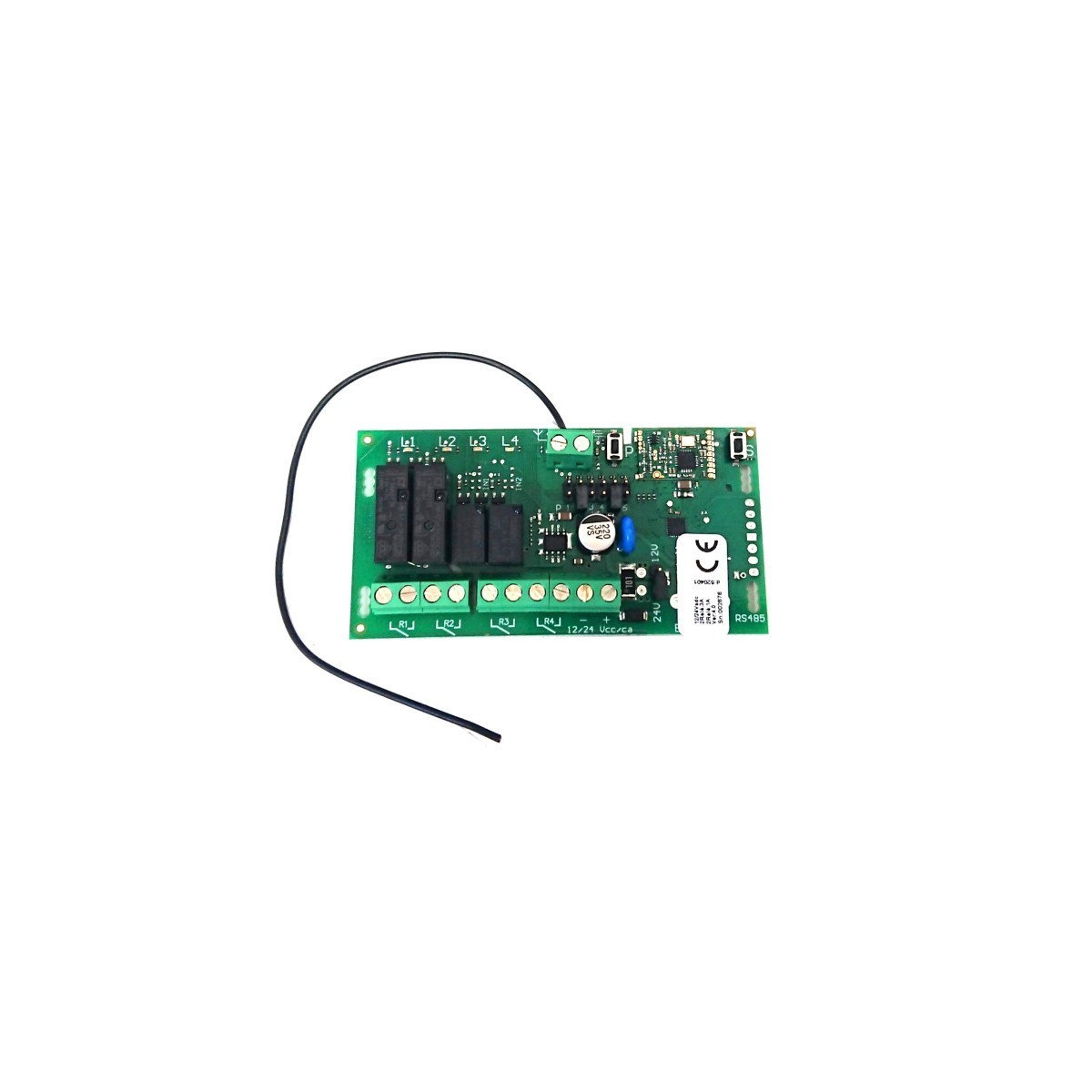

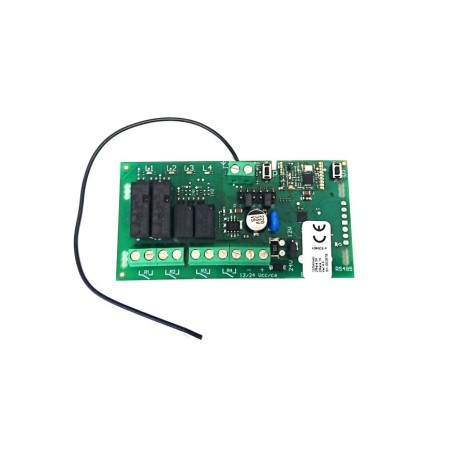

UNI-RXO-4-PCB Universal multi-frequency receiver 4 channels for fixed and rolling codes

Universal receiver card unique in the world. It is able to receive fixed code, rolling-code, hopping code radio controls with frequencies 433/868 MHz like the originals. This means that for all remote controls that have a secret code such as BFT, FAAC this receiver can learn them like the original receivers. With this system, false positives are avoided, i.e. any other signals that can trigger the relay.

Normally, universal receivers learn rolling-codes only with regard to the fixed part. With our UNI-RXO-4-PCB you will program the XT SLH series of the FAAC, the MITTO of the BFT as if they were programmed on the universal receiver.

In addition, this receiver board can be powered by 12 or 24 Vac/dc and is therefore compatible with 99% of the automations on the market. Very useful when you need to retrieve several remote controls from a condominium or a company where there are many users.

So with a single product you can replace dozens of recipients. In this regard, below we make the list of recipients who are fully compatible with this sheet:

FAAC

• XR4 433 C (code 787753 Ex 787748)
• XR4 433 868 (code 787024)

GENIUS

• INTERMODE 4 868 (code 6100361)

GIBIDI

• DRS 4334 (code AU02810)

SPECIFICATIONS:

- 4 Channels (NO outputs) Power supply
- 12 VAC to 24 VAC
- 12 VDC to 24 VDC Rel Contacts
- n.2: 1A?30 VDC
- n.2: 5A?250 VAC / 5A?30 VDC
- Storable Rolling Codes: 200
