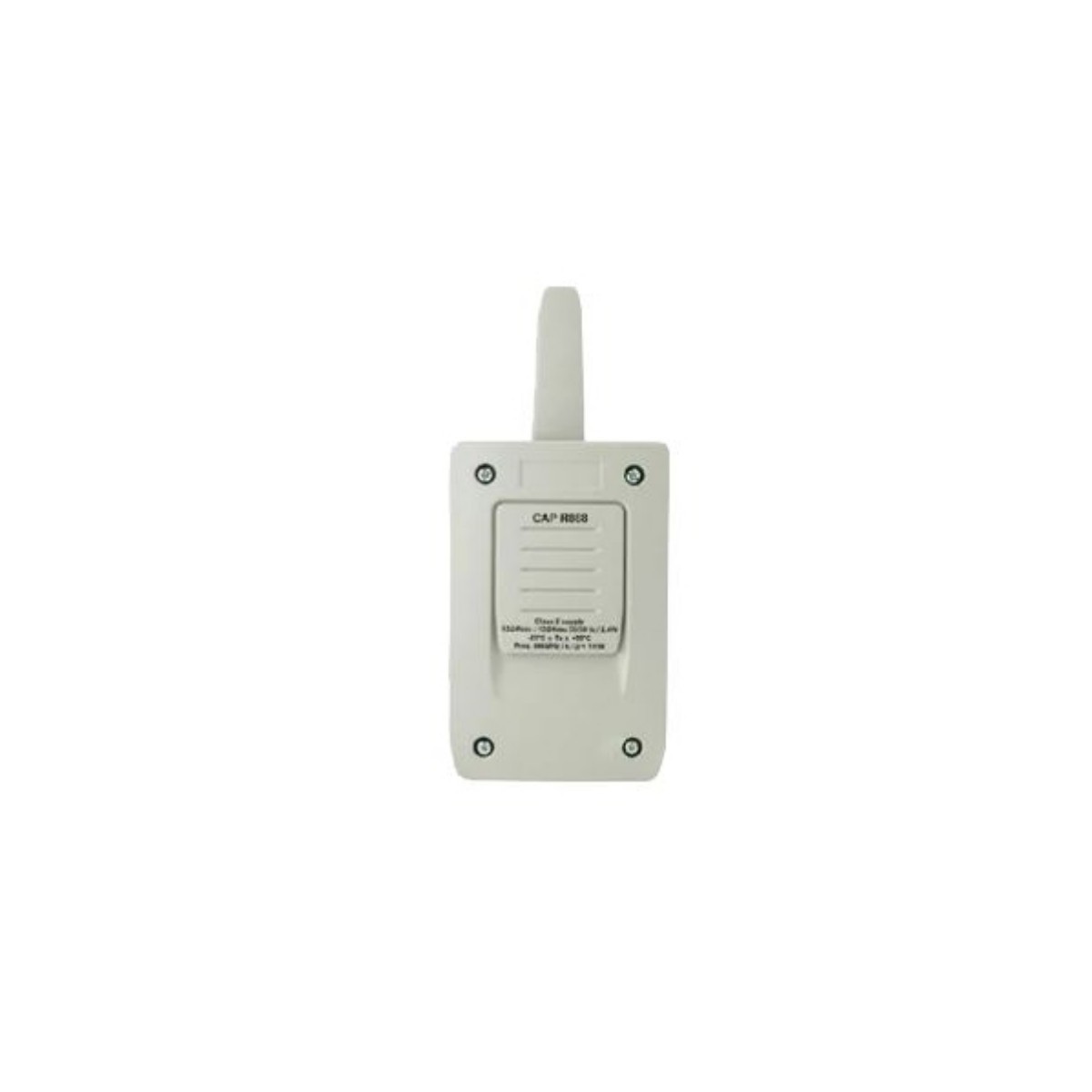

CAP R868 Receiver: The Heart of Your NoTouch Security System

Key features:

• Versatility: Compatible with a wide range of safety edges, both resistive and mechanical or optical.
• Reliability: Thanks to its nominal range of 50 meters, it ensures stable and secure communication between system components.
• Capacity: It stores up to 6 different transmitters, offering flexibility and adaptability to different configurations.
• Efficiency: Equipped with 2 relays, it allows you to manage multiple functions and easily integrate with other systems.
• Robustness: The IP54 protection class (IP65 with stuffing box) makes it weatherproof and suitable for outdoor installation.
• Performance: It operates in a wide range of temperatures, from -20°C to +55°C, ensuring optimal operation in all weather conditions.

How does that work

The CAP R868 receiver receives signals from the inhibitory magnets installed on the gate rack and from the security edge. Based on the information received, it activates or deactivates the CrashLess function, allowing the gate to stop safely in the event of obstacles.

Advantages

• Safety: Protects people and property from accidents thanks to the CrashLess function.
• Reliability: It guarantees precise and long-lasting operation.
• Versatility: It adapts to different types of gates and automation systems.
• Ease of installation: Thanks to its compact size and user-friendly design, it can be easily installed.

Technical Specifications

• Model: ZIP Code R868
• Type: Receiver for safety edges
• Range: 50 m
• Memory: 6 transmitters (1 NOTOUCH and 5 Standard)
• Outputs: 2 relays
• Power supply: 12/24Vac/dc 10%
• Degree of protection: IP54 (IP65 with stuffing box)
• Operating temperature: -20°C to +55°C
• Dimensions: 82x190x40 mm

Conclusion

The CAP R868 receiver is the beating heart of your NoTouch security system. Thanks to its advanced technical features and reliability, it guarantees maximum protection for your automatic gate.
