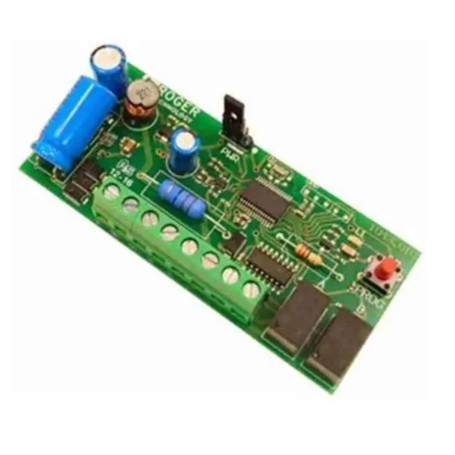

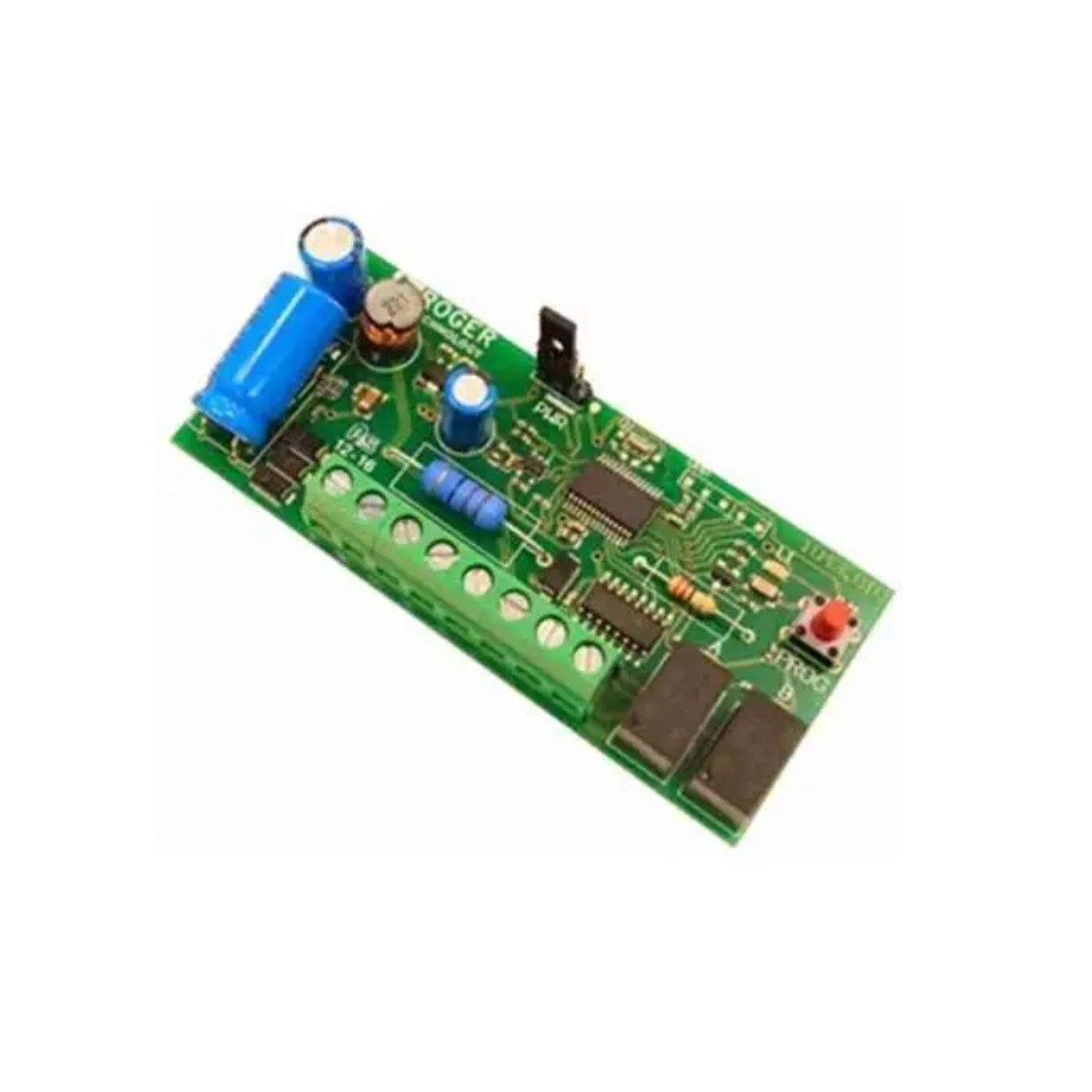

DEC-H85-TDS/TTD – Decoder board for H85/TDS – H85/TTD keypad selectors (2 channels)

The DEC-H85-TDS/TTD decoder board is designed to interface with the H85/TDS and H85/TTD keypad switches, providing a robust, accurate, dual-channel code management system. Thanks to its compatibility with 24V AC/DC power supply and the plastic housing with IP54 protection, the decoder guarantees reliability both indoors and outdoors.

It supports up to 500 user codes, configurable from 3 to 6 digits, and allows the connection of two keypads at the same time. The two pure contact relay outputs operate in deadman mode, keeping the control active until the button is released: a perfect solution for gates, automatic doors, industrial gates and controlled access systems.

The device has a low power consumption and high installation flexibility, with wiring up to 100 meters distance between the keypad and the decoder.

Technical features

• Power supply: 24V AC/DC

• Power consumption: 40mA (keypad + decoder) – 50mA with active relay

• Operating temperature: -20°C / +55°C

• Degree of protection: IP54

• Storable user codes: 500

• Code length: 3–6 digits

• Maximum number of keypads that can be connected: 2

• Number of outputs: 2 control outputs

• Output Type: Dry Contact Relay

• Activation: man present

• Maximum switchable power: 60VA / 24W

• Relay activation delay: 100 ms

• Maximum keyboard-set-top box cable length: 100 m (2 conductors, 0.5 mm²)

Dimensions and packaging

• Sizes: 126 × 52 × 25 mm

• Packed weight: 0.2 kg

• Quantity per box/pallet: 1 pc
